Specification and Downloads
- Package includes galvanized steel grate, channel, grating fasteners
- 2 end caps will be included for free with entire order
- 6" internal width galvanized steel stamped grate
- Channel depth - 8"
- PVC or corrugated pipe connections available: 4" and 6" on the bottom and 4" on end caps
- Channels connect end to end to create a line
- Each channel has 90 degree connection available (no adapters)
- Pedestrian load rated

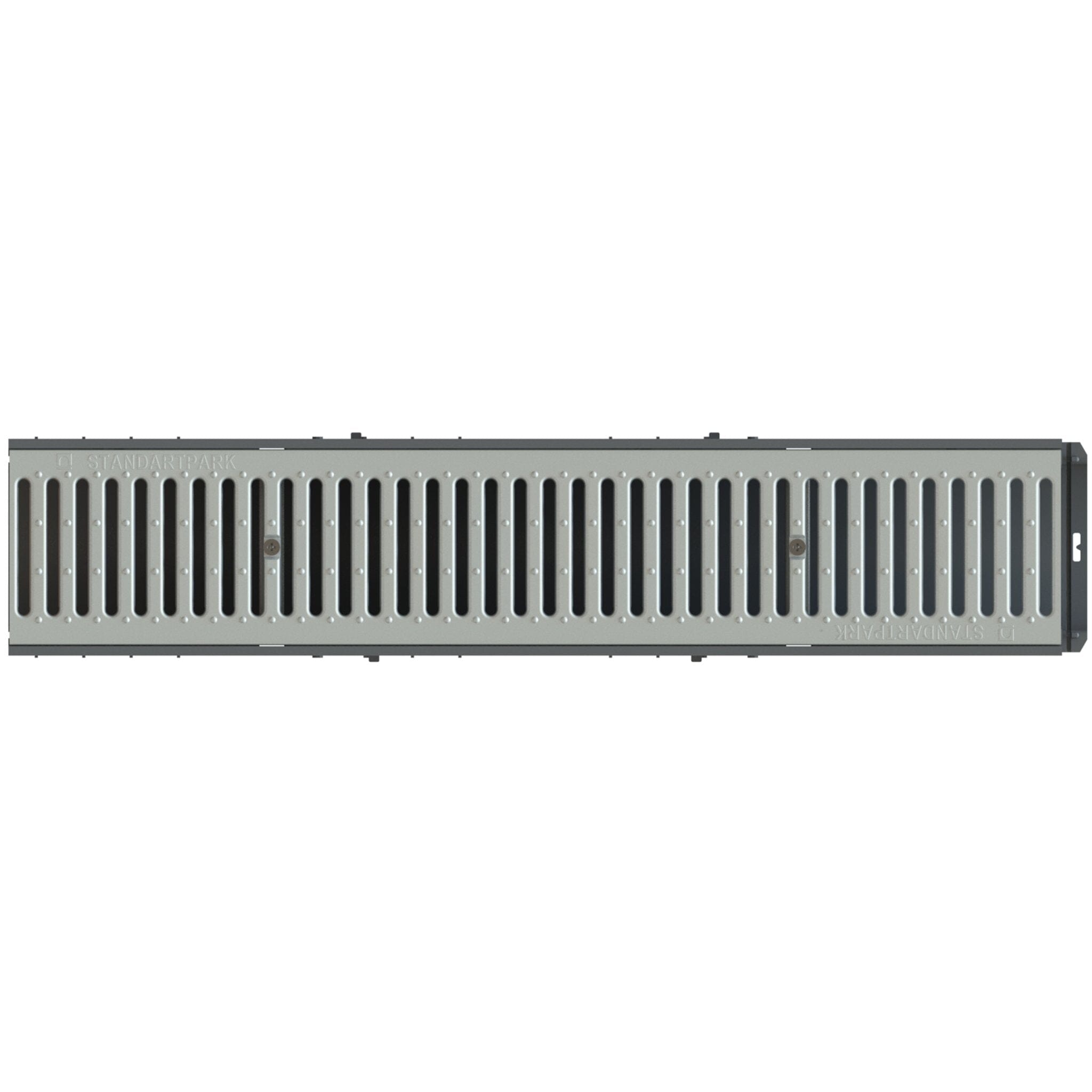

Vodaland’s 6” Base plastic trench drain has a 6” internal width (8” external), and a 3.28ft (1 meter) length with an 8” depth. This trench drain comes with a A-class galvanized steel grate. The A load class is designed to withstand pedestrian traffic. The plastic channels connect easily into one another to form the customer’s desired length of run. Each channel features a 90-degree connection option so that the system can turn at corners. 1 channel, 1 grate, 2 fasteners, and 2 screws are included in each unit purchased. 2 end caps are included for free with the entire order. Common applications: patios, walkways, workspace floors, showers, public facilities, recreation centers.
Article ................ 8240GG
Material ............. PPE Plastic / Galvanized Steel
Dimensions ....... 39.4"L x 8.3"W x 8"H
Load Class ....... A - Pedestrian loads
INCLUDED IN PACKAGE
1 - Channel
2 - Galvanized steel grate
2 - Grating fasteners
2 - End caps PER ORDER*
* extra and caps at checkout
