Specification and Downloads
- 12x12 Base plastic catch basin
- Plastic grate
- Equipped with debris basket for sediment removal
- Multiple outlets available on all sides (2", 3", 4" and 6")
- ADA compliant options
- Pedestrian load rated
- More details below
Product Description

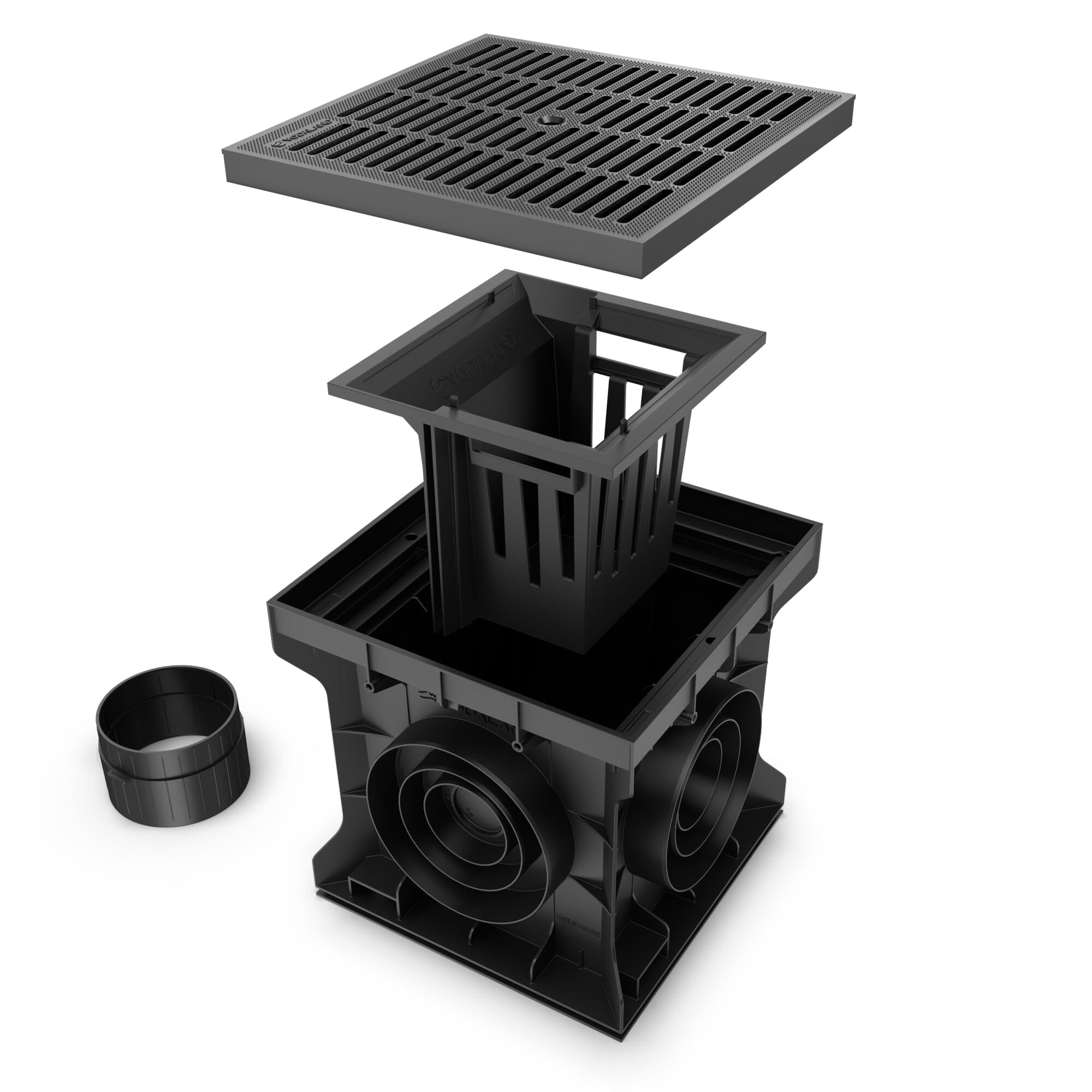

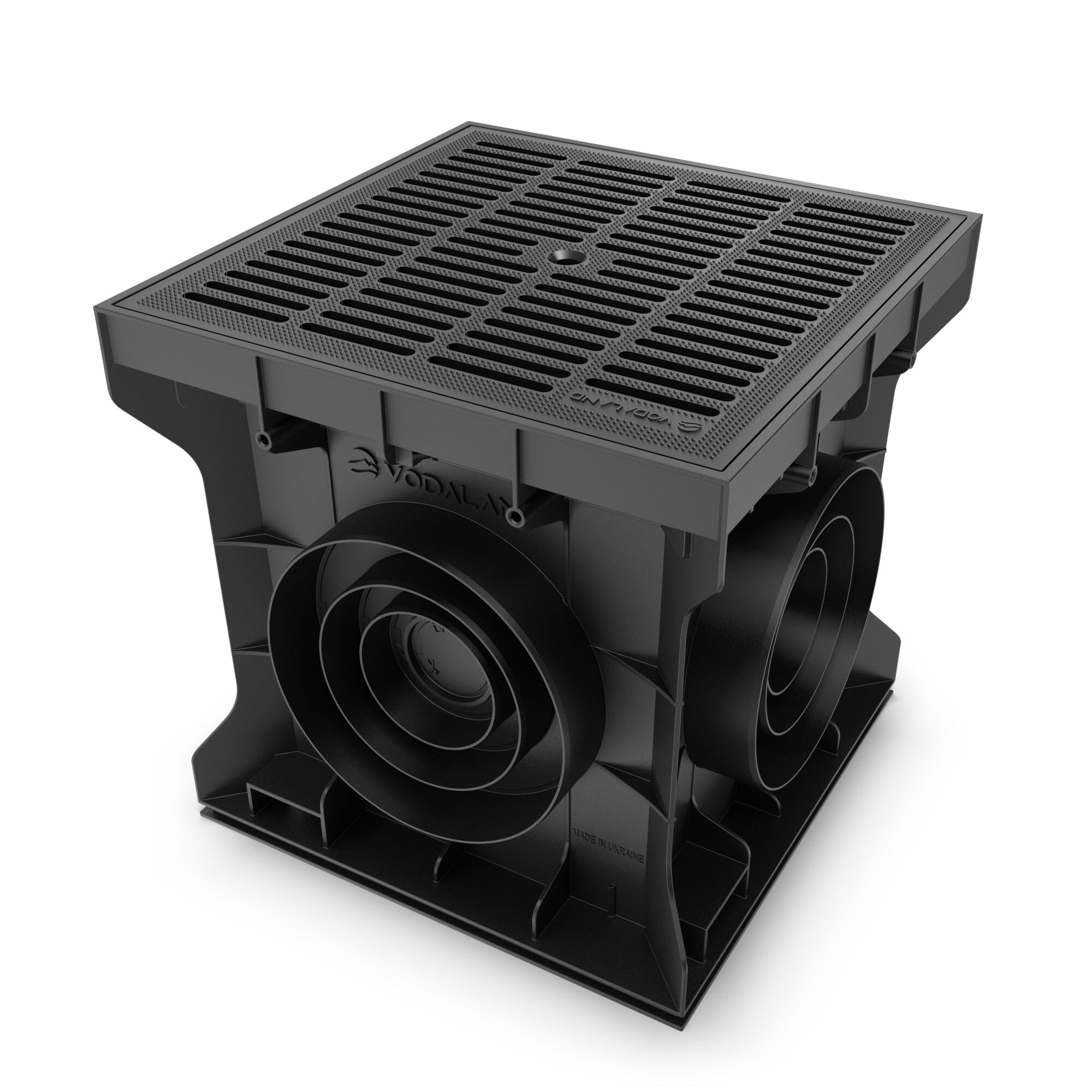

Vodaland's 12x12 BASE plastic catch basin is a square basin with a 12" width, length, and height. This catch basin comes with an A-class plastic grate with a mesh design. The A load class is designed to withstand pedestrian traffic. This basin can be connected to our 4” Base plastic trench drain when used with a riser, and has pipe connection outlets in diameters of 2”, 3”, 4”, and 6” on all four sides. Each basin features an internal debris basket and partition panels so that all debris and sediment is separated from the liquid being discharged. Common applications include: lawns, pools, public facilities, and any pedestrian traffic areas.
PARAMETERS
Article ................................ 8370.9PG
Material ............................. PPE Plastic
Dimensions ....................... 12" L x 12" W x 12" H
Load Class ....................... A - Pedestrian Load
INCLUDED IN PACKAGE
1 - Plastic Catch Basin
1 - Plastic Grating
1 - Debris Basket
2 - Partitions
