Specification and Downloads
- Compatible with all our 8" Base plastic trench drains
- Fits our 8" Base grates (High-edge grates not compatible)
- 21-5/8" depth
- Equipped with debris basket for sediment removal
- Multiple outlets available on all sides
- Grates must be purchased separately
Product Description

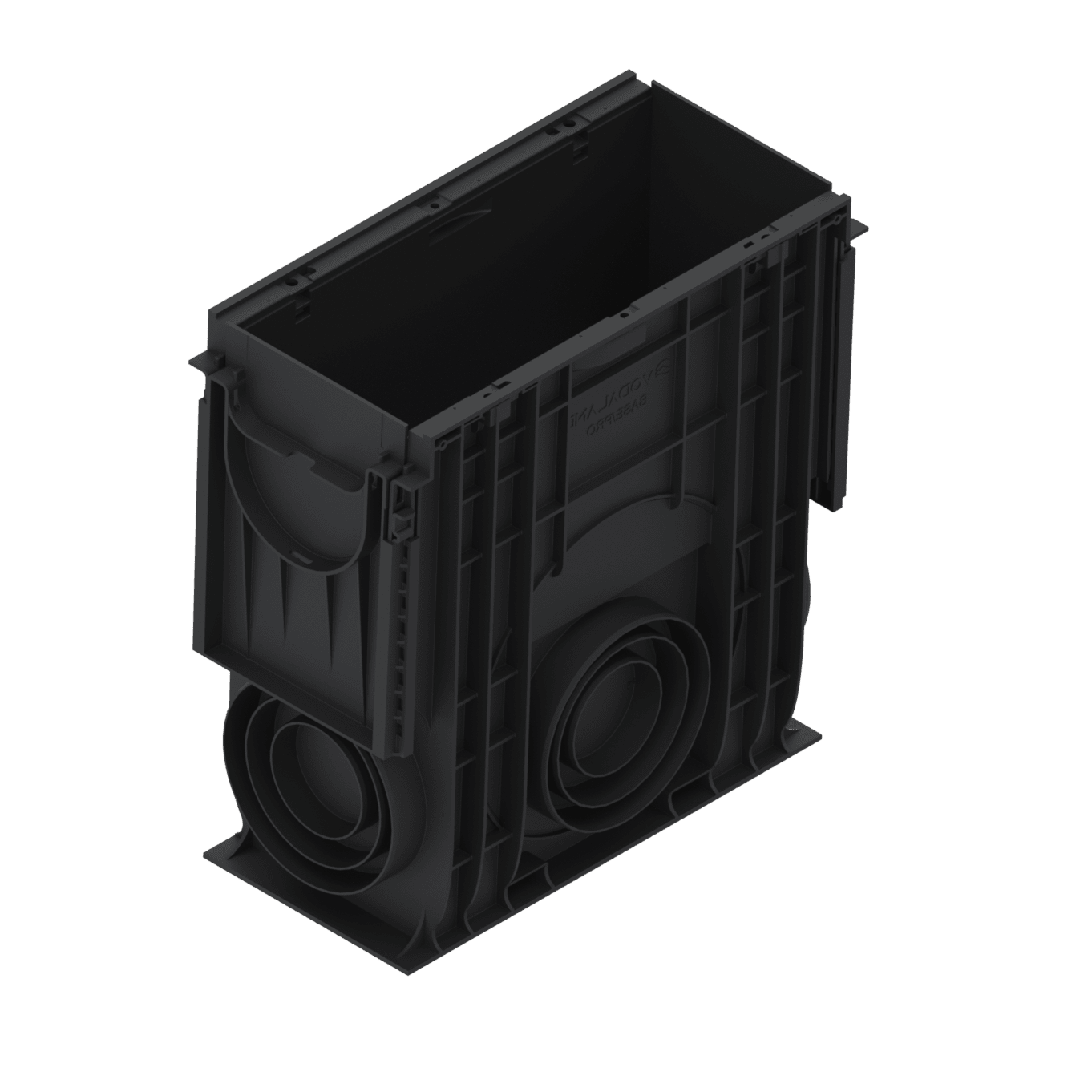

Vodaland’s 8” Base plastic sand trap has a 8” internal width (10-1/8” external), 21-5/8” depth, and a 1.64ft (0.5 meter) length. The sand trap comes without a grate, and one must be purchased separately. This sand trap can hold any of the 8” Base trench drain grates, and will follow whichever load class the grate it holds follows. Each trap has cut-out templates on each side to allow connection with 6”, and 8” Base trench drains. Also allows for connection with 4”, 6”, 8” and 12” piping. Common applications: backyards, driveways, public facilities, commercial applications, etc.
Article ............................ 8580182.9
Material ........................ Plastic
Dimensions ................. 19-5/8" L x 10-1/8" W x 21-5/8" H
Load Class ................. A-C (depends on grating choice)
