    Sku: 994001
    Free shipping on orders over $299
    Pick Up Option Available
    Delivery 3-5 business days

    Specification and Downloads

    • 2-3/8" (60mm) width mini slot drain
    • 5/8" (17mm) opening width
    • 3-7/8" (100mm) total height of slot drain and channel
    • Stainless steel provides chemical and corrosion resistance
    • ADA / Heel Proof compliant cover available (optional at checkout)
    • Use: pools, patios, balconies, & decks

    Product Description

    Our mini slot channel is made of stainless steel and has a standard length of 3.28 feet. The slot and channel come as one unit with an approximate height of 4". The size of slot opening is 5/8" and has the option for ADA/Heel proof compliant cover that is removable even after installation. Application: designed for pools and patios but can be used in any application where a smaller slot drain is needed. Perfect for use with concrete pours, stone, paver, or tile.



    CHANNEL ACCESSORIES

    Channels come standalone with no accessories but there are several additional options to include to build your system:

    • Slot basins (straight through or 90-degree)
    • Channel connector (channels do not connect independently and will need a connector to form a system)
    • 90 Degree adapter channel (grate option available for adapter channel)
    • End-caps (closed or with outlet)
    • Removable slot cover grates (ADA/Heel Proof available)
    • Installation brackets
    • Cleaning tool

    PARAMETERS

    Article ................ 994001

    Length ............... 39-3/8 inch (1 m)

    Material ............. Stainless Steel

    Load Class ....... A-C (Pedestrian & Vehicle Loads)



    Installation Videos

    Products that work with this

    Mini slot channel connector

    Mini slot 90-degree adapter channel

    Mini slot T-type adapter channel

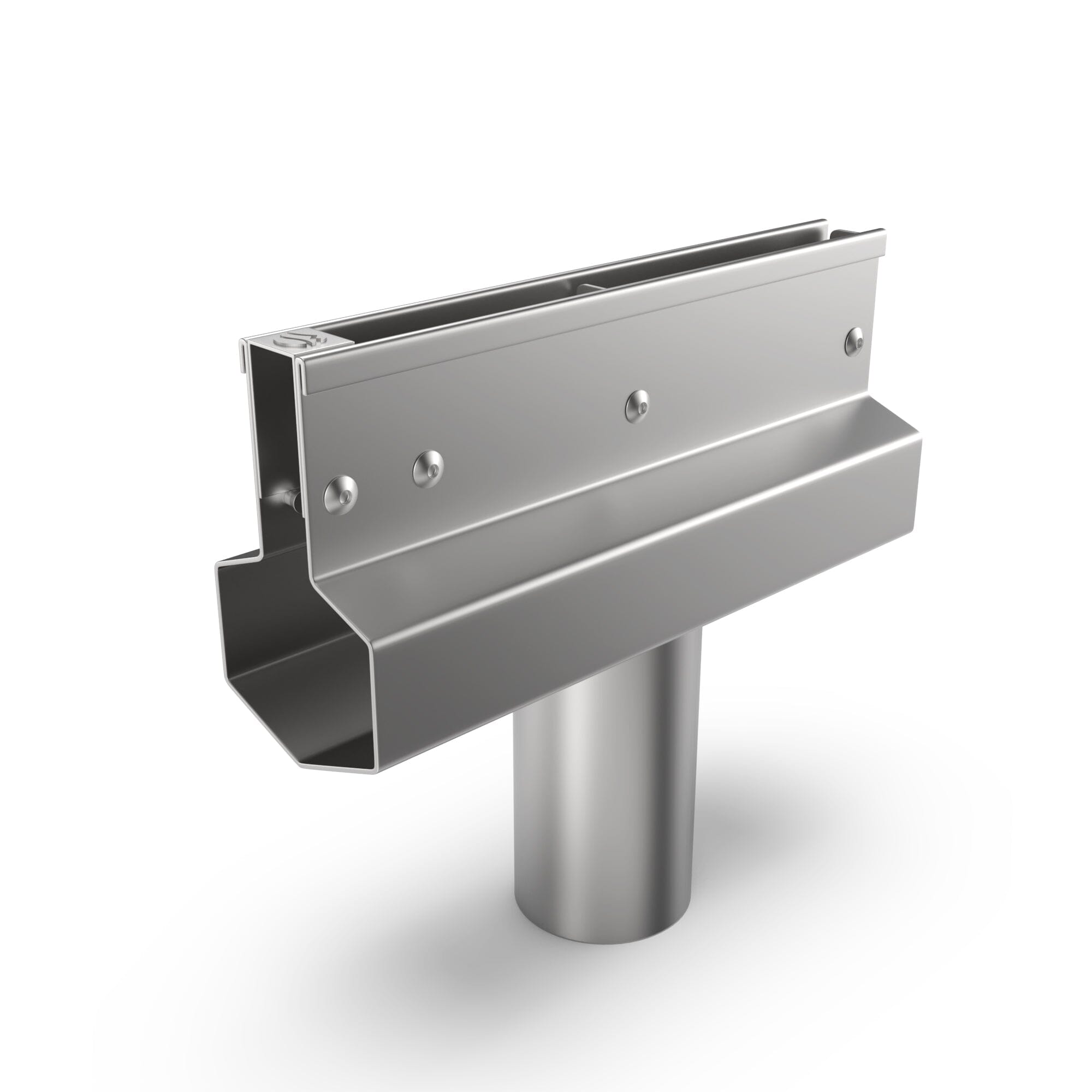

    Mini slot bottom outlet channel

    Mini slot basin - straight through w/ outlet

    Mini slot basin - 90 degree w/ outlet

    Mini slot basin - 3-way w/ outlet

    Mini slot basin - 1-way w/ outlet

    Mini slot end cap

    Mini slot end cap w/ a 2 inch outlet

    Mini slot removable grate

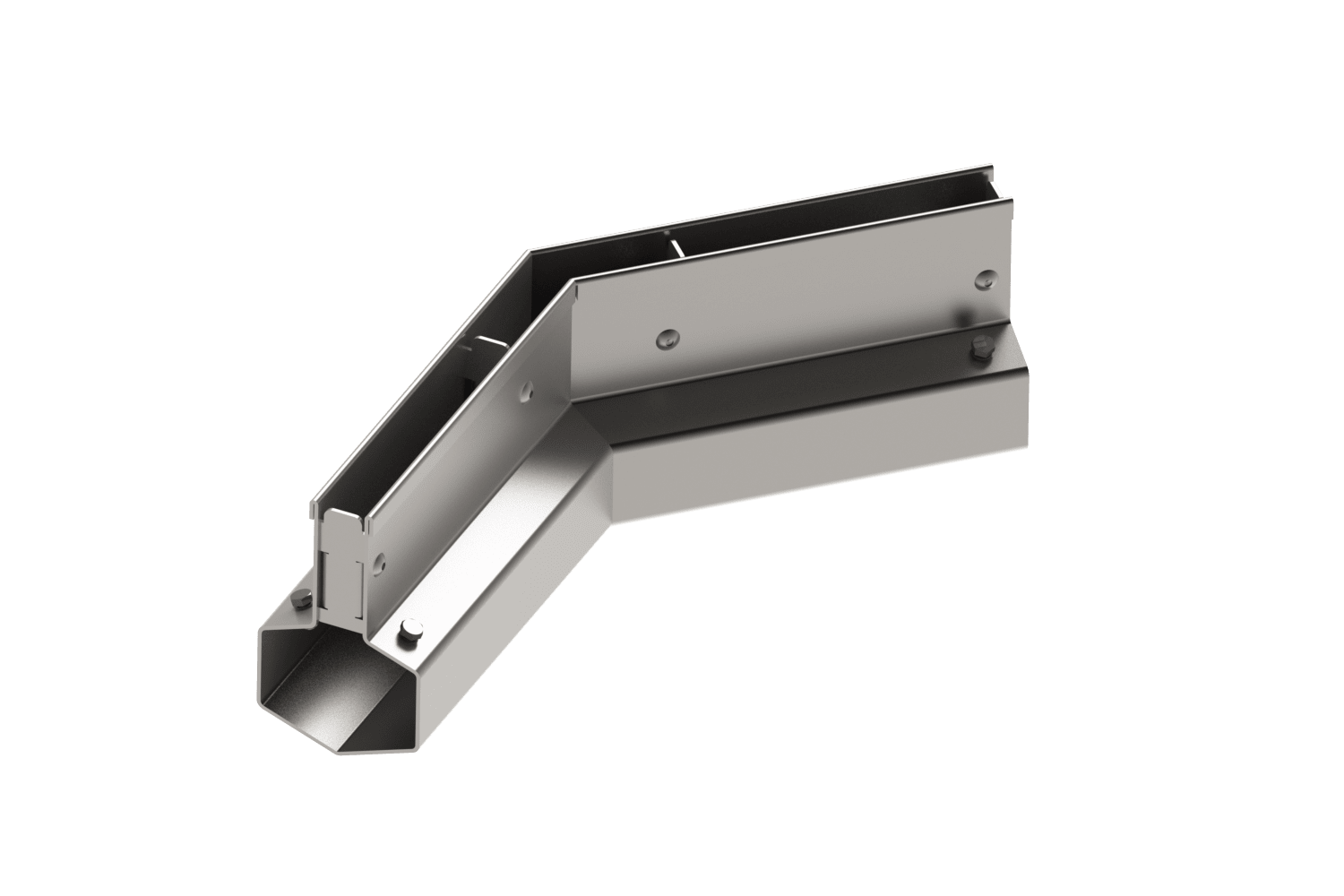

    Mini slot 45-degree adapter channel
