Specification and Downloads
- 16x16 squared catch basin
- Plastic grate
- Equipped with debris basket for sediment removal
- Multiple outlets available on all sides (4", 6", 8" and 12")
- ADA compliant
- Pedestrian load rated
Product Description

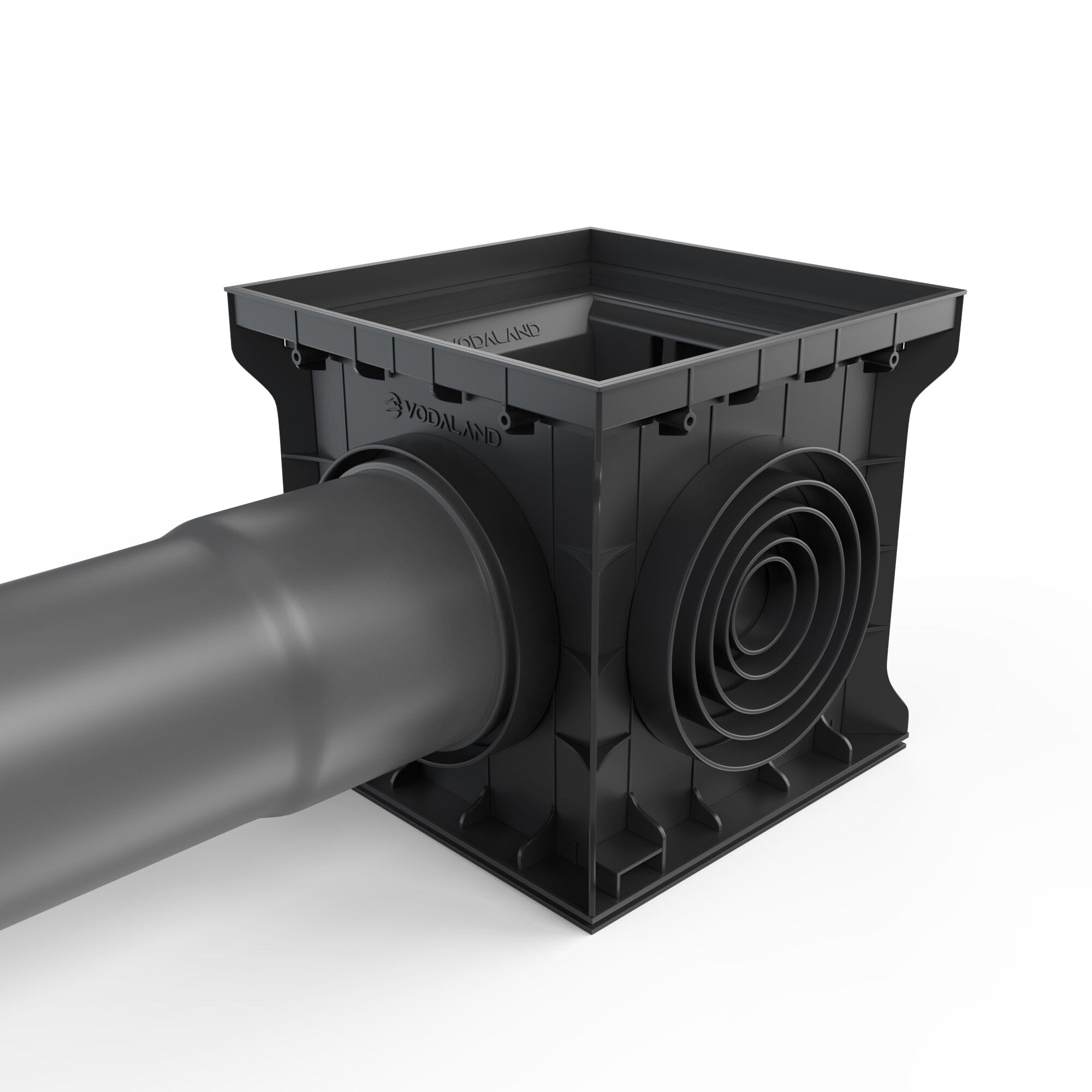

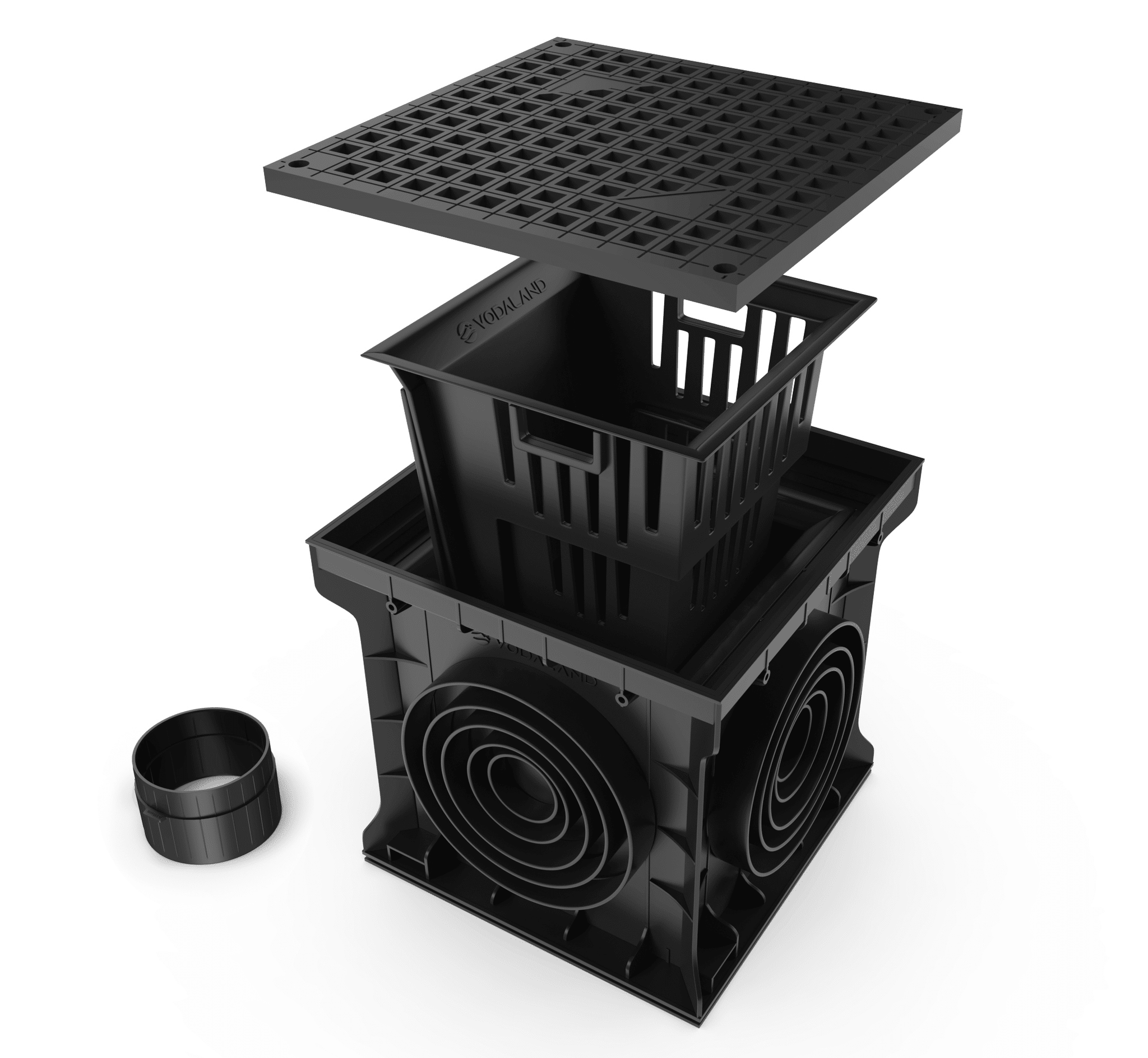

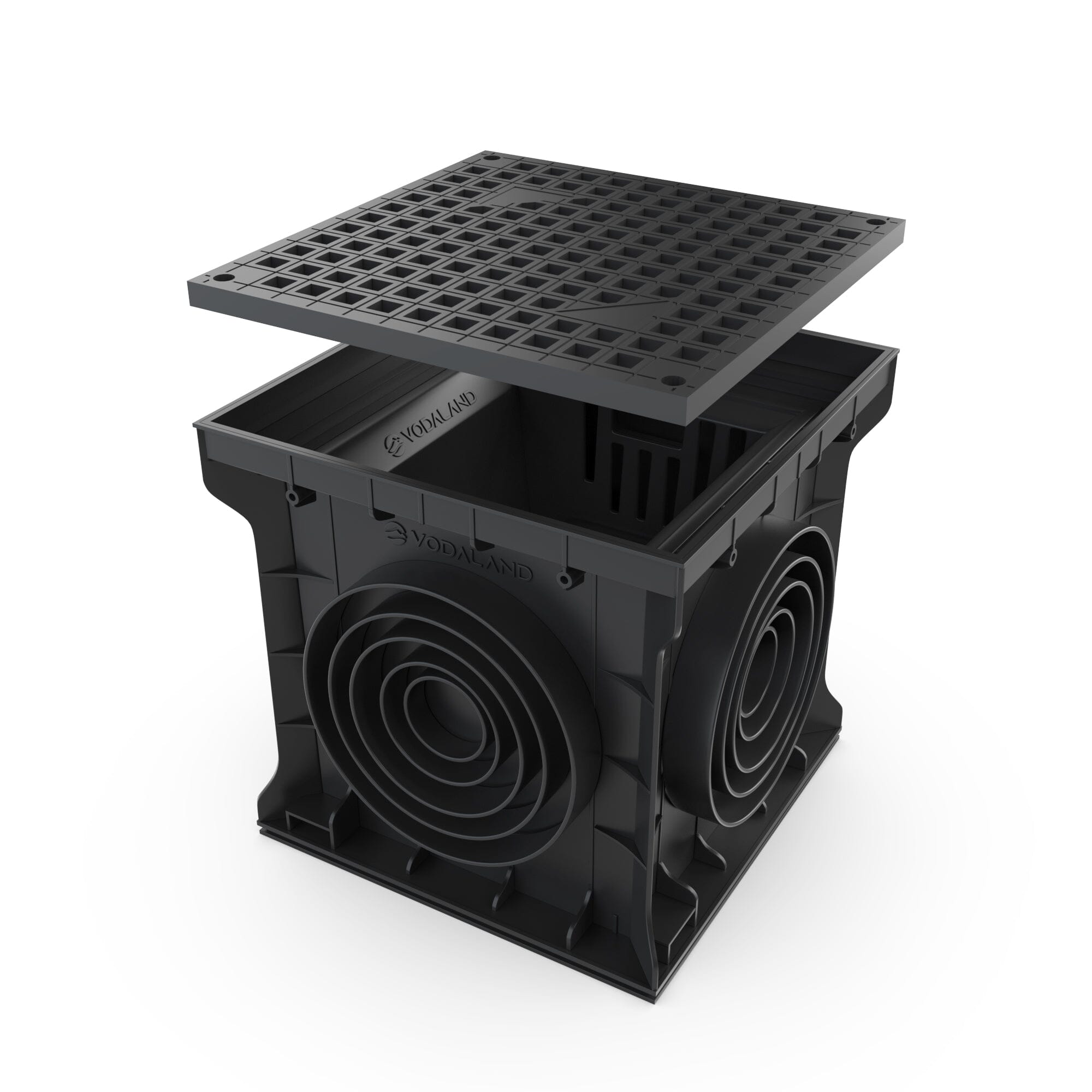

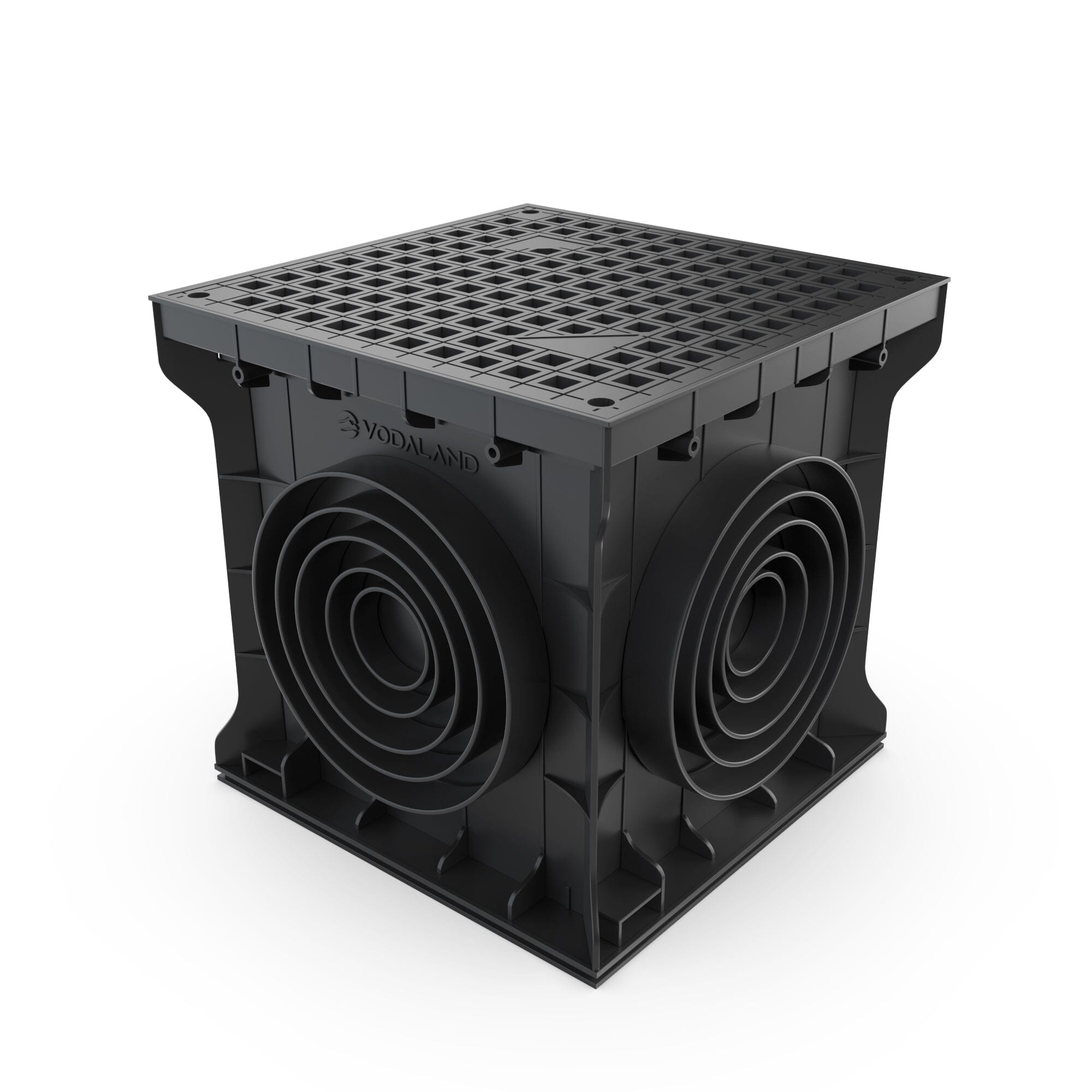

Vodaland 16"x16" catch basin is designed to fit our customers' needs. The seamless installation process and availability of all common connection sizes (4", 6", 8", 12") on sides makes our catch basin the first choice. It comes with plastic grating and our 4", 8" and 12" basic channels can connect to it.

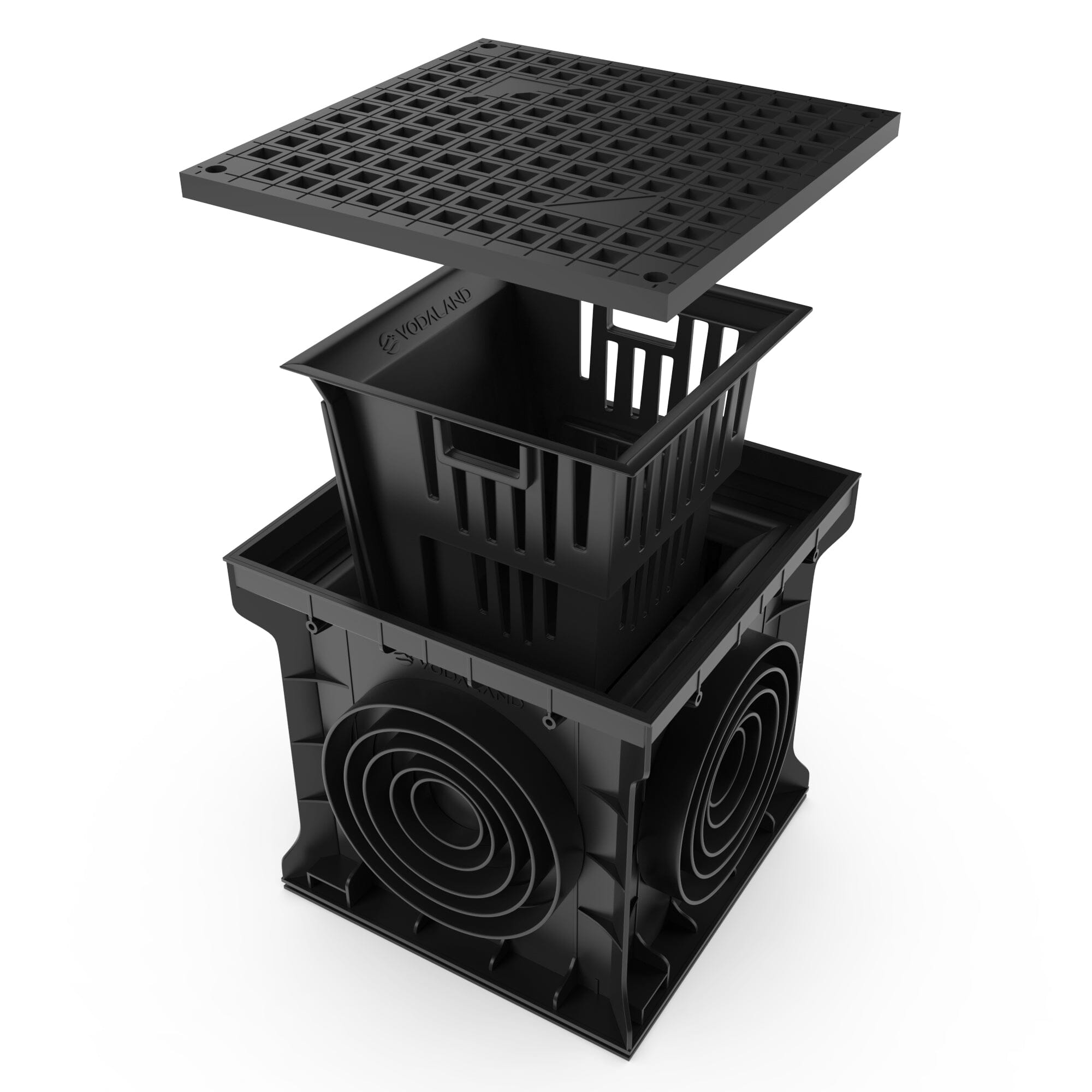

The basket made of galvanized steel. It collects debris, preventing them from getting into the system. The grate simply snaps into the basin.
PARAMETERS
Article ................................ 8470PGGB
Material ............................. PPE Plastic
Dimensions ....................... 16" L x 16" W x 16" H
Load Class ....................... A - 3,300 LBS (Pedestrian Load)
INCLUDED IN PACKAGE
1 - Plastic Catch Basin
1 - Plastic Grating
1 - Galvanized Steel Debris Basket
