16x16 Catch Basins

Our 16x16 catch basins offer the perfect solutions when you need to move a substantial amount of water away from your home, business, or property. This 16x16 drain box comes with multiple outlet cut-out options for better project flexibility: 4”, 8”, and 12”. What truly makes this our catch basins the ultimate water management solution for low spots in which water accumulates is that they’re equipped with debris baskets, which effectively prevent sediment from going into the system. For additional information regarding our 16x16 drain box and other similar products, please reach out to our helpful support staff here at Vodaland!

What are they made of?

Our basins are made of 100% recyclable PPE plastic. Grating material varies.

How deep are they?

Our catch basins are 16 inches deep.

What if I need higher depth?

Basins can also be connected together vertically, which we refer to as a stacked basin.

What pipe I can connect to it?

You can connect PVC, ABS or Corrugated pipe to our basins. Our basins have multiple outlet cutout sizes, and if your piping dimensions don't match for direct connection, an adapter or rubber coupling is all that's needed.

Are they in stock and if I need anything additionally?

All products that can be added to your cart are in stock at our Canadian warehouse. For catalogue or custom products, we order from manufacturing on demand. When adding a basin to your cart, a pop-up window will present all additional accessories we recommend.

Available load classes for our 16x16 Catch basins:

Load Class A - pedestrian foot traffic

Load Class B - Residential vehicle traffic (no parking) and yard equipment

Load Class C - Commercial vehicle traffic, residential vehicle parking, buses, and medium duty commercial equipment.

For more info on load classes click on the link:
https://vodaland.ca/pages/load-classes

We offer 4 different materials for grating:

Grate materialLoadsRust resistance
Plastic
PedestrianNo rust
Galvanized Steel
Pedestrian/Light VehicleZinc coating protection
Stainless Steel
Pedestrian/Light Vehicle
No rust
Cast Iron
Pedestrian/Light Vehicle/Heavy vehicle
May rust over a long time

Our 16x16 catch basins offer the perfect solution when a substantial amount of water needs to be moved from the area.

They come with multiple outlet cut-out options: 4”, 8” and 12”.

Our catch basins are equipped with debris baskets, which will stop sediment from going into the system. You have a choice of grating, including plastic, galvanized steel, stainless steel, and heavy-duty cast-iron. We also offer a heel-proof and ADA-compliant grating option.

Our 16x16 catch basins are easy to install and connect. Just cut out the proper outlet size on the side of the basin and slide in your PVC. Use Vodaland professional silicone to seal all the connections, and you are all done.

Our basins are also stackable to accommodate deeper channels.

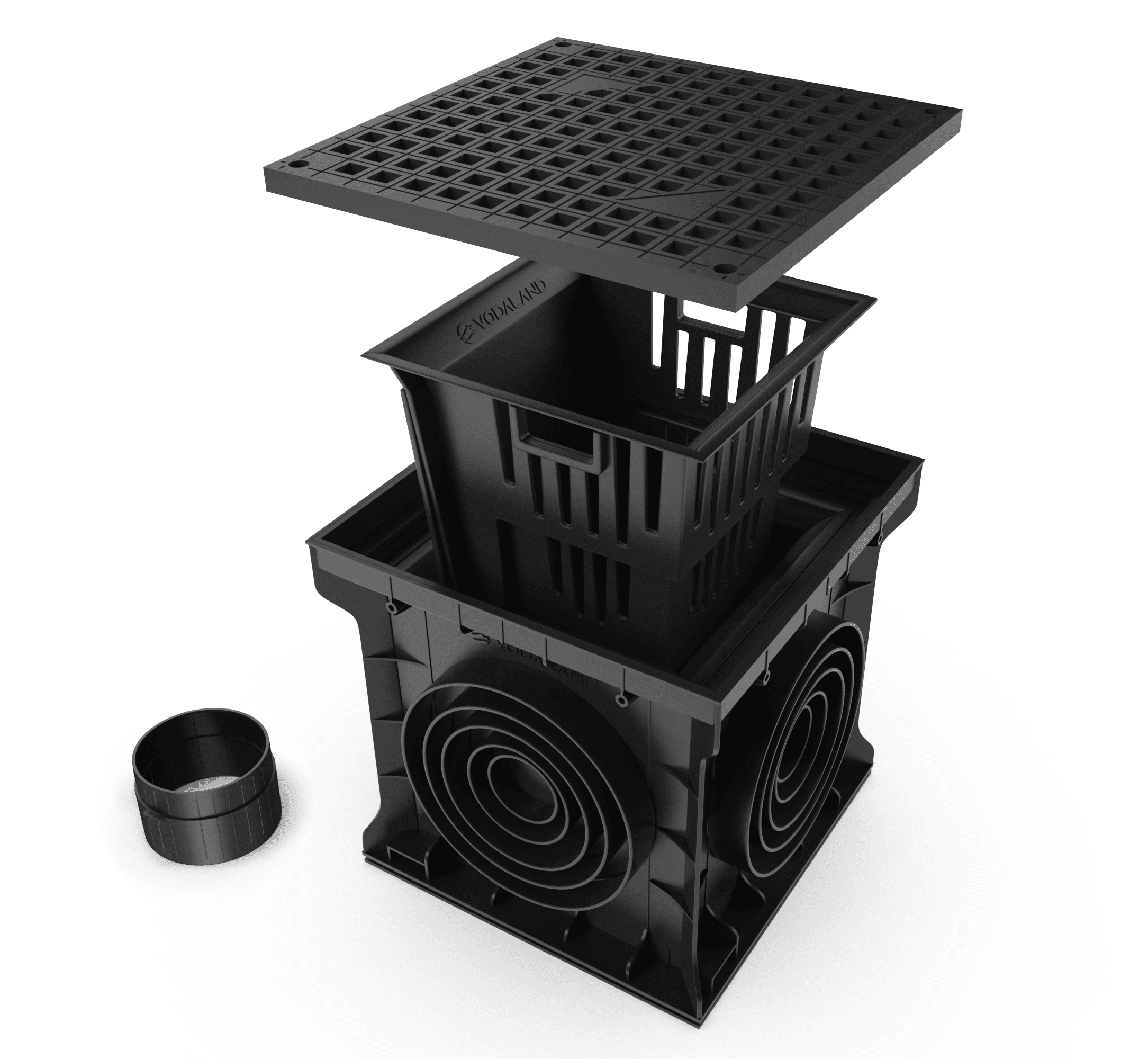

16x16 Plastic catch basin (BASE 400-CBP), plastic grate, A Class

Regular price
from $220.00
Regular price
Sale price
from $220.00
Unit price
per

From $220.00

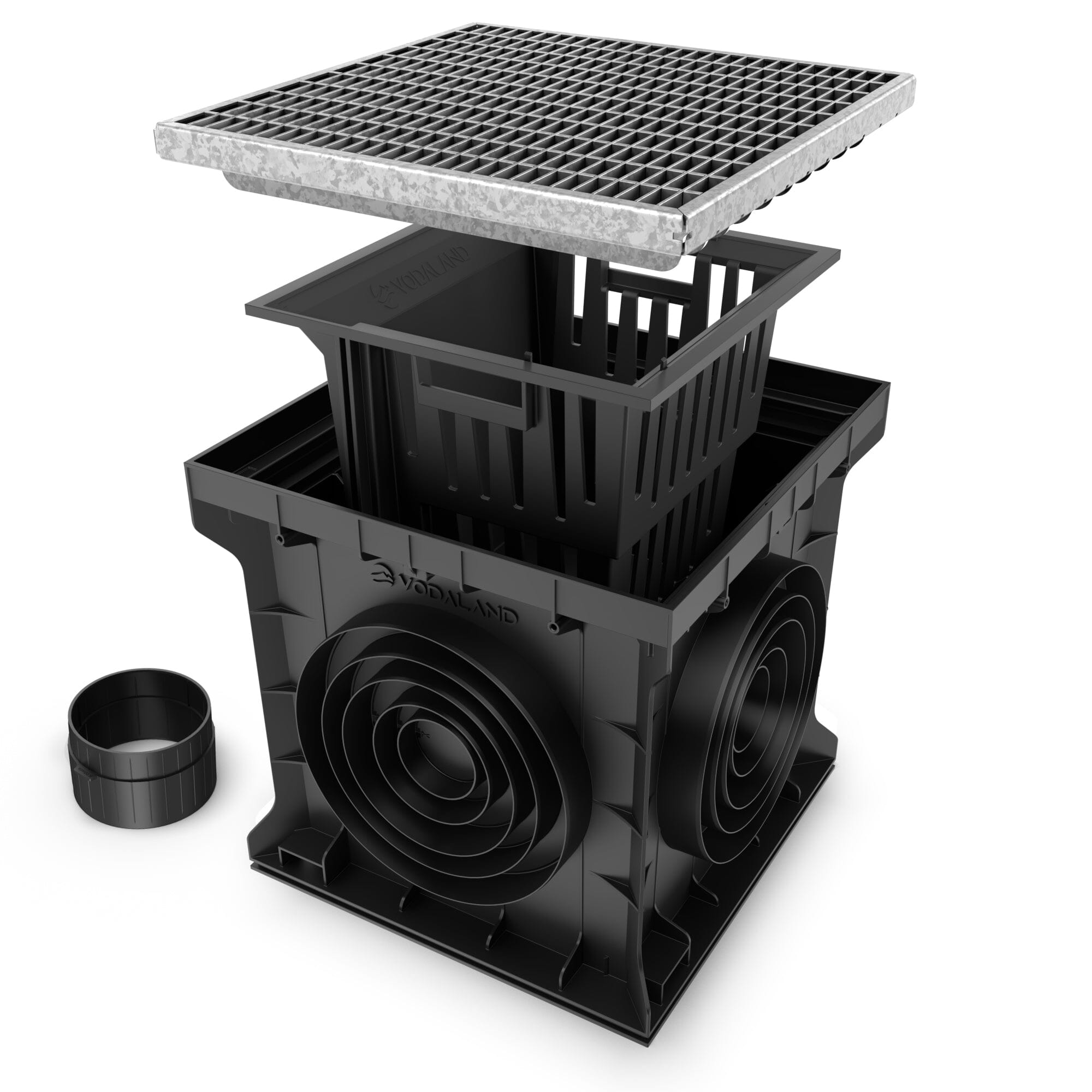

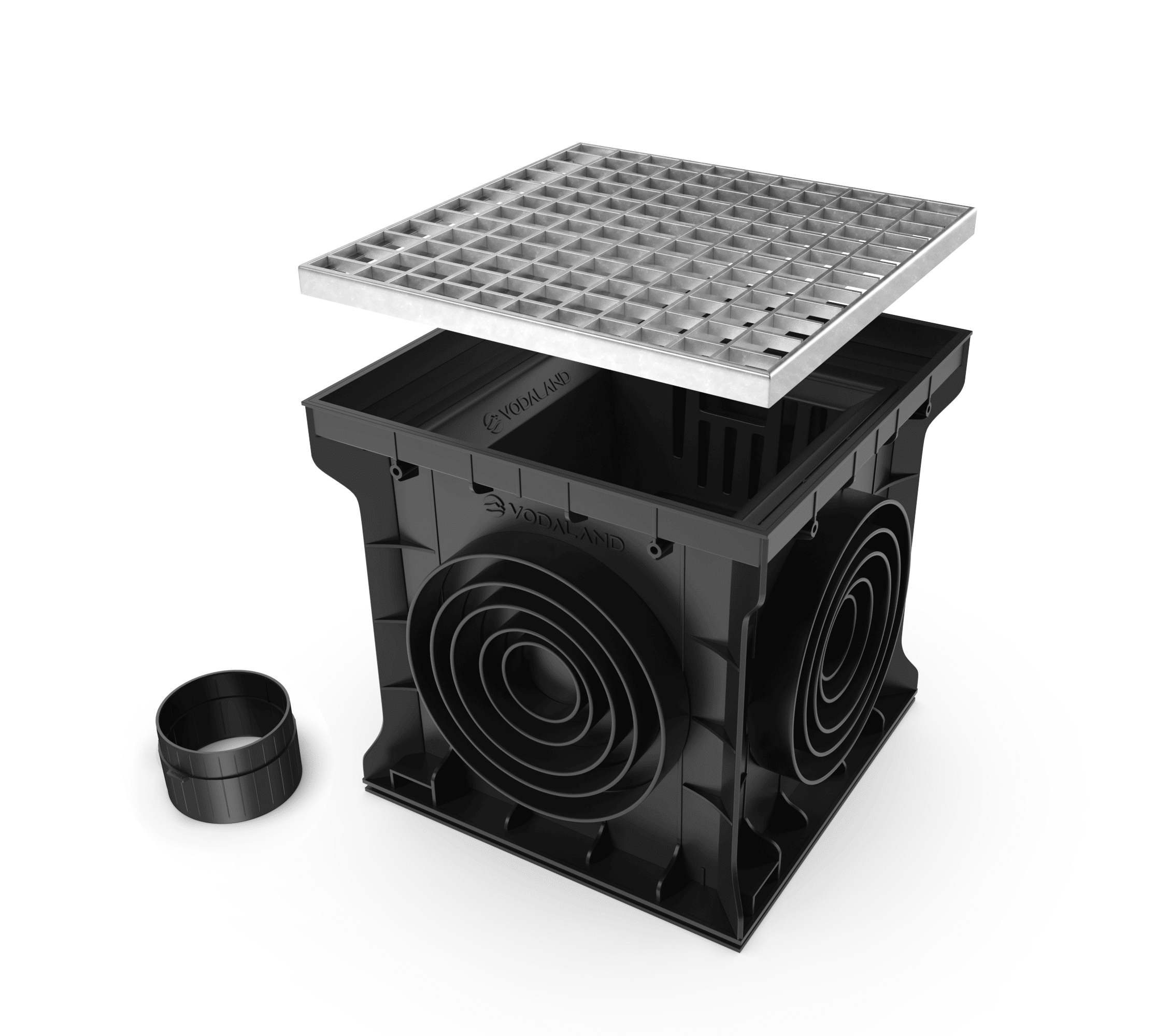

16x16 Plastic catch basin (BASE 400-CBP), galvanized steel grate, A Class

Regular price
from $279.00
Regular price
Sale price
from $279.00
Unit price
per

From $279.00

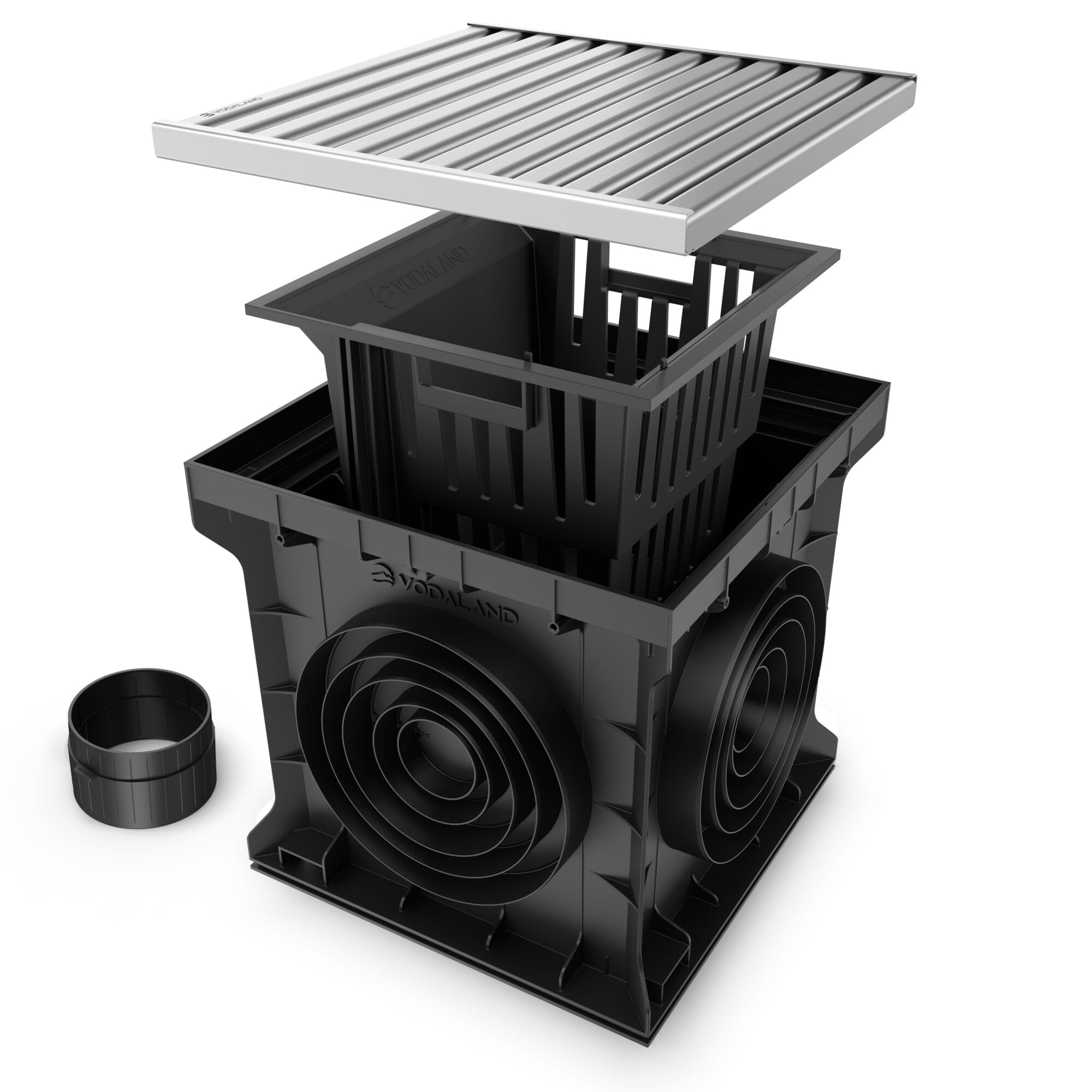

16x16 Plastic catch basin (BASE 400-CBP), stainless steel grate ADA/Heel-proof, B Class

Regular price
from $396.00
Regular price
Sale price
from $396.00
Unit price
per

From $396.00

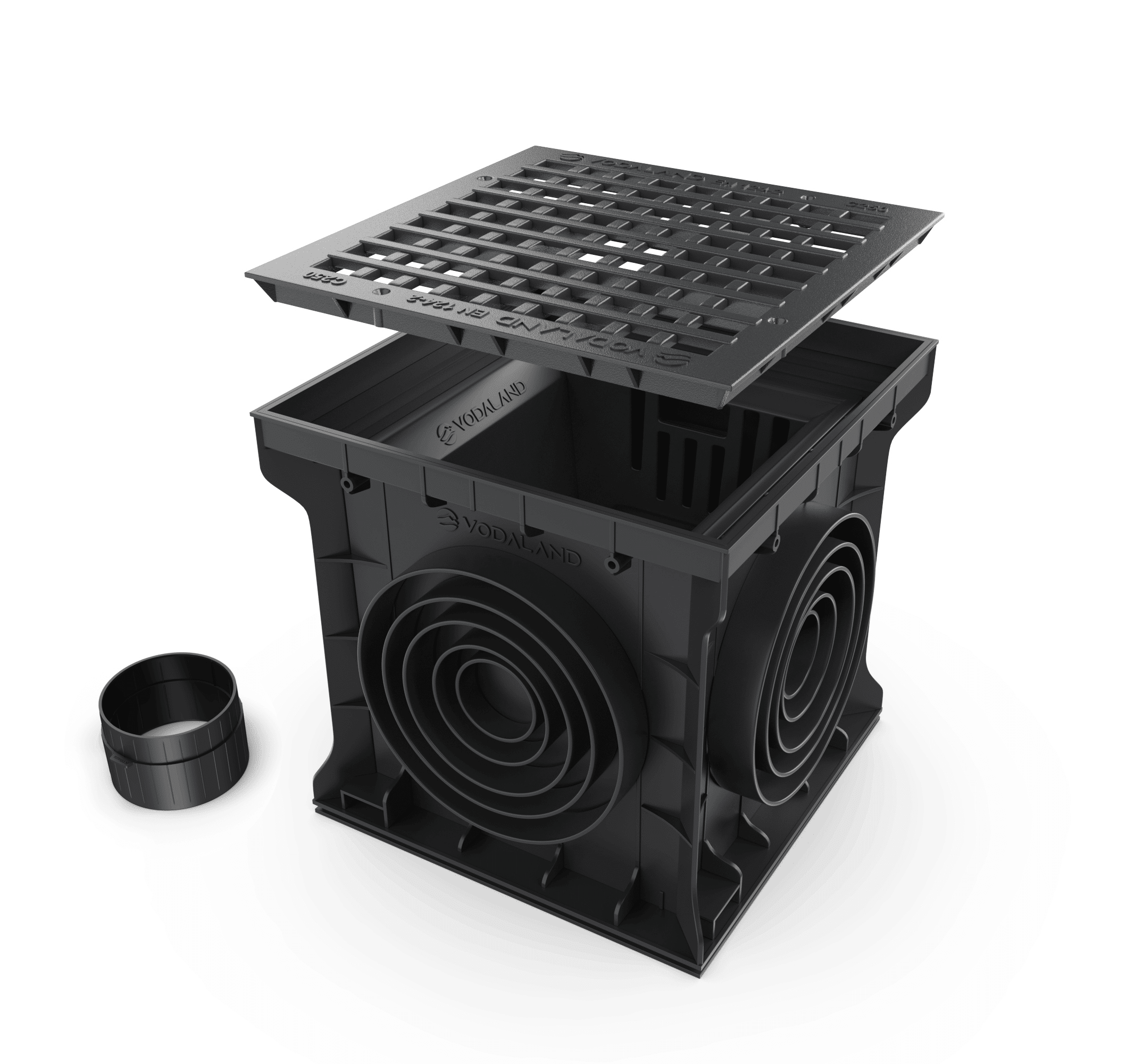

16x16 Plastic catch basin (BASE 400-CBP), ductile cast iron grate, C Class

Regular price
from $396.00
Regular price
Sale price
from $396.00
Unit price
per

From $396.00

16x16 Plastic catch basin (BASE 400-CBP), galvanized fillable slot, C Class

Regular price
from $480.00
Regular price
Sale price
from $480.00
Unit price
per

From $480.00

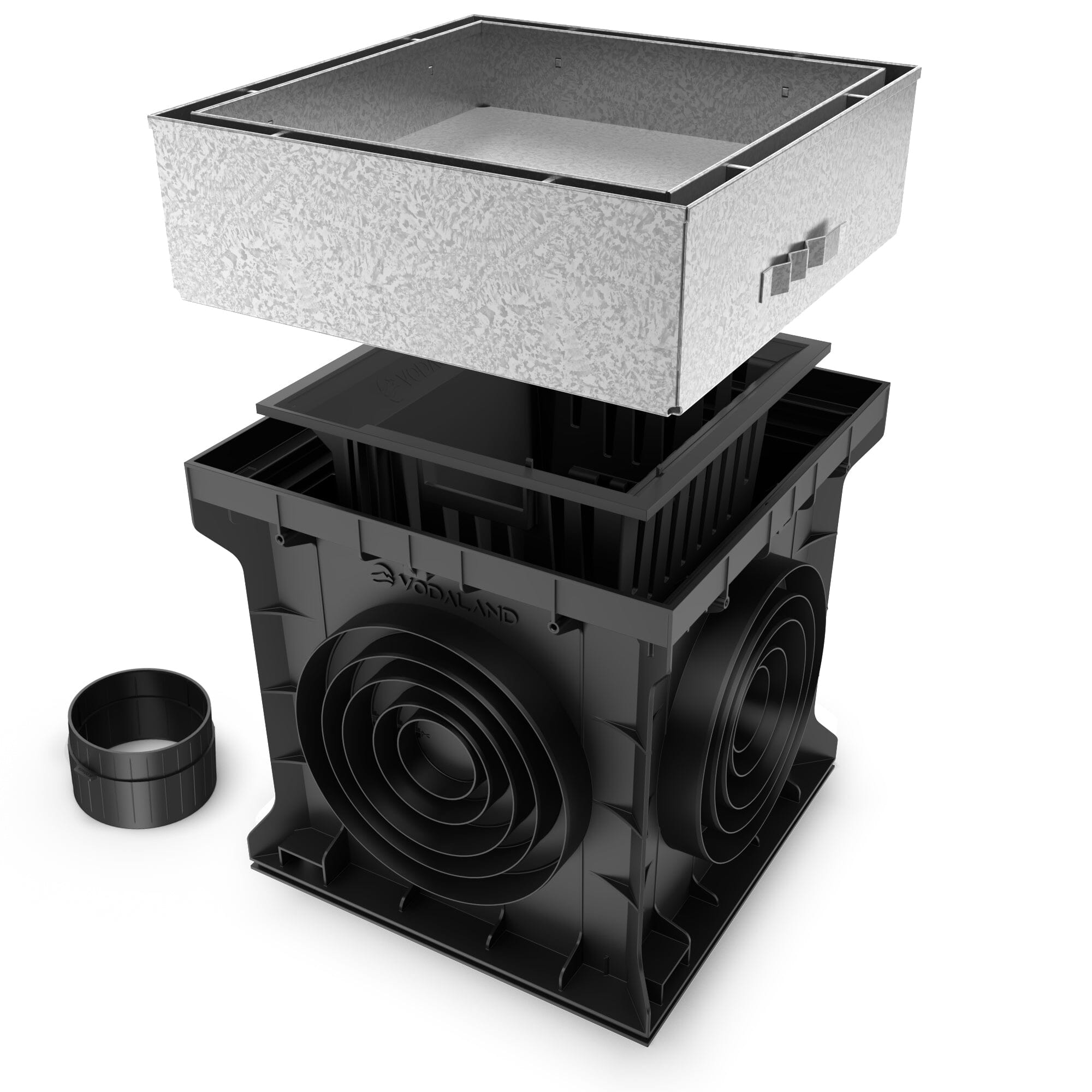

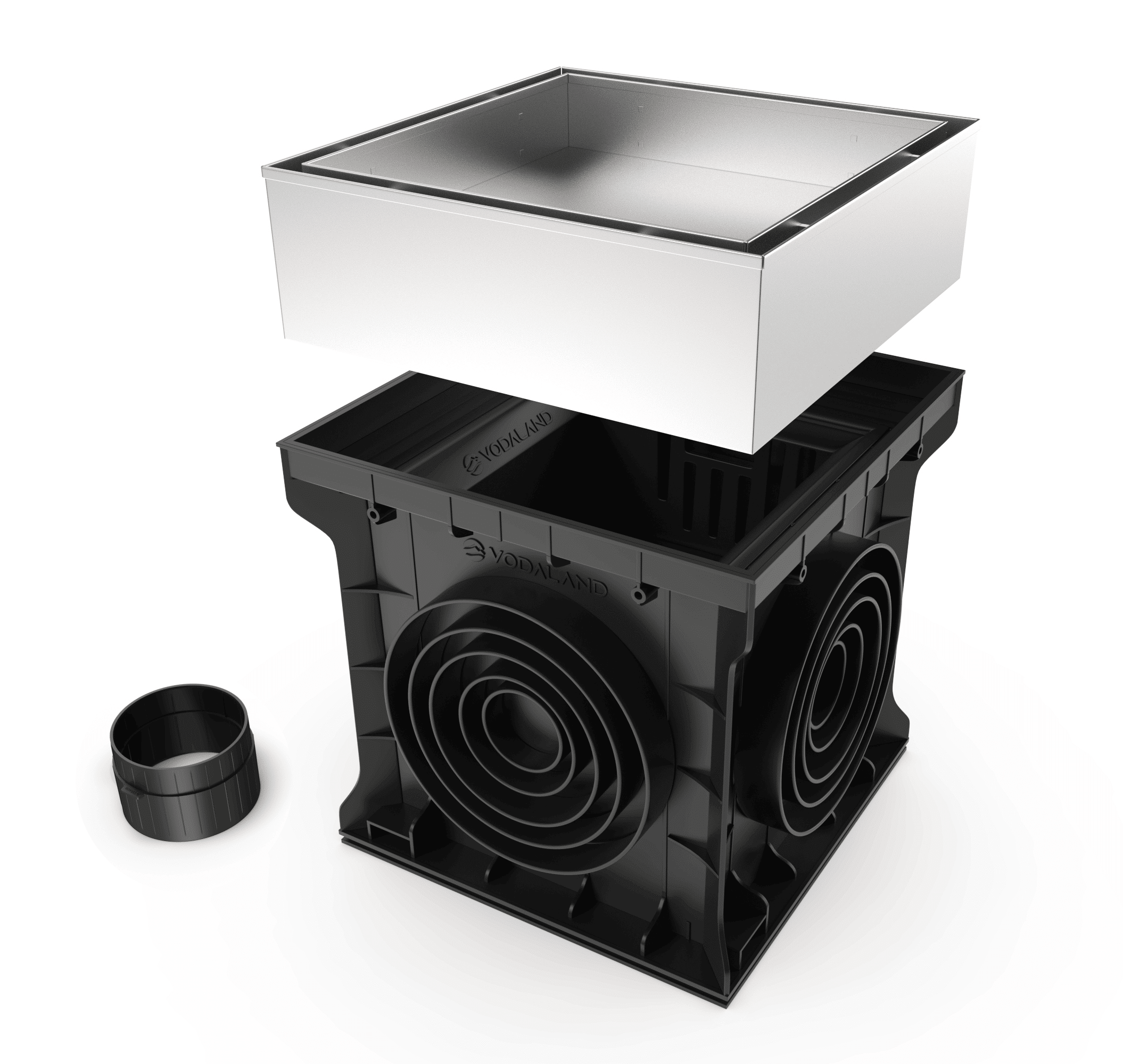

16x16 Plastic catch basin (BASE 400-CBP), stainless fillable slot, C Class

Regular price
from $699.00
Regular price
Sale price
from $699.00
Unit price
per

From $699.00

16" x 16" catch basin mounting bracket (2-pack)

Regular price
From $45.00
Regular price
Sale price
From $45.00
Unit price
per

From $45.00
