    Catch basin drain

    What are catch basin drains for?
    A catch basin is the part of a drainage system designed to take water from a specific point or area to another. They exist for two main reasons: to collect and remove water from a specific area, and to remove debris from a linear drainage system (in this case, catch basins are installed at the endpoint of your trench drain system.

    As both a manufacturer and supplier, Vodaland provides high-quality catch basin drains in a variety of sizes at a competitive price. We sell directly to customers and ship across Canada (with FREE shipping for orders over $299).

    What are catch basins made of?

    Our basins are made of a PPE plastic material, and the internal basket may be a PPE plastic or galvanized metal material dependent on the basin size.

    What load class do I need for my project?

    Vodaland provides catch basins for any required load class. To match the right load class to your project requirements, follow this link to learn the classifications:

    https://standartpark-dev.myshopify.com/pages/load-classes

    Can I connect your trench drains to these?

    Some of our catch basins have cut-out options for trench drain connections. They can be distinguished by looking for the “U-shape” on the side of our basins. Our 12x12 basin offers a riser option which provides these cut-outs for trench drains as well. Customers may try to add their own trench drain connections, but Vodaland recommends staying attentive to where the basket sits in relation to the trench drains.

    How does the stackable basin system work?

    For those that need a deeper basin than the ones we offer, they can consider a stacked basin for their project. Stacked basins are very simple: basins are stacked vertically. The top basins can then have their floors removed to allow water access to the bottom basins. The only other step is to silicone seal between the two basins for a leak-proof connection.

    How do I maintain and clean my basin?

    Regular maintenance required for our catch basins is periodically removing the debris collected in the basket and removing sediment build-up on the bottom with a scoop or vacuum. Customers will know best how often they need to complete this process based on their risk of debris and the quantity of liquid collected.

    Where are catch basins used?

    Catch basins are typically used in urban and suburban areas to collect and manage stormwater runoff that could potentially contaminate nearby bodies of water. They are commonly found along streets, parking lots, sidewalks, industrial facilities, parking garages, highways, and airports. Certain types are designed to have great depth to handle large volumes of water during heavy rainstorms.



    Load Class A - Light duty, pedestrian foot traffic

    Load Class B - Medium duty traffic, light vehicles, sidewalks and residential parking

    Load Class C - Heavy duty traffic, buses, garages, general commercial applications

    Load Class D - Heavy duty trucks, gas stations, forklifts, highways

    Load Class E - Extra heavy duty, hard tire forklifts, industrial areas, storage terminals

    Load Class F - Special duty, airport runways, structures with extreme loads

    We offer 4 different materials for grating:

    Plastic - good option for garden, home, patio where no loads to be applied rather than pedestrian

    Galvanized Steel - light traffic is allowed, carts, bicycles, riding loan movers

    Stainless Steel - can be driven on by any type of residential vehicles

    Cast Iron - heady duty vehicles, buses, tractors

    Why Vodaland's catch basins?
    High-Quality and Easy-to-Maintain

    When we designed our catch basins together with high-quality materials, we wanted to provide our customers with a customizable drainage solution and an easy-to-maintain design. Unlike other brands, our catch basins do not require additional adapters to connect with a pipe because all common pipe connection sizes are already pre-installed at the installation site on all four sides. You just need to open up the desired connection size and connect your pipe.

    Anti-Clog Protection

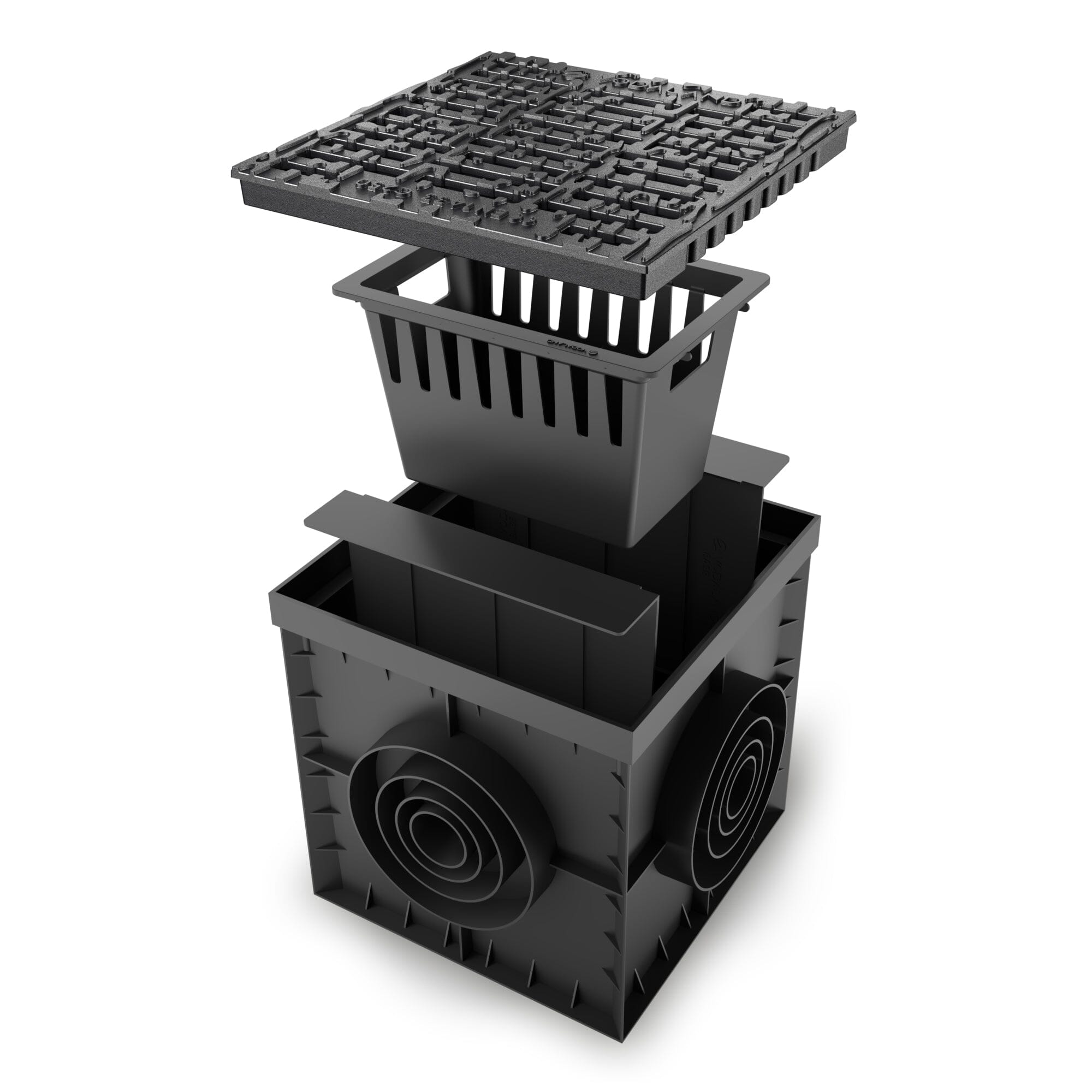

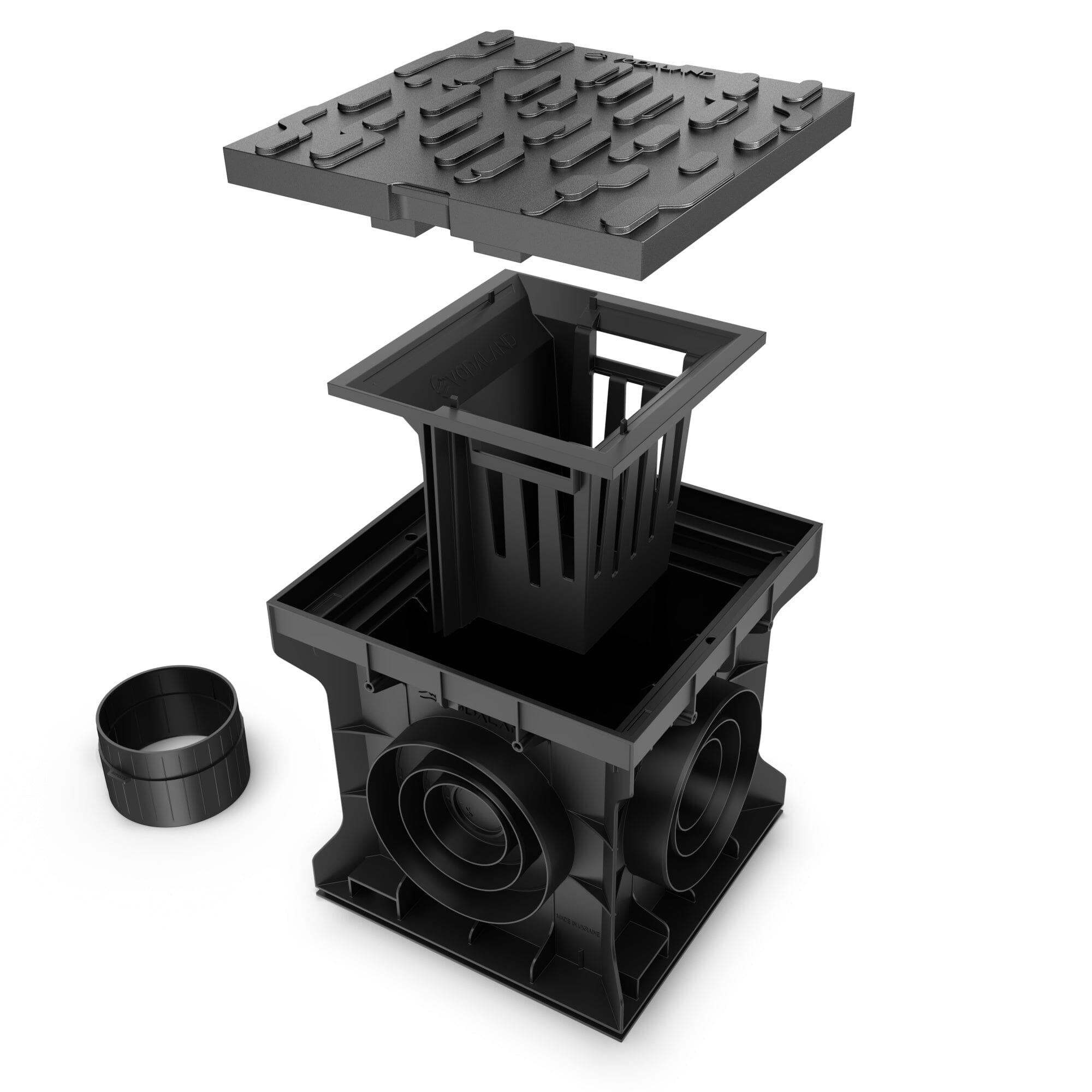

    Say “no” to clogging! Our catch basin drains also come with a debris basket that protects your pipe from getting clogged with debris. Simply open the grate and remove debris from the basket. This will save you time and money on cleaning and maintenance of your drainage system in the long run.

    Product Variety

    We have an easily accessible online store that sells products typically not sold online.

    We also supply product lines that are engineered for larger-scale projects and have a dedicated engineer who works to ensure that products have the right specifications.

    Range of Services

    We cater to both residential and commercial clients in Ontario, Quebec, and British Columbia.

    Direct Line of Communication

    We deal with customers directly so you can receive immediate help from us should problems arise. This also means that we can get your products to you much more quickly.

    Shop our selection of plastic catch basins now.






    10x10 Plastic catch basin (EASY 250-CBP), plastic grate, A Class

    Regular price
    From $42.00
    Regular price
    Sale price
    From $42.00
    Unit price
    per

    From $42.00

    10x10 Plastic catch basin (EASY 250-CBP), cast iron grate, A Class

    Regular price
    From $64.00
    Regular price
    Sale price
    From $64.00
    Unit price
    per

    From $64.00

    10x10 Plastic catch basin (EASY 250-CBP), galvanized grate, A Class

    Regular price
    From $42.00
    Regular price
    Sale price
    From $42.00
    Unit price
    per

    From $42.00

    12x12 Plastic catch basin (BASE 300-CBP), plastic grate, A Class

    Regular price
    From $66.00
    Regular price
    Sale price
    From $66.00
    Unit price
    per

    From $66.00

    12x12 Plastic catch basin (BASE 300-CBP), plastic cover, A Class

    Regular price
    From $66.00
    Regular price
    Sale price
    From $66.00
    Unit price
    per

    From $66.00

    12x12 Plastic catch basin (BASE 300-CBP), downspout guard, A Class

    Regular price
    From $99.00
    Regular price
    Sale price
    From $99.00
    Unit price
    per

    From $99.00

    12x12 Plastic catch basin (BASE 300-CBP), galvanized steel grate, A Class

    Regular price
    From $88.00
    Regular price
    Sale price
    From $88.00
    Unit price
    per

    From $88.00

    12x12 Plastic catch basin (BASE 300-CBP), cast iron grate, B Class

    Regular price
    From $132.00
    Regular price
    Sale price
    From $132.00
    Unit price
    per

    From $132.00

    12x12 Plastic catch basin (BASE 300-CBP), stainless steel grate ADA/Heel Proof, B class

    Regular price
    From $165.00
    Regular price
    Sale price
    From $165.00
    Unit price
    per

    From $165.00

    12x12 Plastic catch basin riser

    Regular price
    From $20.00
    Regular price
    Sale price
    From $20.00
    Unit price
    per

    From $20.00

    16x16 Plastic catch basin (BASE 400-CBP), plastic grate, A Class

    Regular price
    from $220.00
    Regular price
    Sale price
    from $220.00
    Unit price
    per

    From $220.00

    16x16 Plastic catch basin (BASE 400-CBP), galvanized steel grate, A Class

    Regular price
    from $279.00
    Regular price
    Sale price
    from $279.00
    Unit price
    per

    From $279.00

    16x16 Plastic catch basin (BASE 400-CBP), cast iron grate, C Class

    Regular price
    from $396.00
    Regular price
    Sale price
    from $396.00
    Unit price
    per

    From $396.00

    16x16 Plastic catch basin (BASE 400-CBP), stainless steel grate ADA/Heel-proof, B Class

    Regular price
    from $396.00
    Regular price
    Sale price
    from $396.00
    Unit price
    per

    From $396.00

    22x22 Plastic catch basin (BASE 550-CBP), gray plastic grate, A Class

    Regular price
    from $616.00
    Regular price
    Sale price
    from $616.00
    Unit price
    per

    From $616.00

    22x22 Plastic catch basin (BASE 550-CBP), green plastic grate, A Class

    Regular price
    from $616.00
    Regular price
    Sale price
    from $616.00
    Unit price
    per

    From $616.00

    22x22 Plastic catch basin (BASE 550-CBP), galvanized steel grate, A Class

    Regular price
    from $638.00
    Regular price
    Sale price
    from $638.00
    Unit price
    per

    From $638.00

    22x22 Plastic catch basin (BASE 550-CBP), stainless steel grate ADA/Heel-proof, C Class

    Regular price
    from $1,100.00
    Regular price
    Sale price
    from $1,100.00
    Unit price
    per

    From $1,100.00

    22x22 Galvanized steel debris basket

    Regular price
    From $252.00
    Regular price
    Sale price
    From $252.00
    Unit price
    per

    From $252.00

    12x12 Plastic catch basin (BASE 300-CBP), stainless fillable slot, C Class

    Regular price
    From $435.00
    Regular price
    Sale price
    From $435.00
    Unit price
    per

    From $435.00

    16x16 Plastic catch basin (BASE 400-CBP), galvanized fillable slot, C Class

    Regular price
    from $480.00
    Regular price
    Sale price
    from $480.00
    Unit price
    per

    From $480.00

    12x12 Plastic catch basin (BASE 300-CBP), galvanized fillable slot, C Class

    Regular price
    From $280.00
    Regular price
    Sale price
    From $280.00
    Unit price
    per

    From $280.00

    16x16 Plastic catch basin (BASE 400-CBP), stainless fillable slot, C Class

    Regular price
    from $699.00
    Regular price
    Sale price
    from $699.00
    Unit price
    per

    From $699.00

    4" EASY Inline sand trap, plastic grate (black)

    Regular price
    From $55.00
    Regular price
    Sale price
    From $55.00
    Unit price
    per

    From $55.00

    Call for more information or to place an order!
