Specification and Downloads
- Package includes ductile cast iron mesh (ADA/Heel Proof) grate, channel, and grating fasteners
- 8" internal width ductile cast iron mesh (ADA/Heel Proof) grate

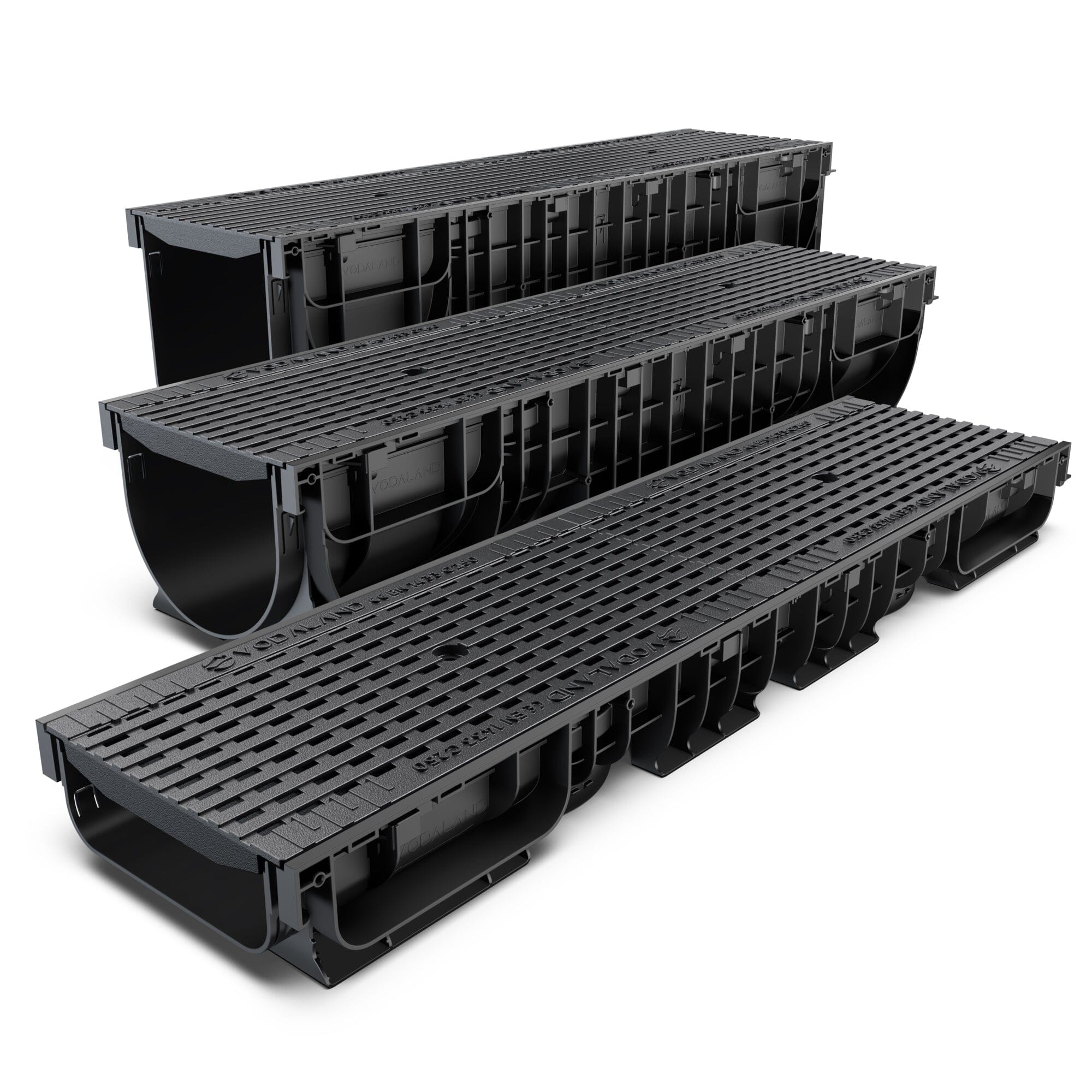

- 4", 8", and 12" depths of channel available (up to your choice)
- PVC or corrugated pipe connections available on the bottom, on sides and on end caps (diameter depends on channel's depth)

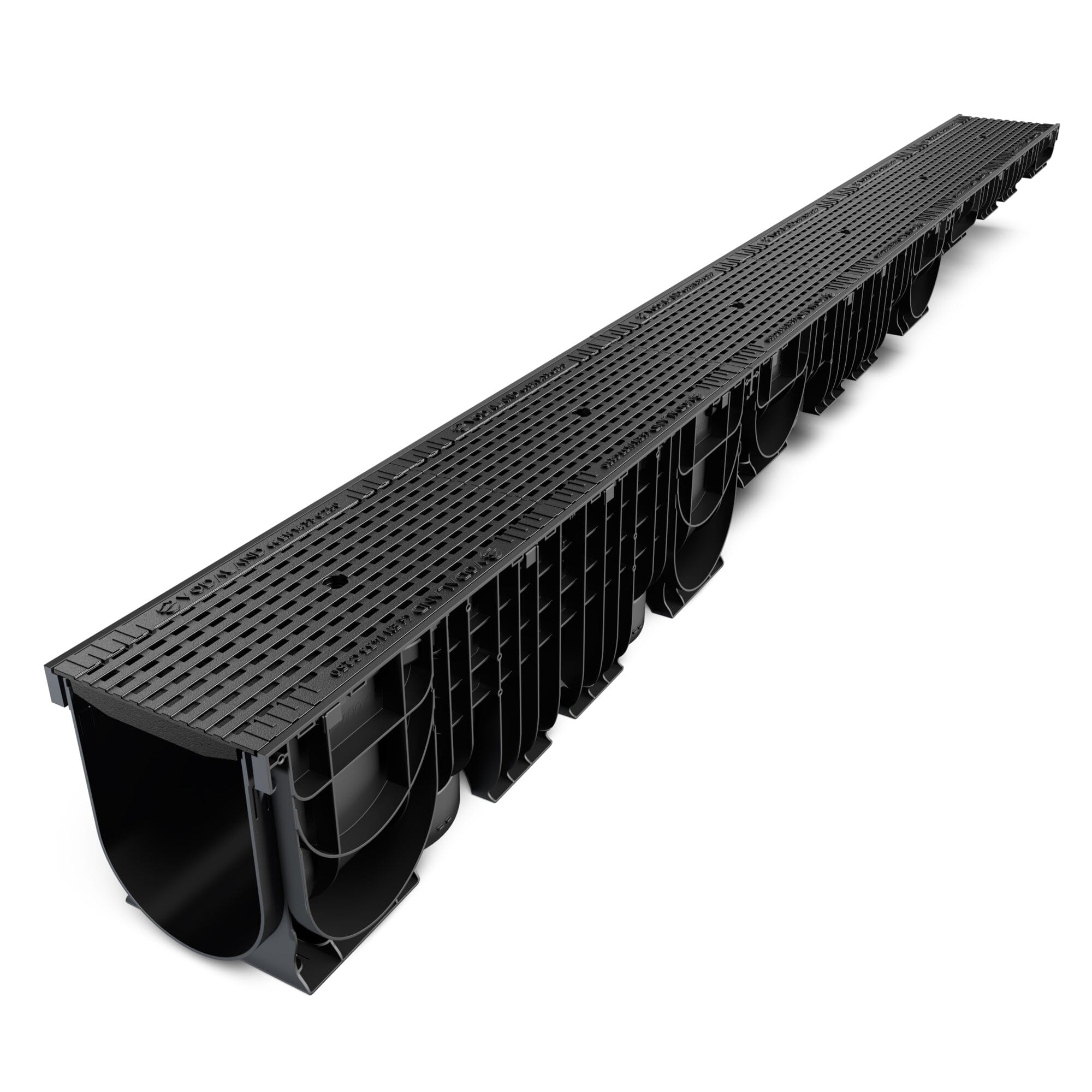

- Channels connect end to end and create a line
- Each channel has a 90-degree connection available (no adapters)
- Cascade systems come included with cascade adapters
- Heavy-duty loads
Product Description

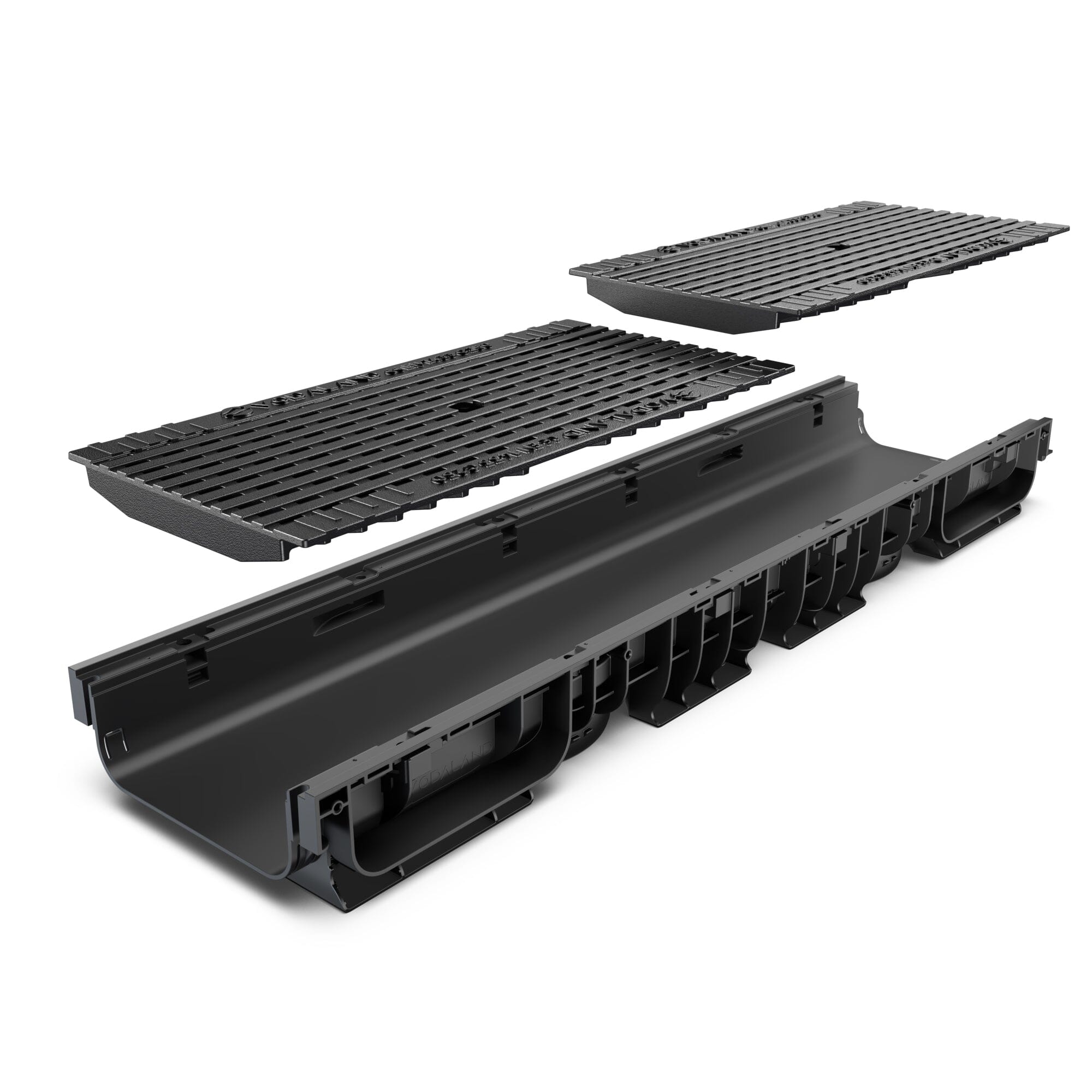

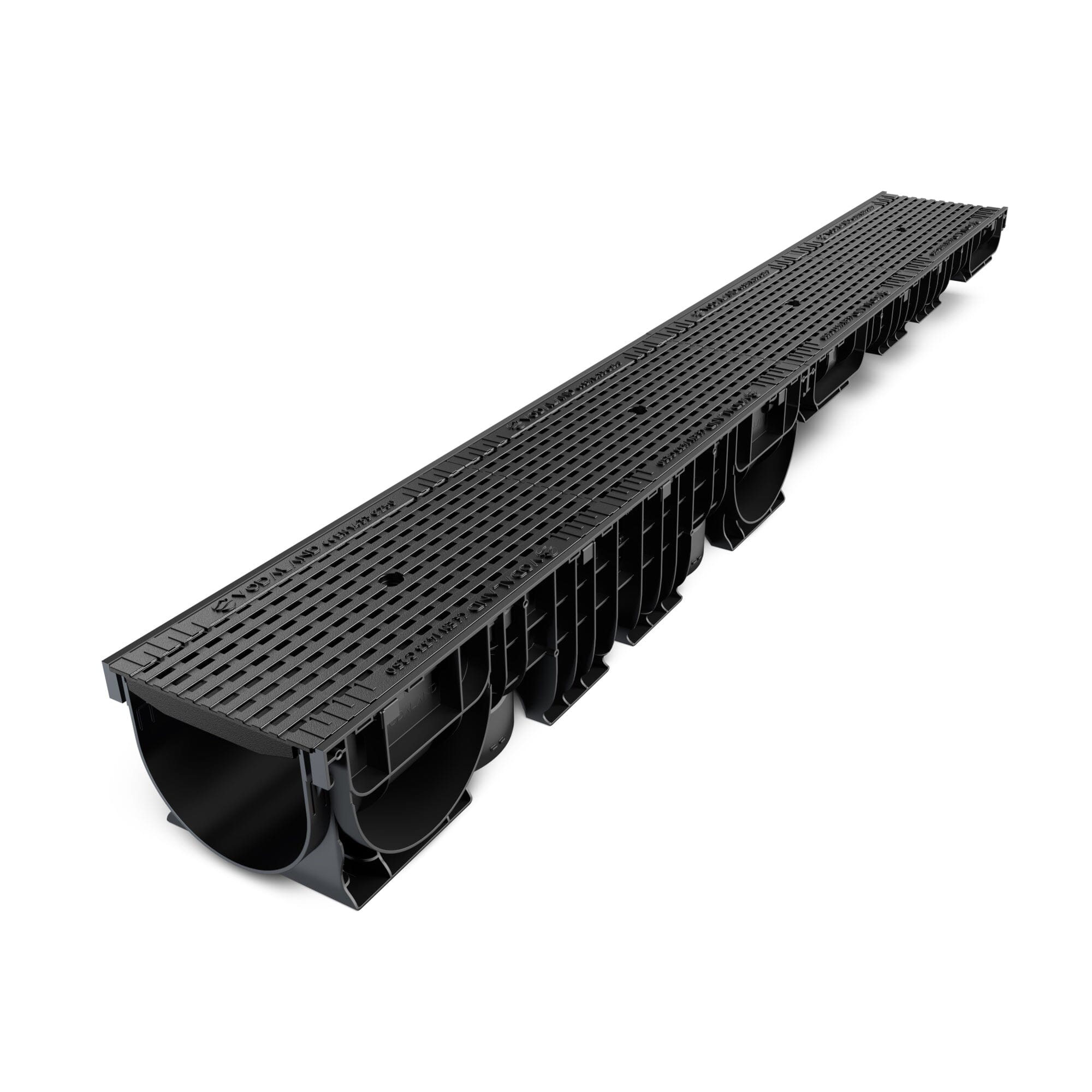

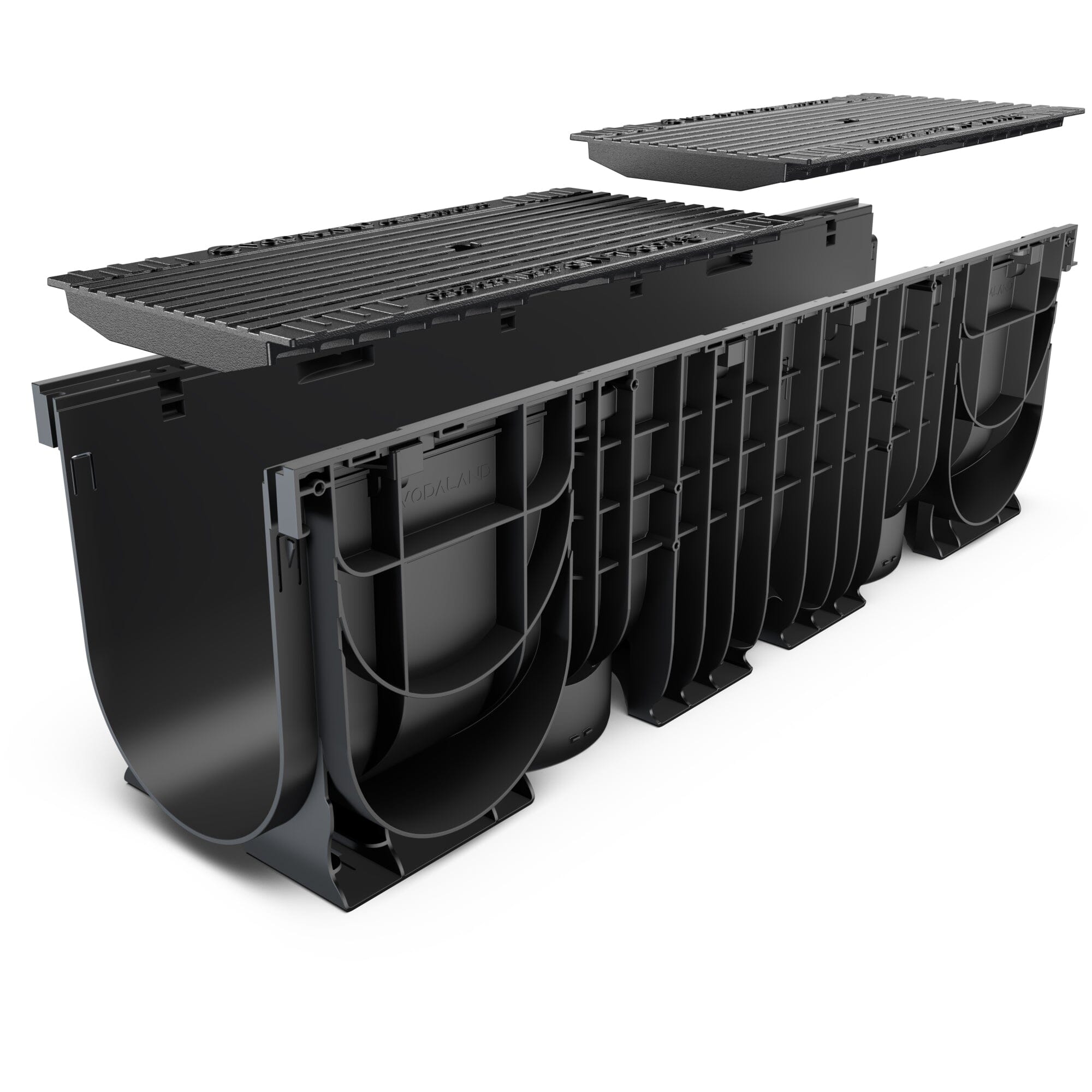

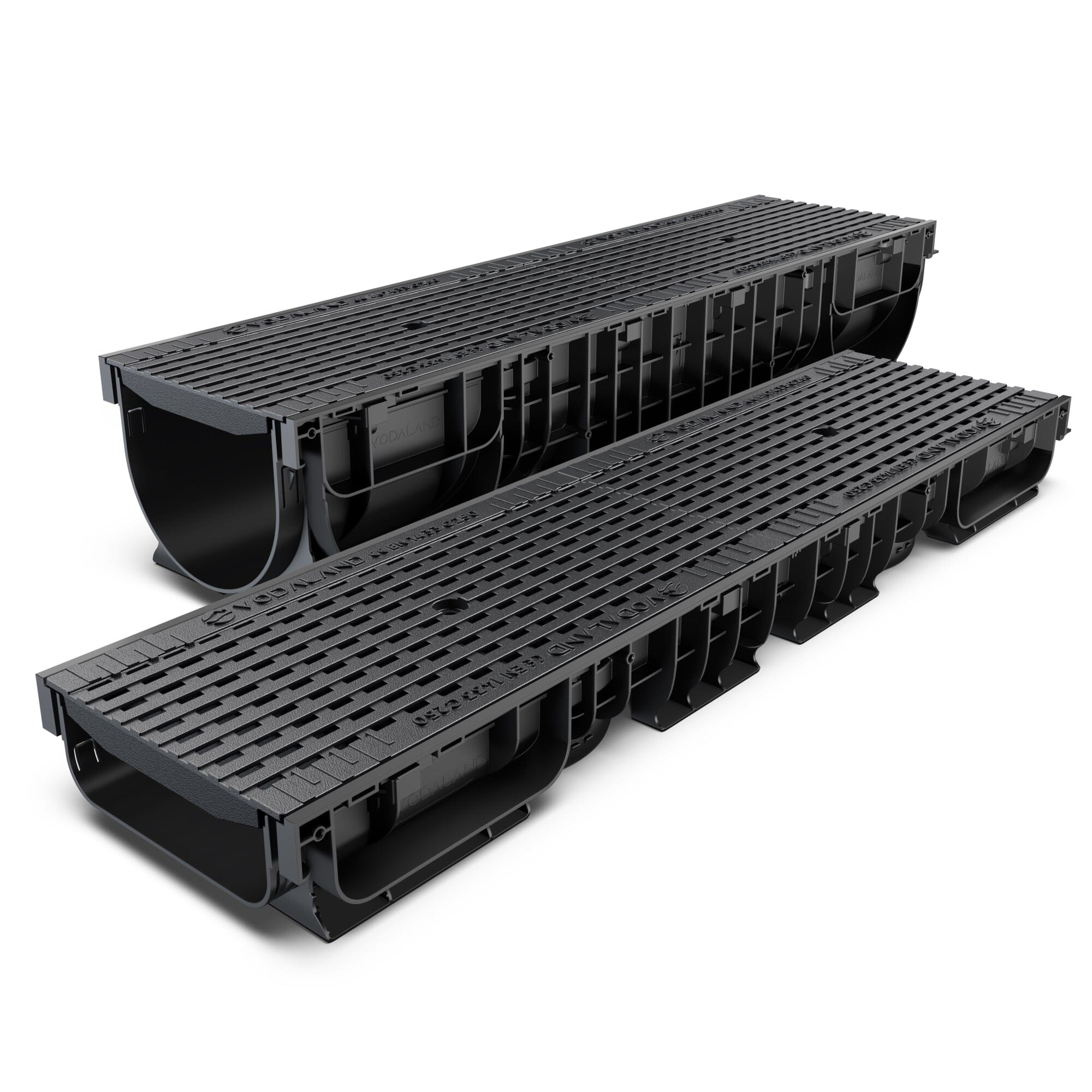

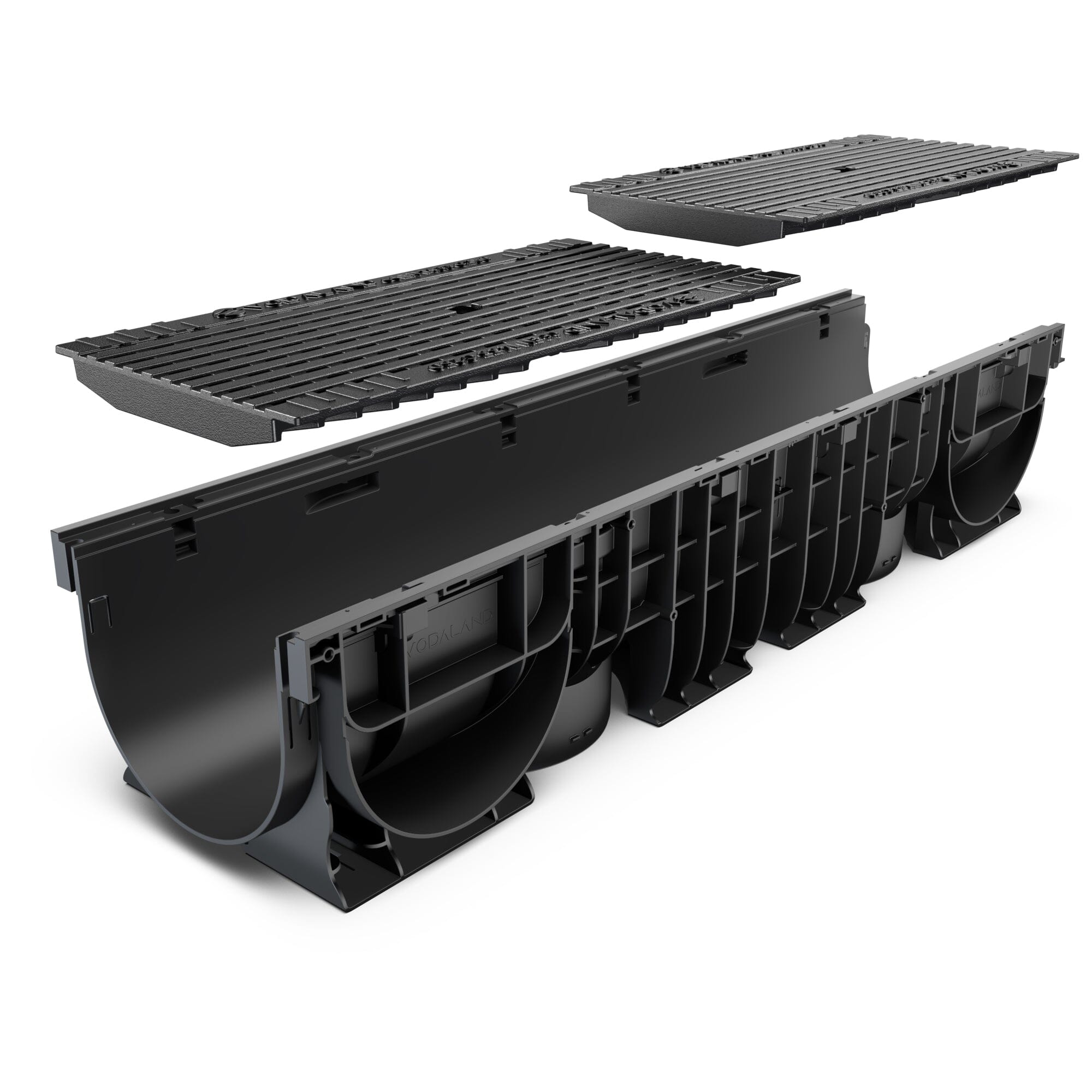

Vodaland’s 8” Base plastic trench drain has an 8” internal width (10” external), and a 3.28ft (1 meter) length. This trench drain comes in 3 external depth options of 4", 8”, and 12". This trench drain comes with an C-class ductile cast iron grate. The C load class is designed to withstand light commercial vehicle traffic. The plastic channels connect easily to one another to form the customer’s desired length of run. Each channel features a 90-degree connection option so that the system can turn at corners. 1 channel, 1 grate, 2 fasteners, and 2 screws are included in each unit purchased. Closed and outlet end caps are sold separately. Cascade adapters are included for cascade bundles. Common applications: patios, walkways, workspace floors, showers, public facilities, and recreation centres.
Article ................ 85100CIGADA / 85200CIGADA / 85300CIGADA
Material ............. PPE Plastic / Ductile Cast Iron
Dimensions ....... 39.4"L x 10.2"W
Load Class ....... C - Commercial Vehicle Traffic
CHANNEL OUTLET OPTIONS
Bottom Outlet: 4", 6", and 8" diameter cut-outs
4" and 8" Depth Channel End Outlet: 4" diameter
12" Depth Channel End Outlet: 8" diameter
INCLUDED IN EACH METER LENGTH UNIT
1 - Plastic channel
1 - Ductile Cast Iron mesh (ADA/Heel Proof) grate
2 - Grating fasteners
Cascade systems will come included with cascade adapters
