Specification and Downloads
- Package includes Stainless steel grate, channel, and grating fasteners
- 8" internal width Stainless Steel Grate

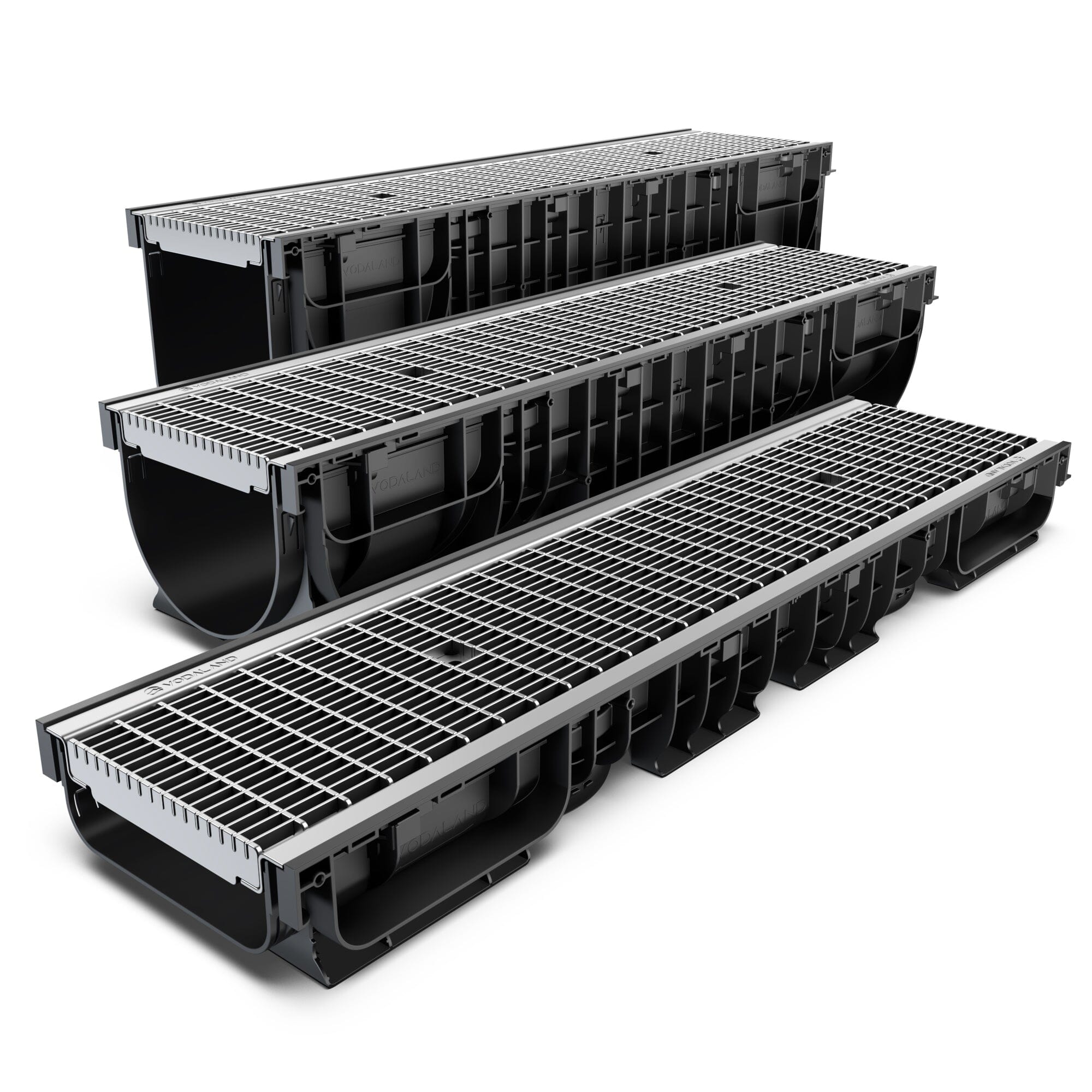

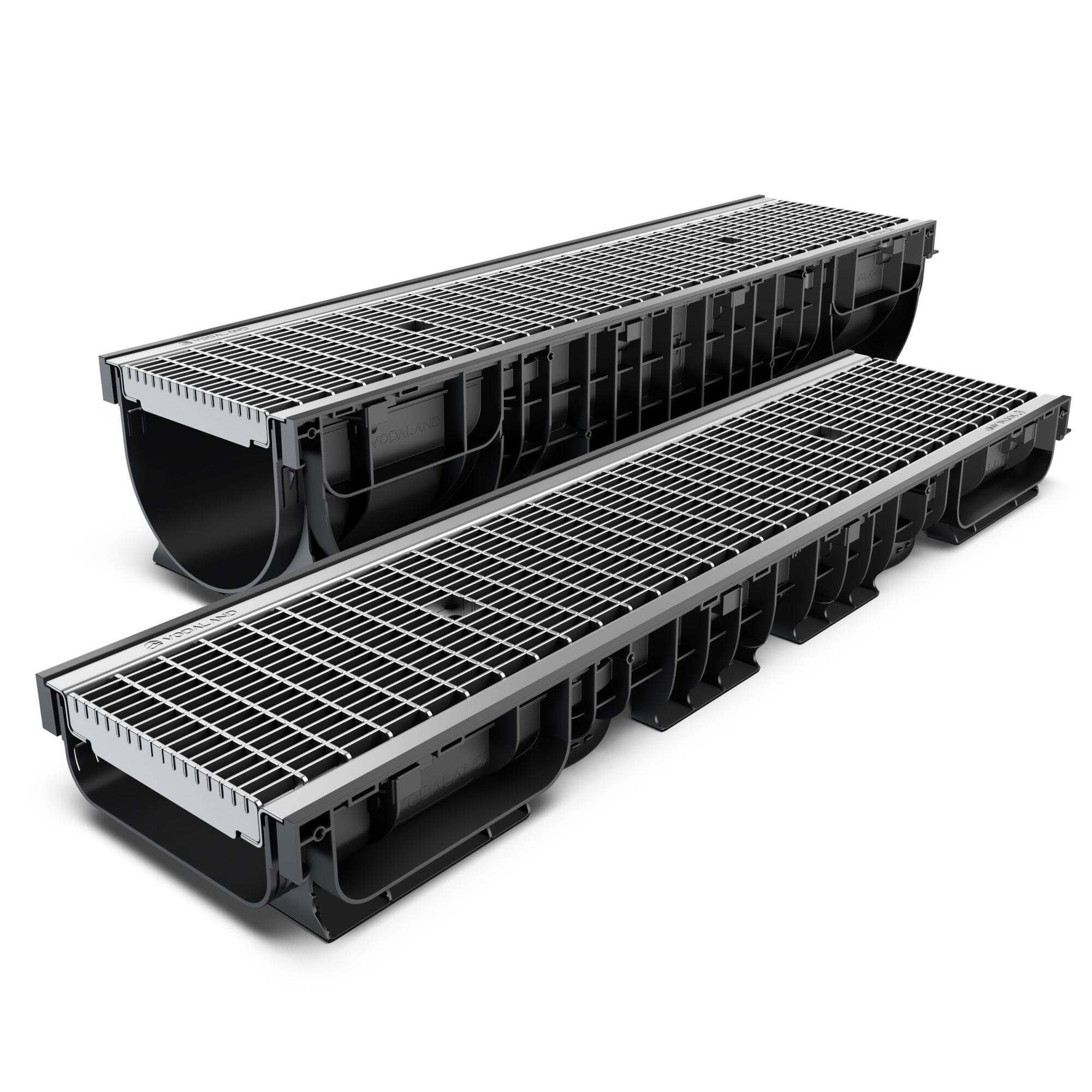

- 4", 8", and 12" depths of channel available (up to your choice)
- PVC or corrugated pipe connections available on the bottom, on sides and on end caps (diameter depends on channel's depth)
- Channels connect end to end and create a line
- Each channel has a 90-degree connection available (no adapters)
- Vehicle load rated
Product Description

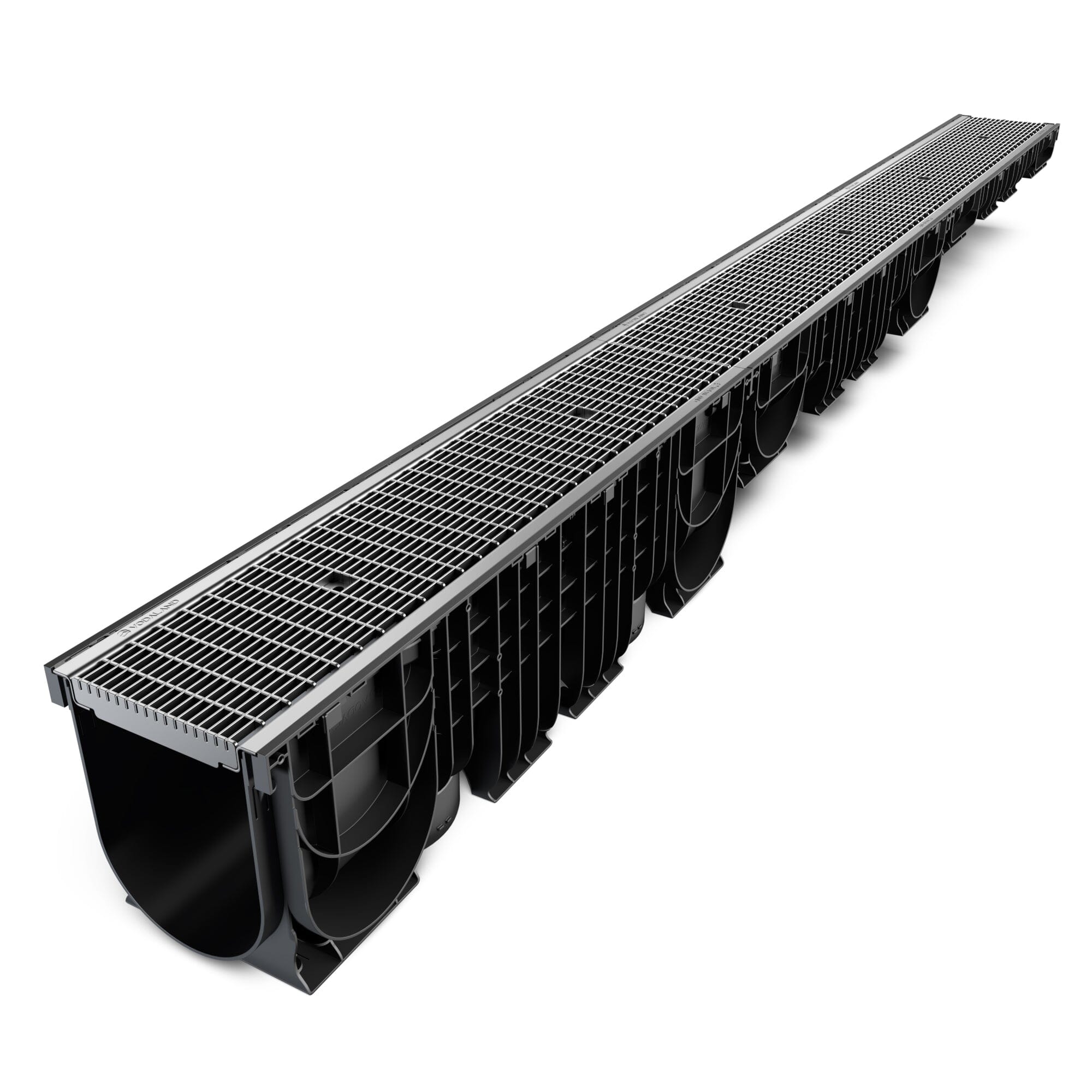

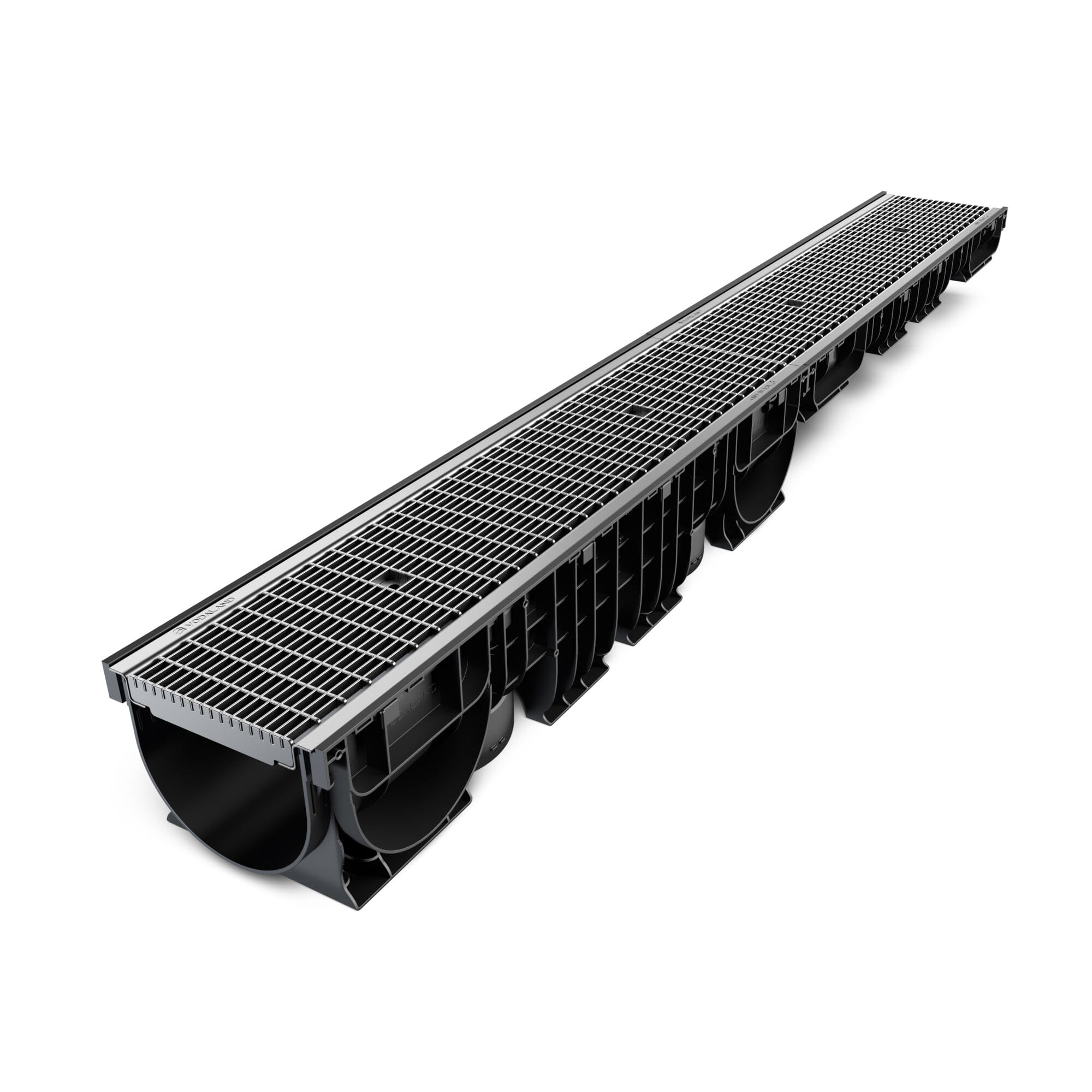

Vodaland’s 8” Base plastic trench drain has an 8” internal width (10” external), and a 3.28ft (1 meter) length. This trench drain comes in 3 external depth options of 4", 8”, and 12". This trench drain comes with an B-class stainless grate. The B load class is designed to withstand vehicle traffic. The plastic channels connect easily to one another to form the customer’s desired length of run. Each channel features a 90-degree connection option so that the system can turn at corners. 1 channel, 1 grate, 2 fasteners, and 2 screws are included in each unit purchased. Closed and outlet end caps are sold separately. Common applications: parking lots, driveways, garage floors, public facilities, and recreation centres.
Article ................ 85002SSGMADA
Material ............. PPE Plastic / Stainless Steel
Dimensions ....... 39.4"L x 10.2"W
Load Class ....... B 15 - Vehicle Rated
CHANNEL OUTLET OPTIONS
Bottom Outlet: 4", 6", and 8" diameter cut-outs
4" and 8" Depth Channel End Outlet: 4" diameter
12" Depth Channel End Outlet: 8" diameter

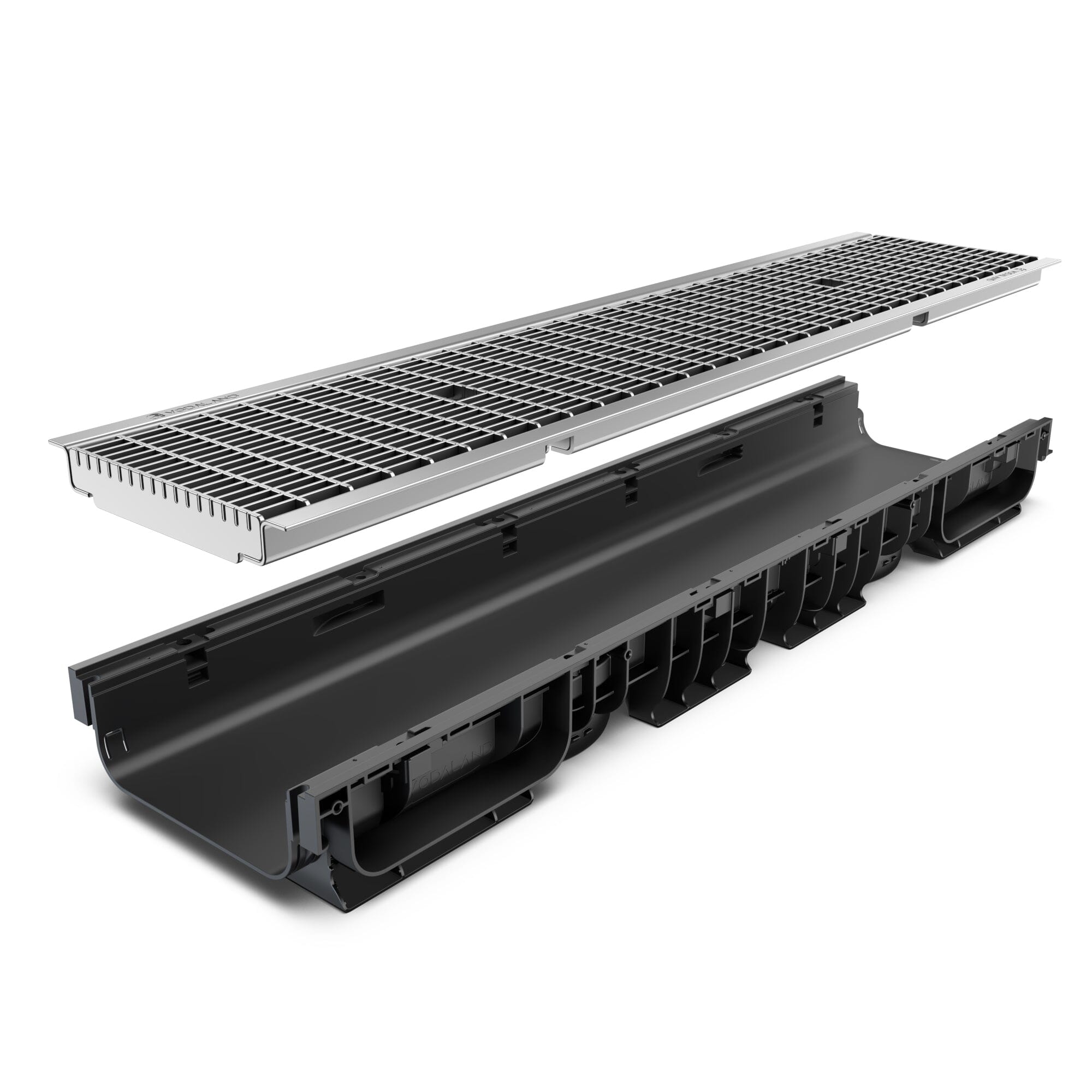

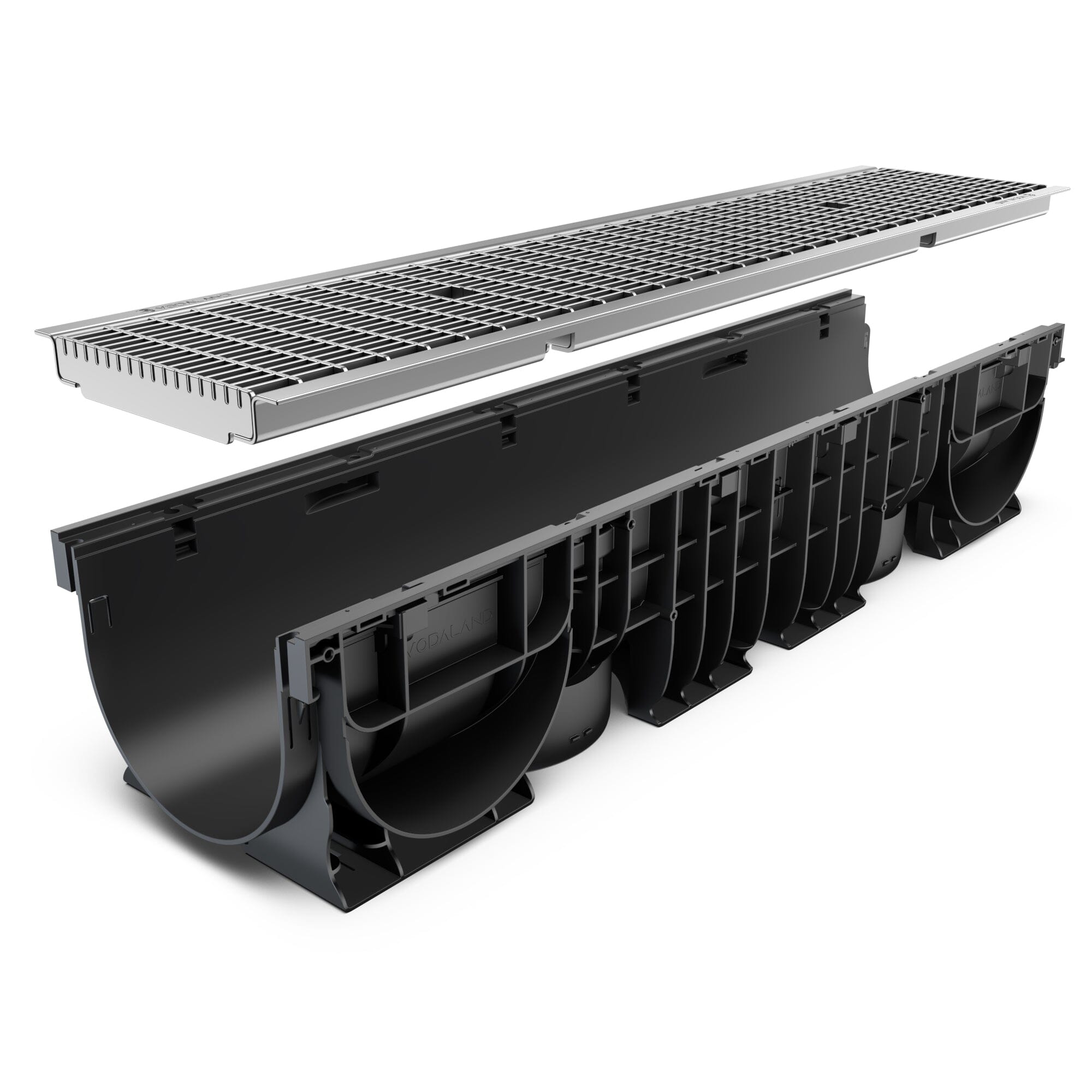

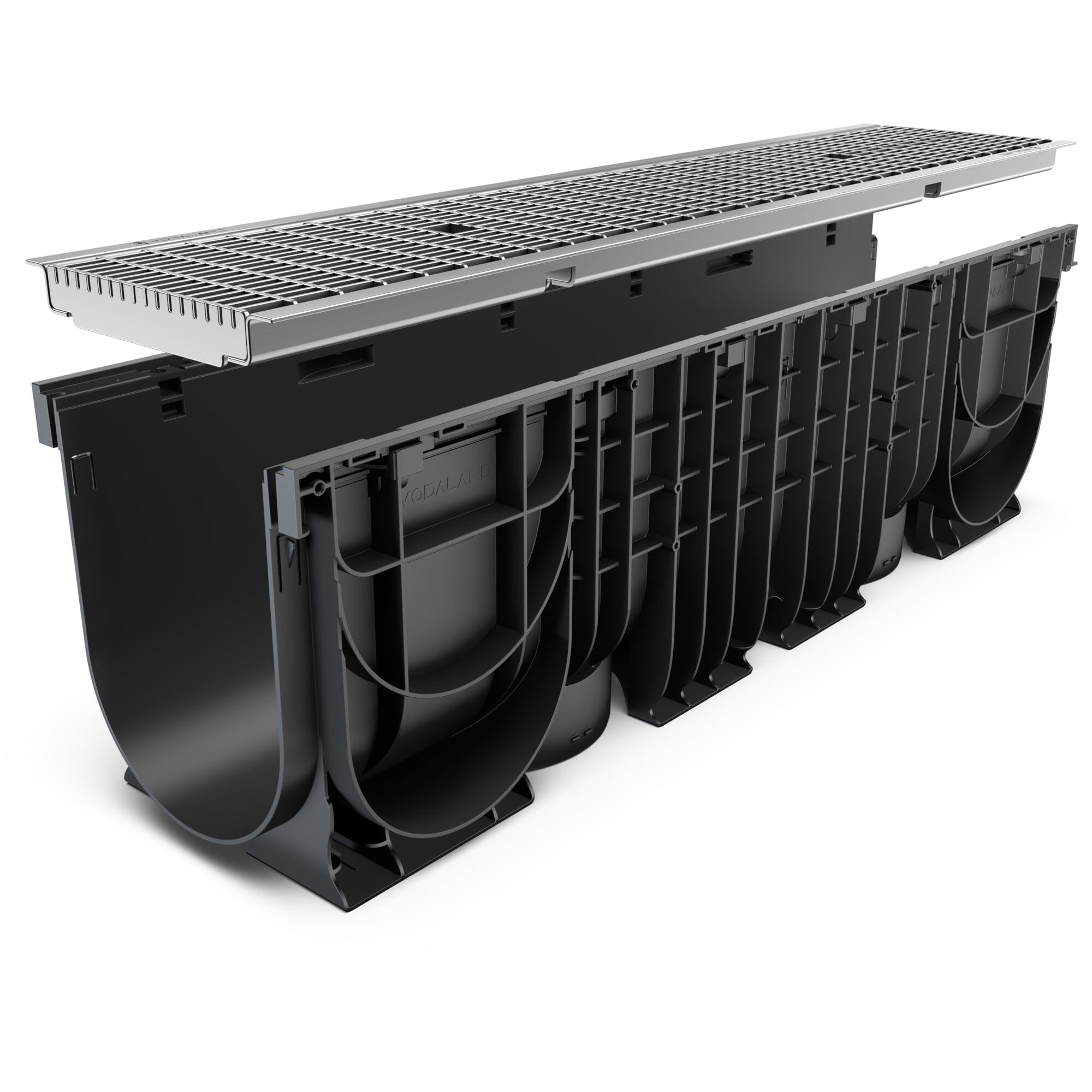

INCLUDED IN EACH METER LENGTH UNIT
1 - Plastic channel
1 - Stamped stainless steel grate
2 - Grating fasteners
Cascade systems will come included with cascade adapters
