Name: 4" EASY 2 plastic trench drain, plastic grate (green)
Brand: Vodaland Canada
Price: 56.00 CAD

Regular price: $56.00
Sale price: $56.00
Regular price
Unit price: per

Shipping calculated at checkout.

PACKAGE SIZE:

Quantity

- +

Sku: 08818-GNPK

Sku: 08818-GNPK3

Sku: 08818-GNPK4

Sku: 08818-GNPK5

Quantity must be 1 or more

Free shipping on orders over $299

Pick Up Option Available

Delivery 3-5 business days

SPECIFICATION

CHANNEL CALCULATOR

Installation videos

Reviews

3D Model

Products that work with this

Suggest a trench drain

Specification and Downloads

4" internal width trench drain system
2.7" external depth
Plastic grating (green)
2" & 4" bottom outlet nozzle (included)
Channels connect end-to-end for longer run
90 degree connection on each side
Pedestrian load rated

Channel drawing

Channel CAD

Installation Brochure

Installation specifications

End cap instructions

Product Description

Vodaland's EASY 2 channels are ideal for home or garden installations. Easy to install due to snap-in connection on both ends of channels. You can turn your system 90 degrees left or right at any end of the channel using a pre-installed snap-in connection located on each side. Grating clicks into the channel and may be easily removed for cleaning purposes. Channel has 4" internal width, 2.2" internal depth and 39.4" (1 m) length. Outside dimensions below.

PARAMETERS

Article ............ 08818-GNPK

Material ......... PPE Plastic

Outside Dimensions ... 39.4"L x 5"W x 3"H

Load Class .... A - Pedestrian Loads

INCLUDED IN PACKAGE

1 - Channel

1 - Plastic Grate (Green)

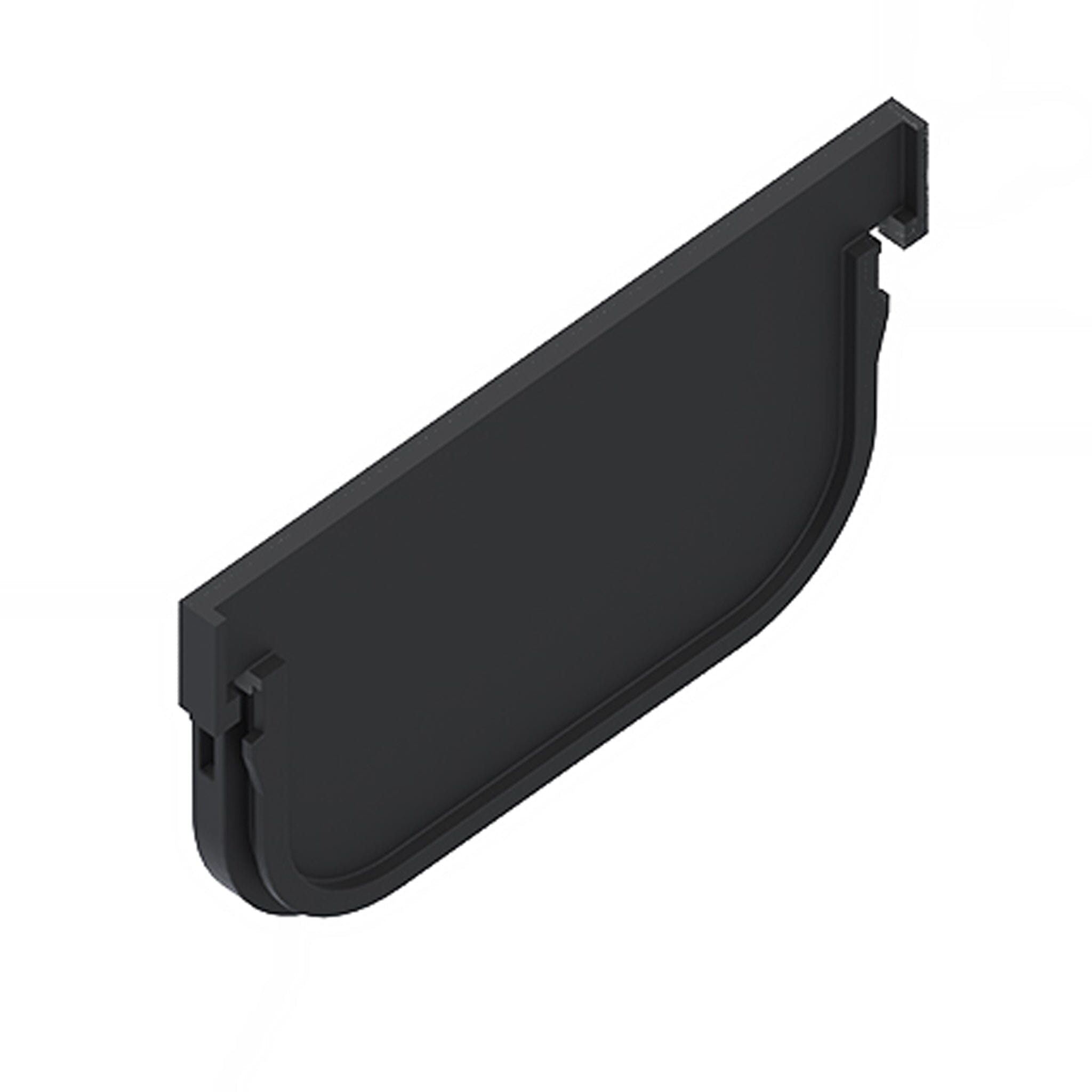

2 - End Caps per PACKAGE (once you add this product to your cart you will be offered an opportunity to purchase additional end caps in a pop-up window)

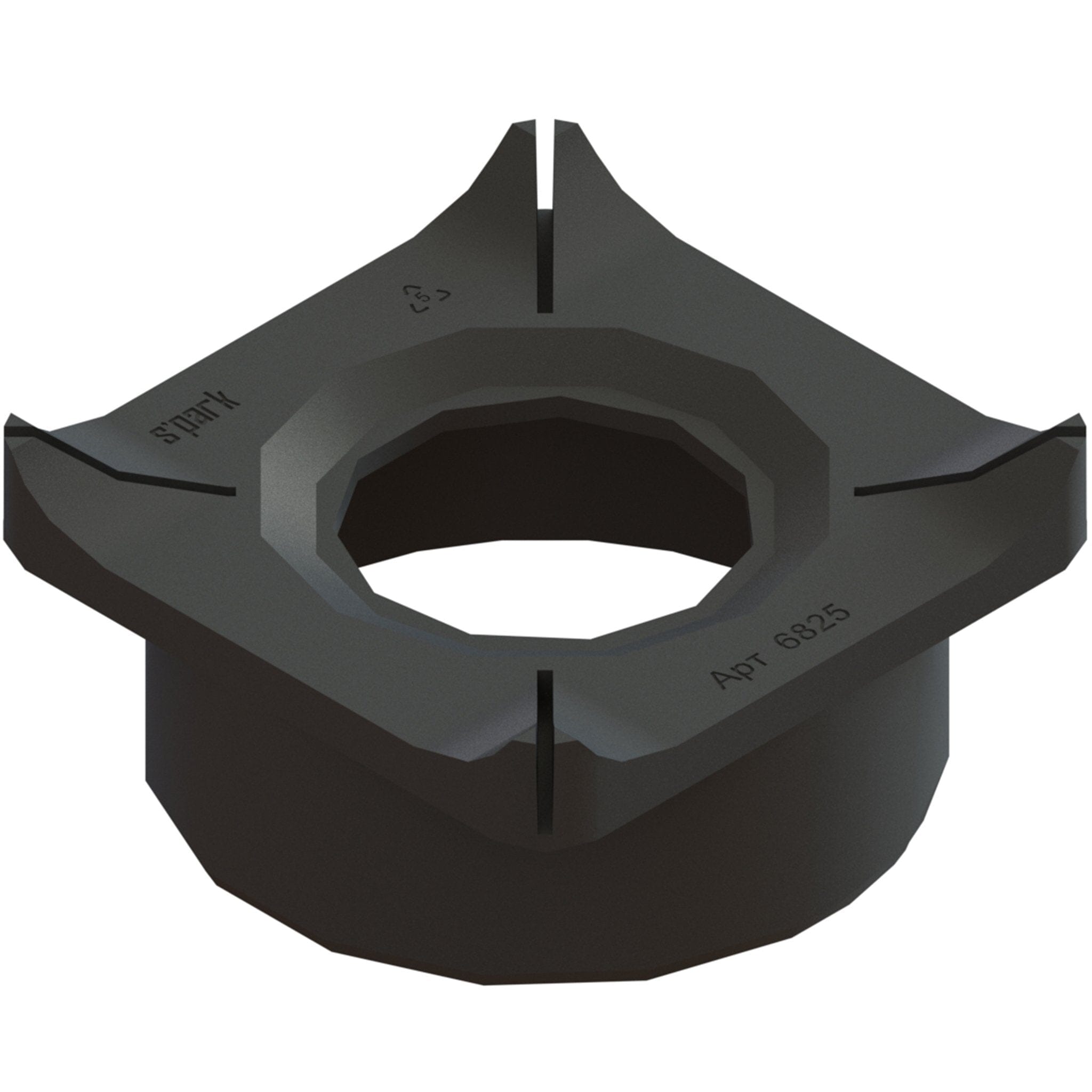

1 - Bottom Outlet Nozzle
