Name: 12x12 Plastic NEO catch basin (NEO 300-CBP), galvanized steel grate ADA
Brand: Vodaland Canada
Price: 205.00 CAD

Prix normal: $205.00
Prix réduit: $205.00
Prix normal
Prix unitaire: par

Frais d'expédition calculés lors du paiement.

Quantité

- +

Sku: 837011GGADAB

La quantité doit être supérieure ou égale à 1

Livraison gratuite pour les commandes de plus de 299 $

Option de ramassage disponible

Livraison 3-5 jours ouvrables

SPECIFICATION

Installation videos

Reviews

3D Model

Products that work with this

Specification and Downloads

12x12 NEO plastic catch basin
Galvanized steel grate
Partition-siphon sold separately
Residential vehicle load rated

Catch basin specification

Catch Basin installation specification

Catch basin drawing

Catch basin CAD

Grating drawing

Grating CAD

Catch basin installation guide

Product Description

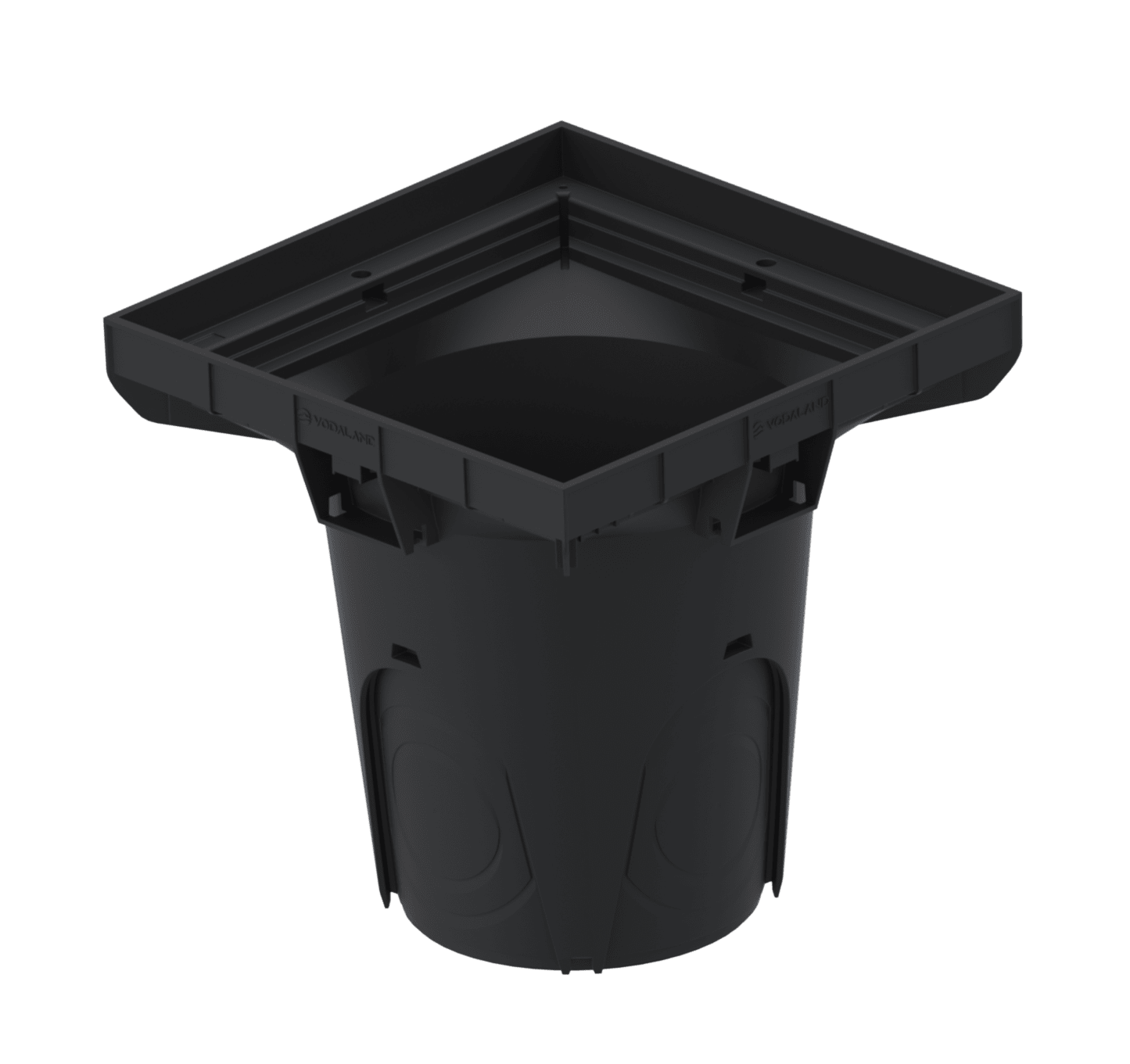

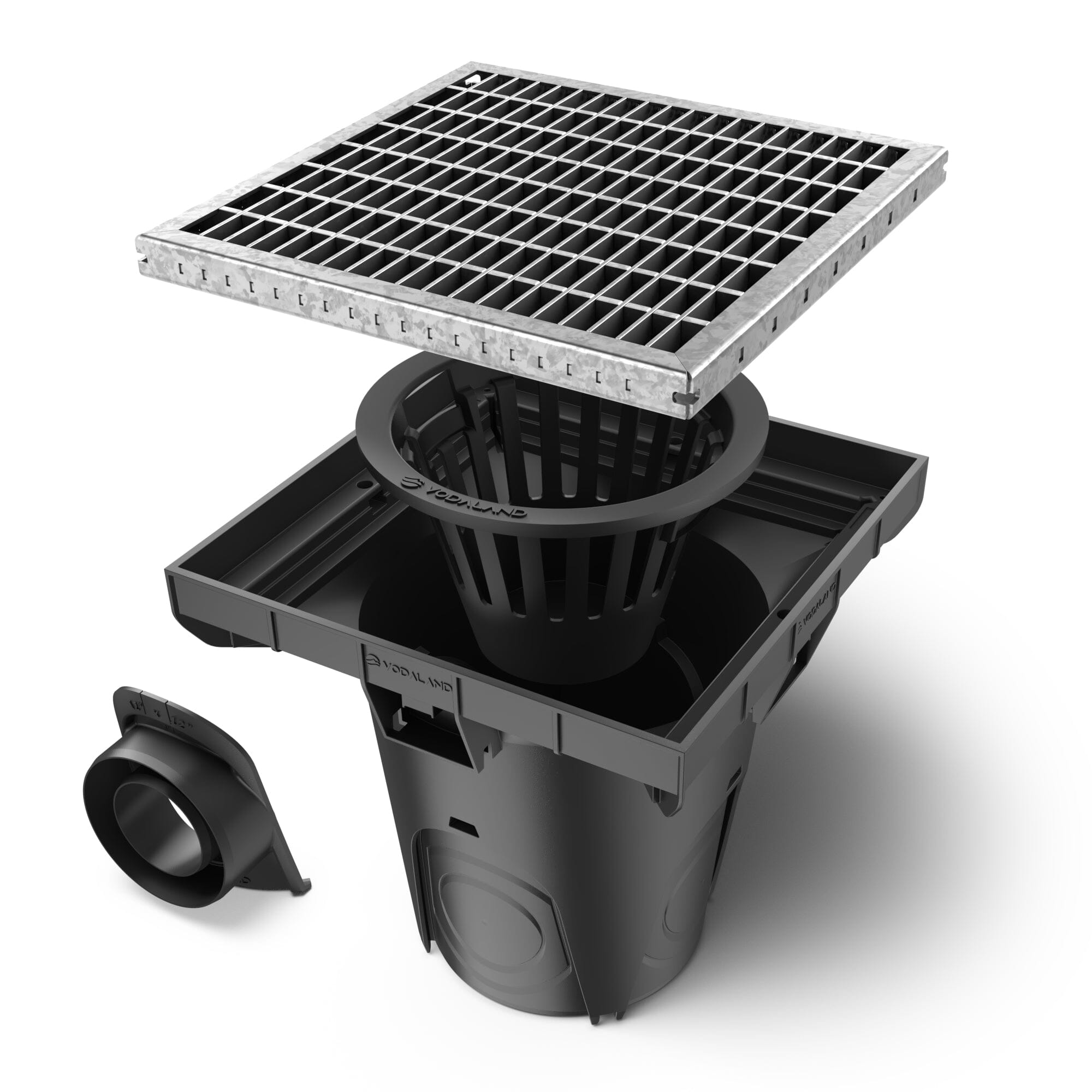

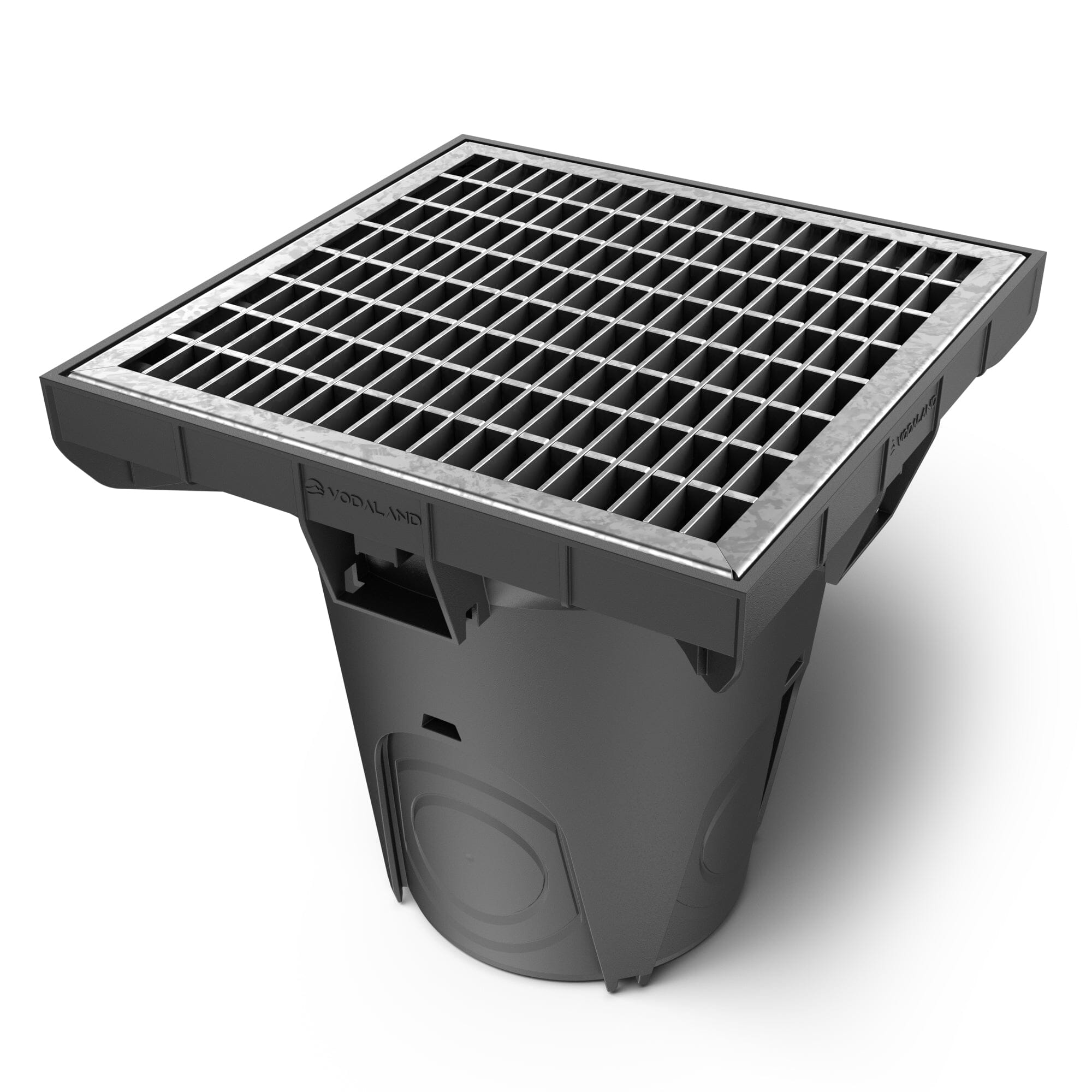

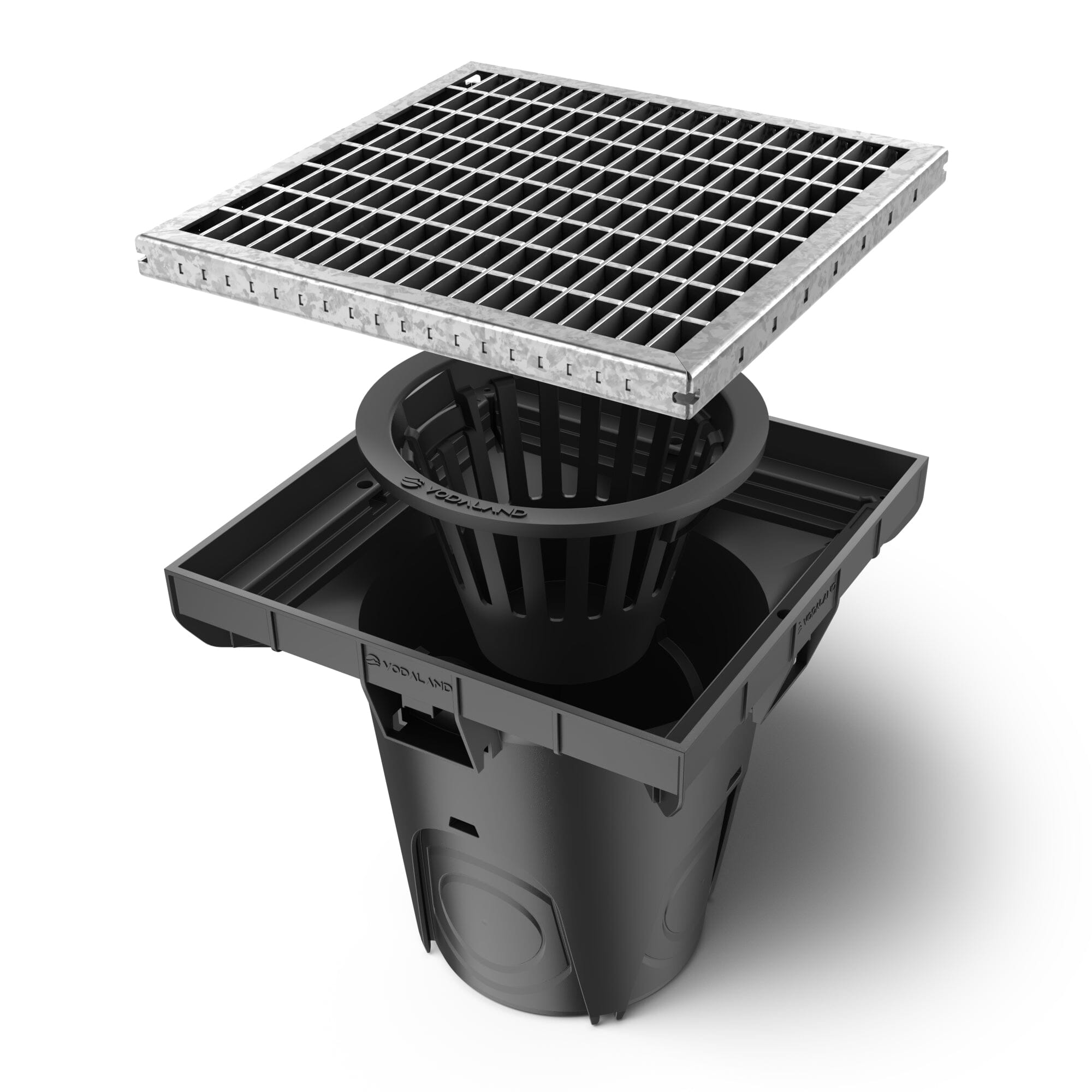

Vodaland's 12x12 Plastic NEO catch basin is a cone shaped basin with a 12" width, length, and height. This catch basin comes with an B-class galvanized steel grate with ADA compliant openings. The B load class is designed to withstand light vehicle traffic.

The basin includes a pipe connection adapter and are available in diameters from 2-1/2”, and 4” (see drawing for details). Alternately, you can use the connection cut outs on the side and bottom directly with various sizes from 2-1/2", 4" and 6". Each basin includes an internal debris basket so that all debris and sediment is separated from the liquid being discharged. Common applications include: driveways, residential garages, public facilities, light commercial facilities, and light commercial traffic.

PARAMETERS

Article ................................ 837011GGADAB

Material ............................. PPE Plastic / Galvanized Stamped Steel

Dimensions ....................... 12" L x 12" W x 12" H

Load Class ....................... B - Residential Vehicle Load

INCLUDED IN PACKAGE

1 - Plastic Catch Basin

1 - Galvanized Steel Grate

1 - Debris Basket

1 - Pipe Connector
