$390.00
$390.00
Épuisé
Frais d'expédition calculés lors du paiement.
- +
Sku: 085813043
Livraison gratuite pour les commandes de plus de 299 $
Option de ramassage disponible
Livraison 3-5 jours ouvrables
SPECIFICATION
Reviews
Suggest a trench drain

Specification and Downloads

  • Compatible with all our 8" PRO plastic trench drains
  • 21-5/8" depth
  • Ductile cast iron grate, D Class
  • Equipped with debris basket for sediment removal
  • Multiple outlets available on all sides
  • 2 adapters
    • Sand Trap PDF
    Sand Trap CAD

    Product Description

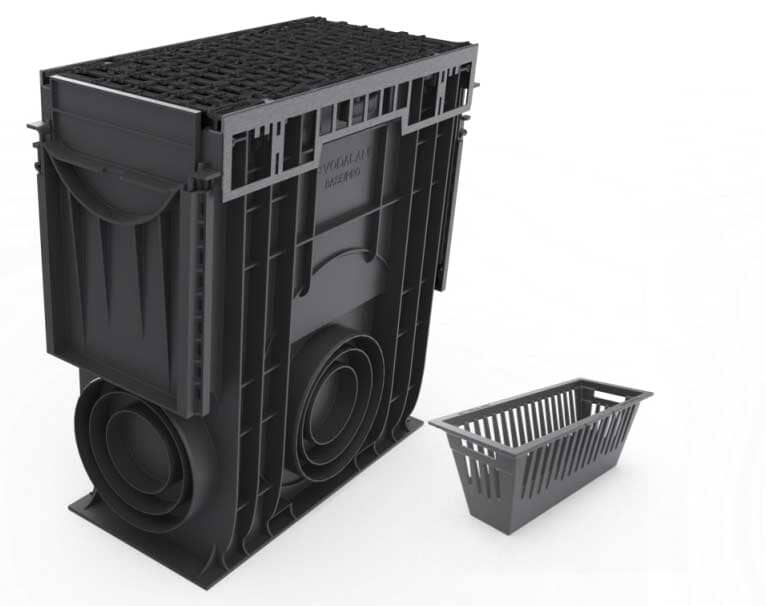

    Vodaland’s 8” PRO plastic sand trap has a 8” internal width (10-1/4” external), 21-5/8” depth, and a 1.64ft (0.5 meter) length. The sand trap comes with a plastic debris basket, 2 adapters and 1 D Class ductile cast iron grate. Each trap has cut-out templates on each side to allow connection with 6”, and 8” PRO trench drains. Also allows for connection with 4”, 6”, 8” and 12” piping. Common Applications: Gas stations, commercial loading docks, industrial facilities, municipal equipment yards, and high-traffic commercial driveways.

    PARAMETERS


    Article ............................ 085813043

    Material ........................ Plastic

    Grate .............................. Ductile cast iron

    Dimensions ................. 19-5/8" L x 10-1/4" W x 22-1/4" H

    Weight, Ib (kg)................ 25.17 (11.4)

    Load Class ................. D400
