Name: 4" Plastic trench drain (BASE 100P), galvanized grate "perforated" ADA/Heel Proof, A Class
Brand: Vodaland Canada
Price: 108.00 CAD

Specification and Downloads

Purchase include galvanized steel grate, channels, and grating fasteners
4" internal width galvanized steel grate
PVC or corrugated pipe connections available on the bottom and from end caps
Channels come in meter lengths, and connect end-to-end to meet a desired length.
Each channel has a 90-degree connection option available (no adapters)
Pedestrian load rated
Recommended to purchase 2 mounting brackets and 4 rebar supports per trench drain (sold separately)

Specification sheet

Neutral channel drawings pdf

Sloped channel drawings pdf

Neutral channel drawings CAD

Sloped channel drawings CAD

Grate PDF

Grate CAD

Installation Brochure

Installation specifications

Product Description

Vodaland’s 4” plastic trench drain (BASE 100P) has a 4” internal width (6” external), and a length of 3.28ft (1 meter). Customers can choose between a 1% pre-slope or a non-sloped system. The pre-slope systems come in multi-channel bundles up to your required length (maximum 13 meter lengths). The non-slope systems are sold per unit but can be connected together to create a system with whichever length you require.

This trench drain uses an A-class galvanized steel grate with perforated openings to meet ADA/Heel Proof requirements. The A load class is designed to withstand pedestrian traffic.

Each channel features a 90-degree connection cut-out option on each side to allow for a corner 90-degree turn without the need for additional parts.

Every 1m length purchased comes with 1 plastic channel, 1 grate, 2 fasteners, and 2 screws. Closed and outlet end caps are sold separately.

Suitable for use in:

Patios
Recreation centers
Walkways
Sidewalks

PARAMETERS
Article ................ BASE100P-GGP
Material ............. PPE Plastic / Galvanized Stamped Steel
Dimensions ....... 39.4"L x 5.8"W
Load Class ....... A - Pedestrian Loads

CHANNEL OUTLETS

Bottom outlet: Every channel features a 4” bottom outlet for connection with piping. This outlet comes closed and must be cut out for use.

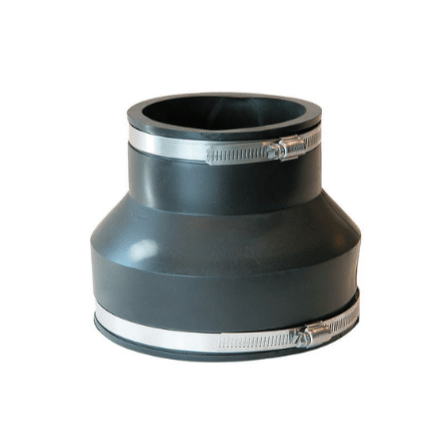

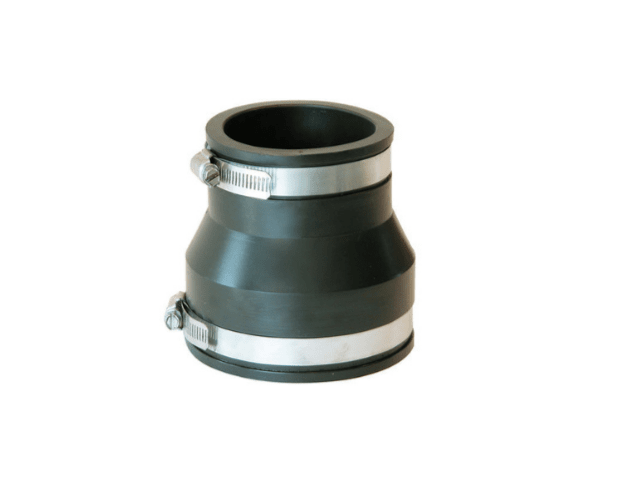

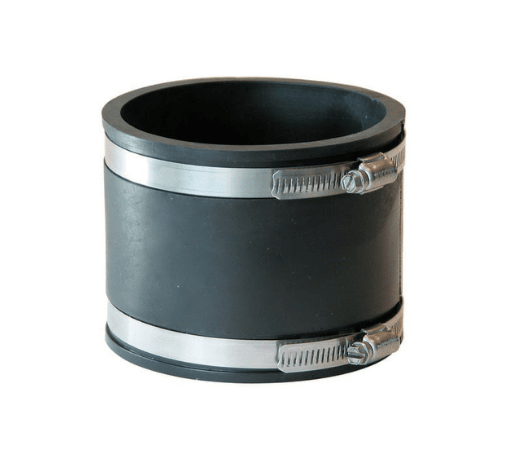

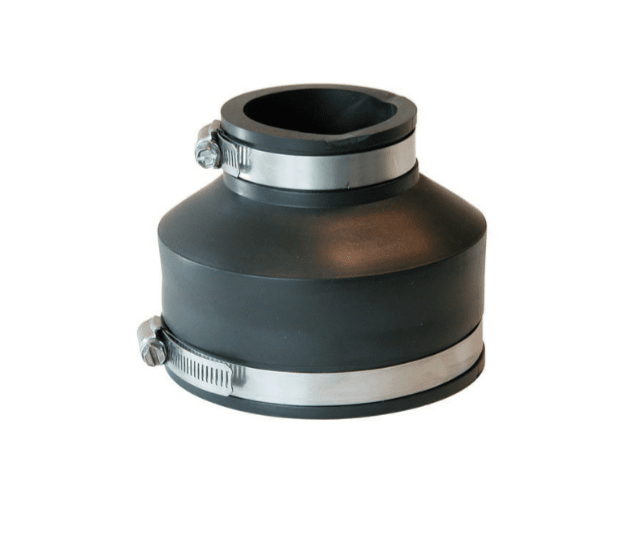

Outlet sizing: Our outlets are sized to fit European sized piping. To connect with North American sized piping, you will require either one of Vodaland’s plastic pipe adapters (sold separately), or a rubber coupling (sold elsewhere).

IF YOU REQUIRE A SYSTEM THAT IS MORE THAN 13 METERS IN LENGTH, OR NEED A COMBINATION OF PRE-SLOPE/NO-SLOPE CHANNELS, PLEASE CALL A VODALAND REPRESENTATIVE.
