Specification and Downloads
- Package includes steel reinforced channel with ductile cast iron grate

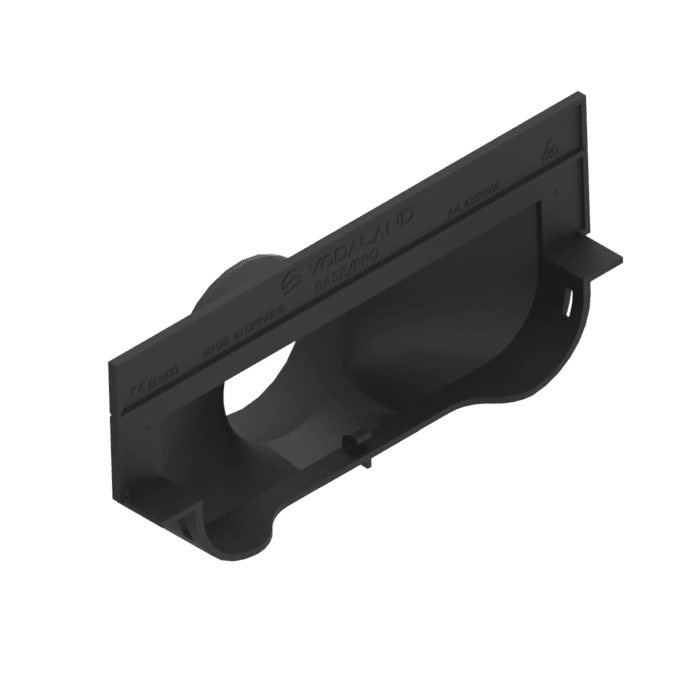

- 2 end caps will be included for free with entire order

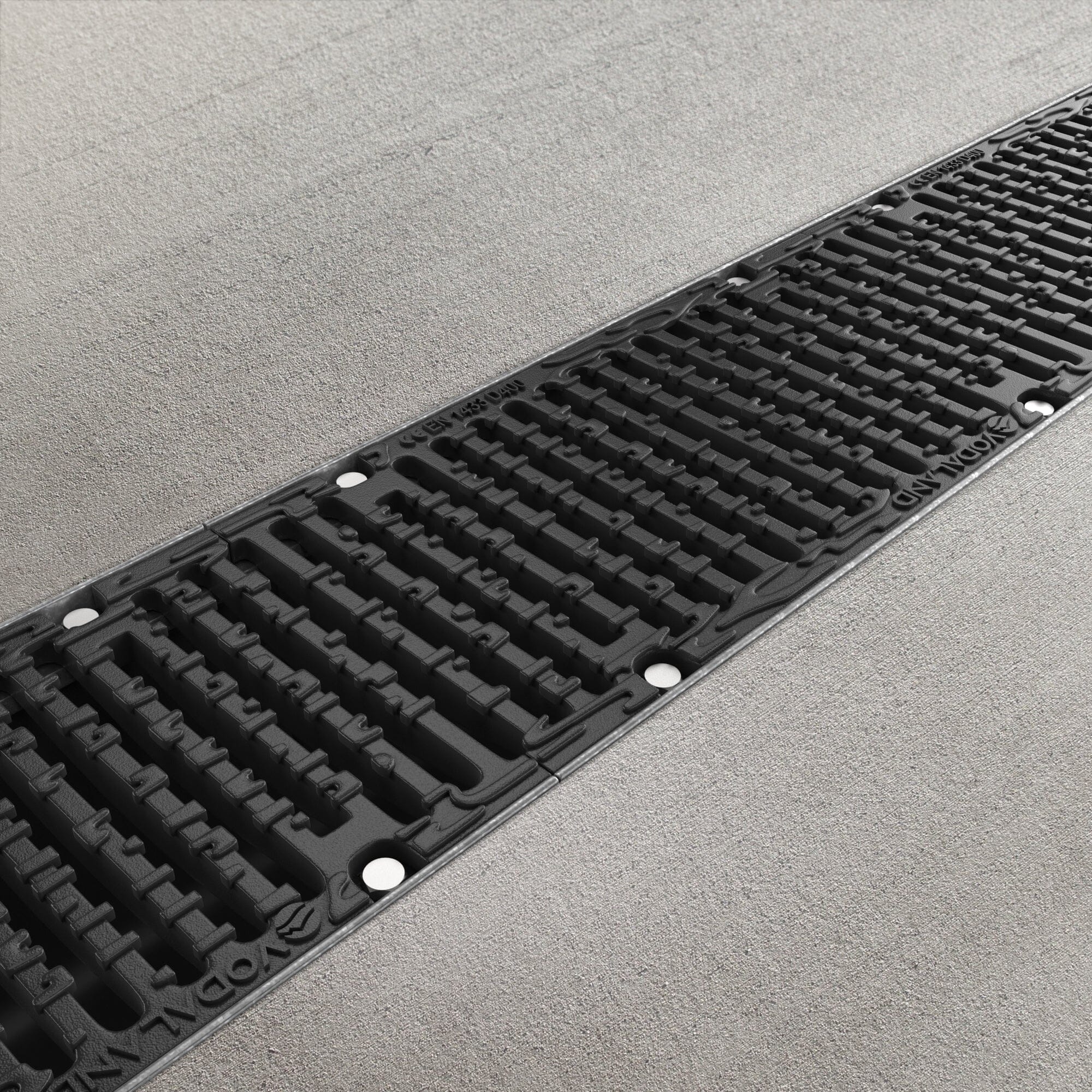

- 8" internal width heavy duty ductile cast iron grate
- Channel depth 8.5"
- Grates are bolted to steel reinforced channel

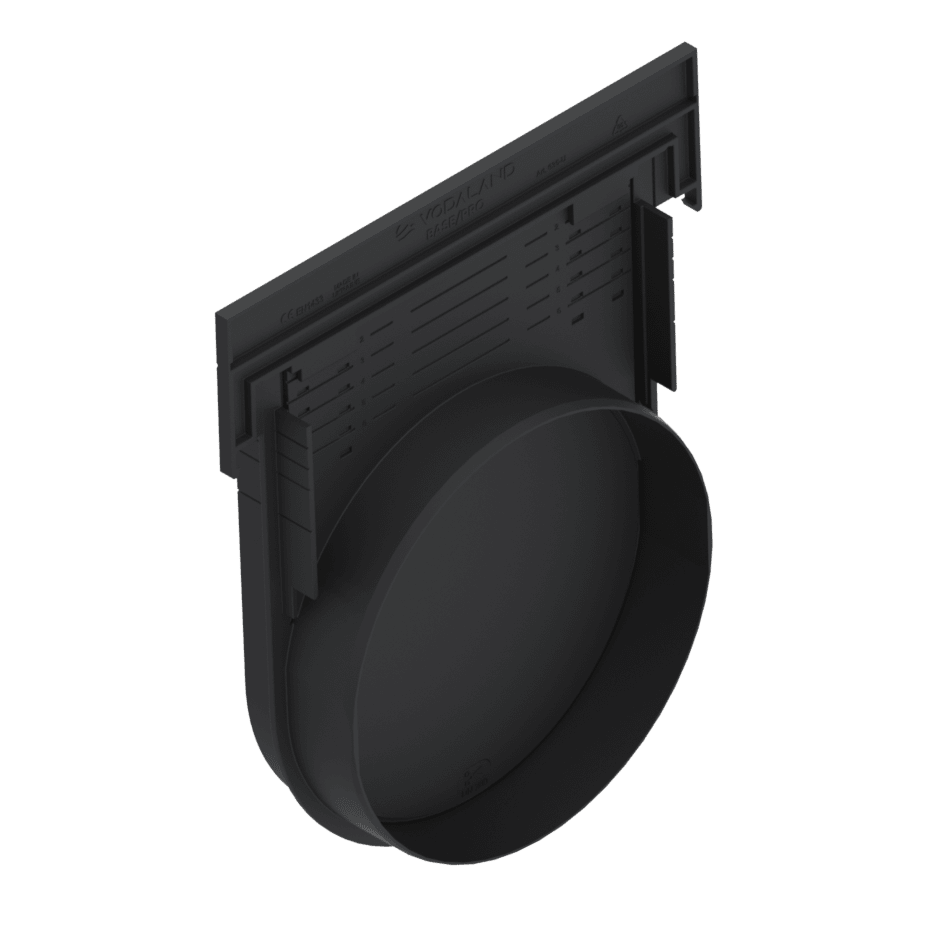

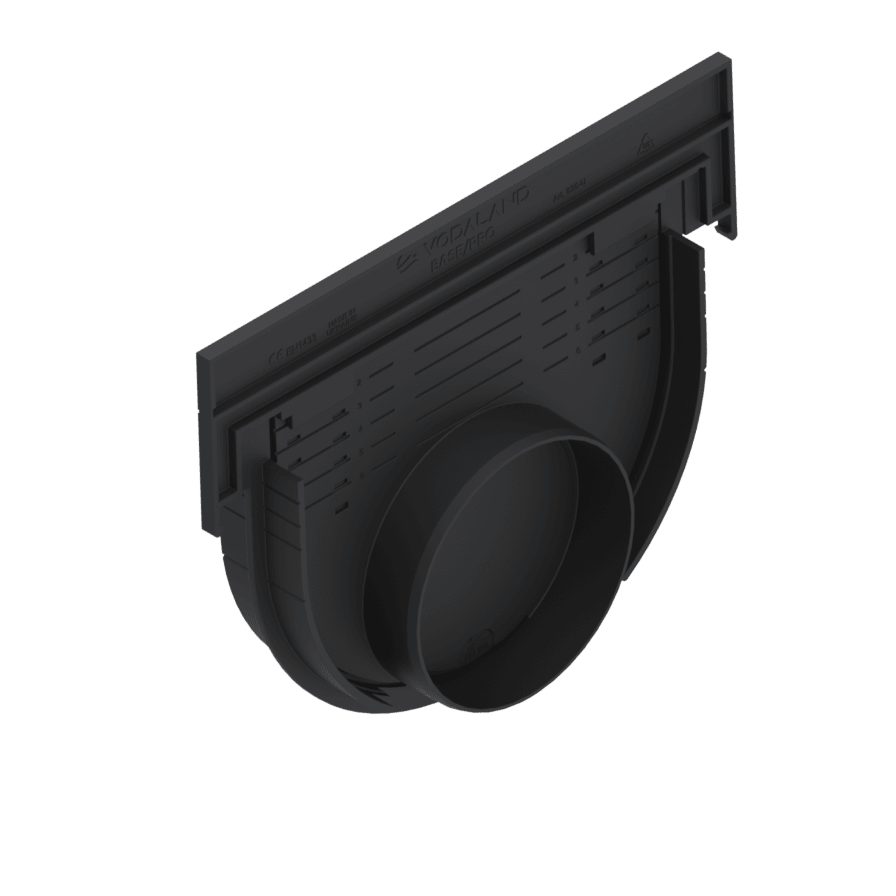

- PVC or corrugated pipe connections available on the bottom 4" and 6" and on end caps 4"
- Channels connect end to end and create a line
- Each channel has 90 degree connection available (no adapters)
- Cascade option available for slope installation
- Heavy duty load

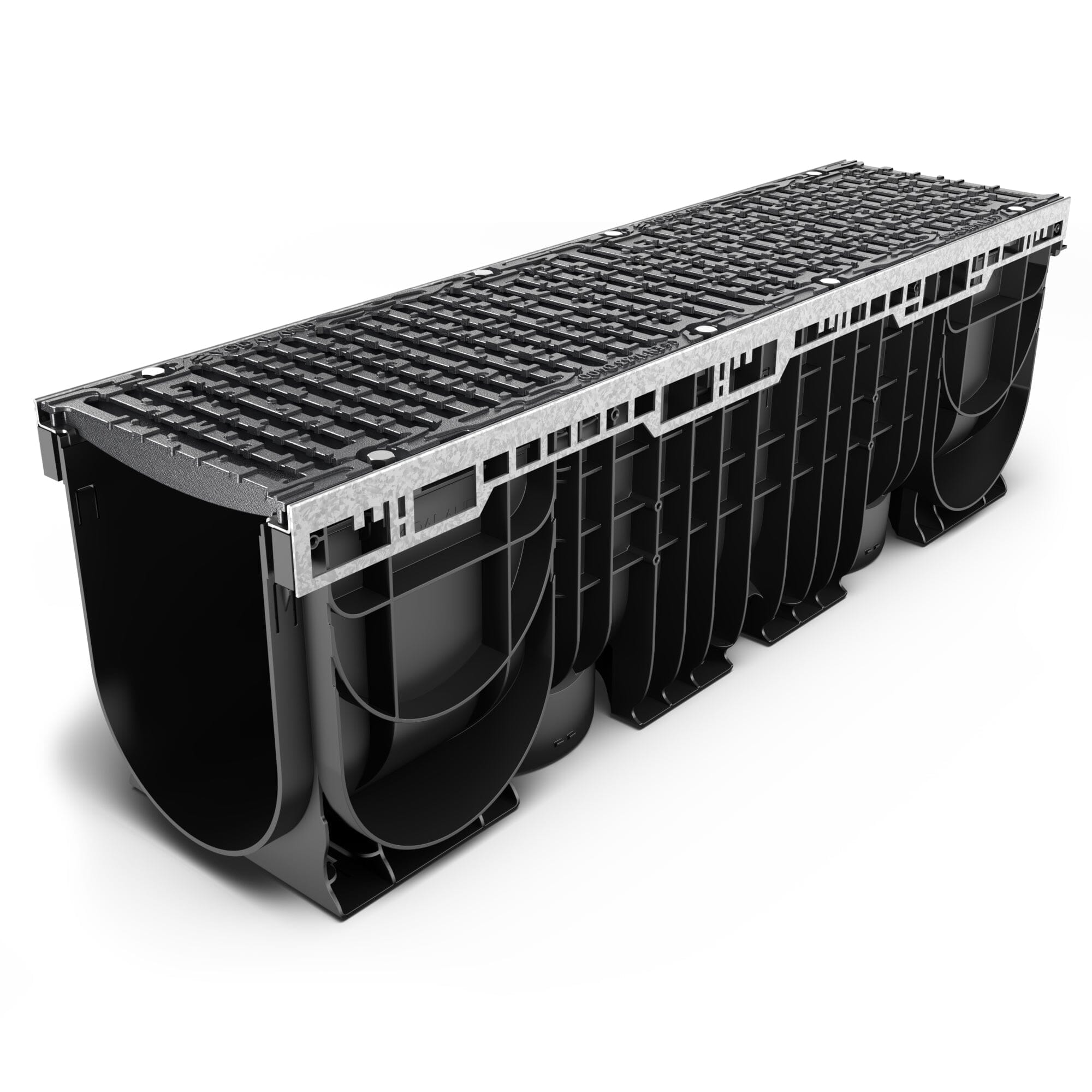

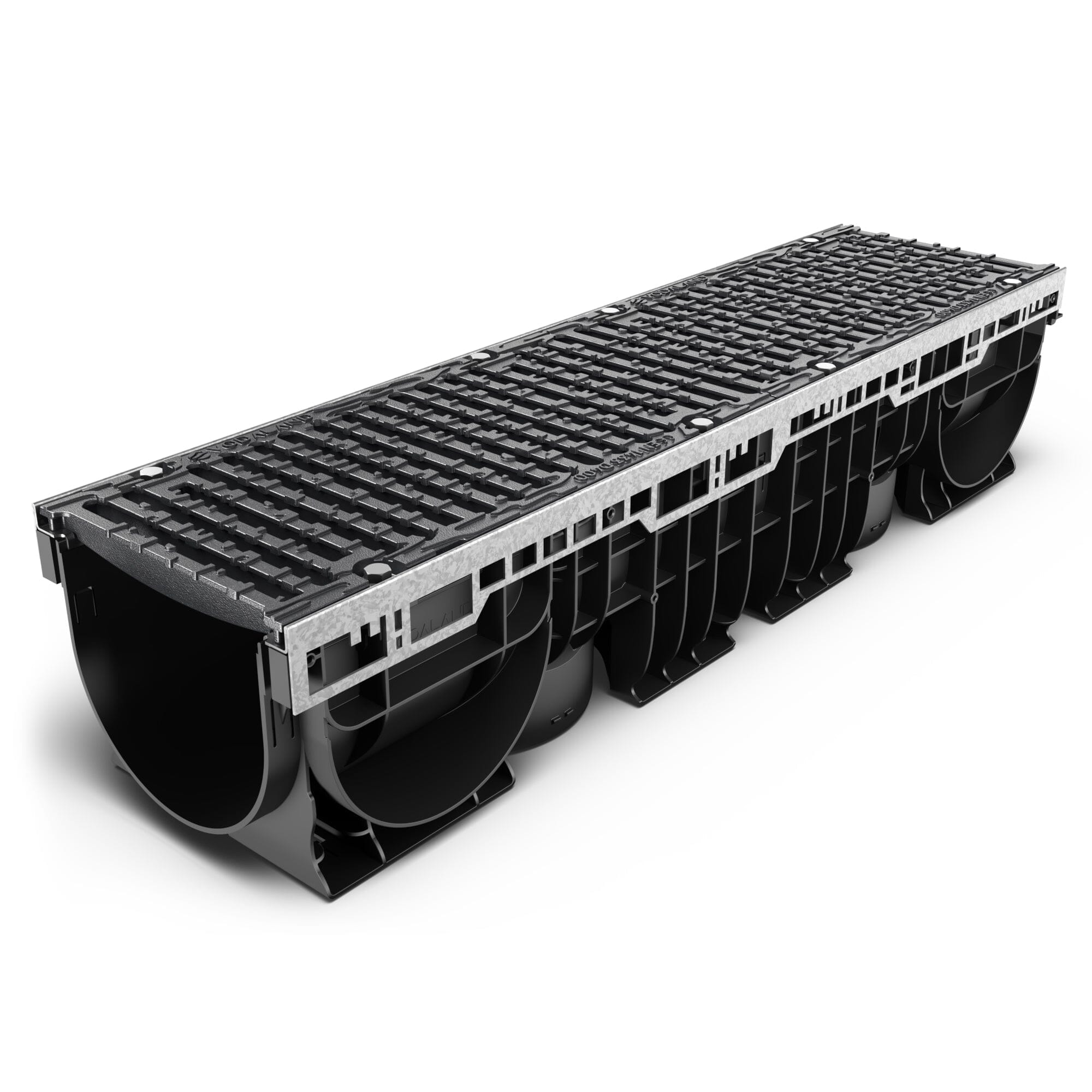

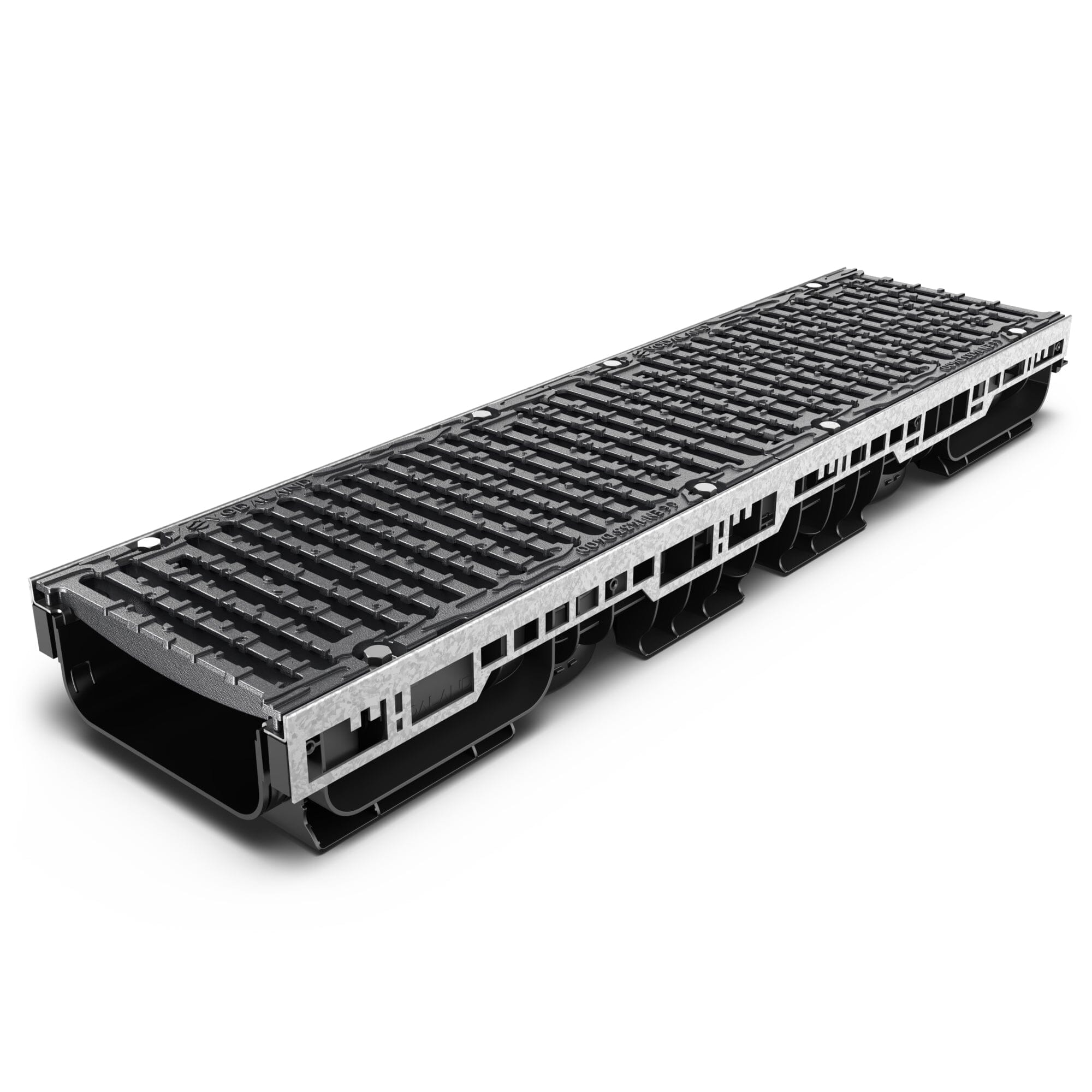

Vodaland’s 8” Pro plastic trench drain has an 8” internal width (10-1/4” external), and a 3.28ft (1 meter) length. This trench drain comes in an external depth of 8-1/2”. This trench drain comes with a D-class ductile cast iron grate. The D load class is designed to withstand heavy-duty traffic including tractor trailers, forklifts, machinery, etc. The plastic channels connect easily into one another to form the customer’s desired length of run. Each channel features a 90-degree connection option so that the system can turn at corners. 1 channel, 2 grates, and 8 fastening bolts are included in each unit purchased. 2 end caps are included for free with the entire order. Common applications: warehouses, loading docks, roadways, industrial plants, heavy-duty garages and maintenance shops.
Article ................ 085434PK
Material ............. PPE / Galvanized Steel / Ductile Cast Iron
Dimensions ....... 39.4"L x 10.3"W x 8.5"H
Load Class ....... D - Super Heavy Duty Load
INCLUDED IN PACKAGE
1 - Reinforced Channel with bolted Ductile Cast Iron Grate

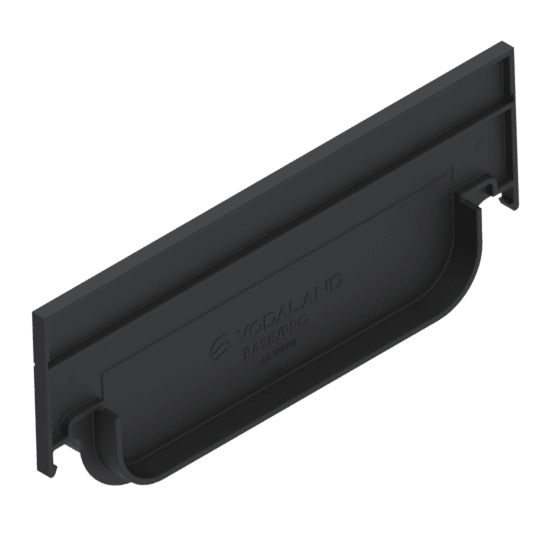

2 - End Caps*
*extra end caps at checkout
