Specification and Downloads
- 3" internal width trench drain with galvanized steel grating
- 3.5" external depth
- Channels connect end-to-end for longer run
- 90 degree connection on each side
- Pedestrian load rated
Product Description

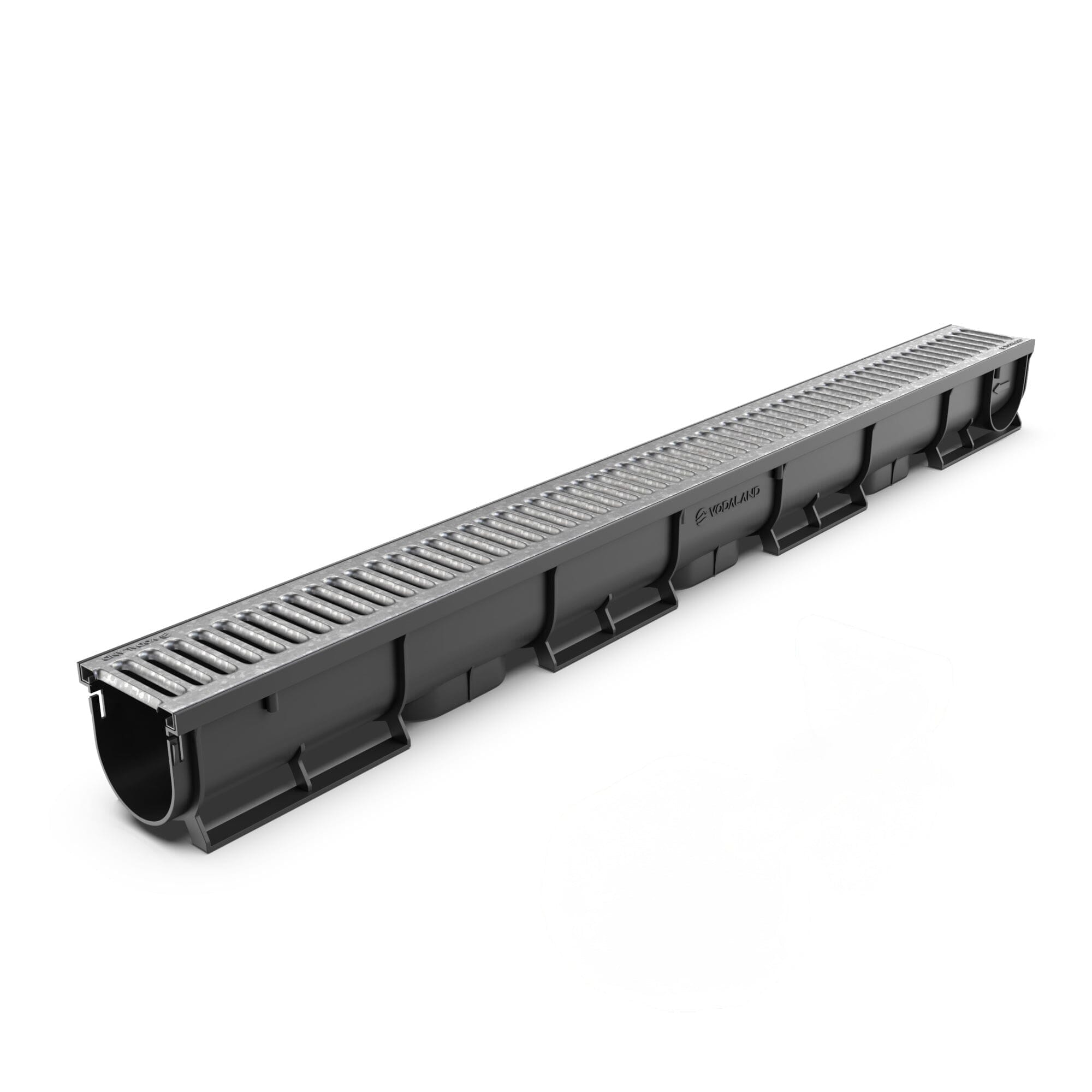

Vodaland's EASY 1 channel has 3" internal channel width, 3.2" internal depth and 39 inches (1m) length. It is supplied with click-in galvanized steel grating. Load class A - Pedestrian Use. No need for adapters since channels have 90 degree turn options on both sides. Easy to connect channel-to-channel, just snap in end-to-end.
PARAMETERS
Article ........... 088011PK
Material ........ PPE Plastic / Galvanized steel
Outside Dimensions .. 39.4"L x 3.5"W x 3.5"H
Load Class ... A - Pedestrian Loads
INCLUDED IN PACKAGE
1 - Channel
1 - Galvanized Steel Grate
| Metric |
3" EASY 1
Galvanized Grate |
3" EASY 1
Stainless Grate |
4" EASY 2
Plastic Grate |
4" EASY 2
Stainless Grate |
|---|---|---|---|---|
| Channel Material | PPE Plastic | PPE Plastic | PPE Plastic | PPE Plastic |
| Grate Material | Galvanized Steel | Stainless Steel | Plastic (Dark Gray) | Stainless Steel |
| Channel Width | 3" internal (≈3.5" external) | 3" internal (≈3.5" external) | 4" internal (≈5" external) | 4" internal (≈5" external) |
| Load Class | A – Pedestrian Loads | A – Pedestrian Loads | A – Pedestrian Loads | A – Pedestrian Loads |
| Price | CAD $45.00 | CAD $80.00 | CAD $56.00 | CAD $92.00 |
