Specification and Downloads

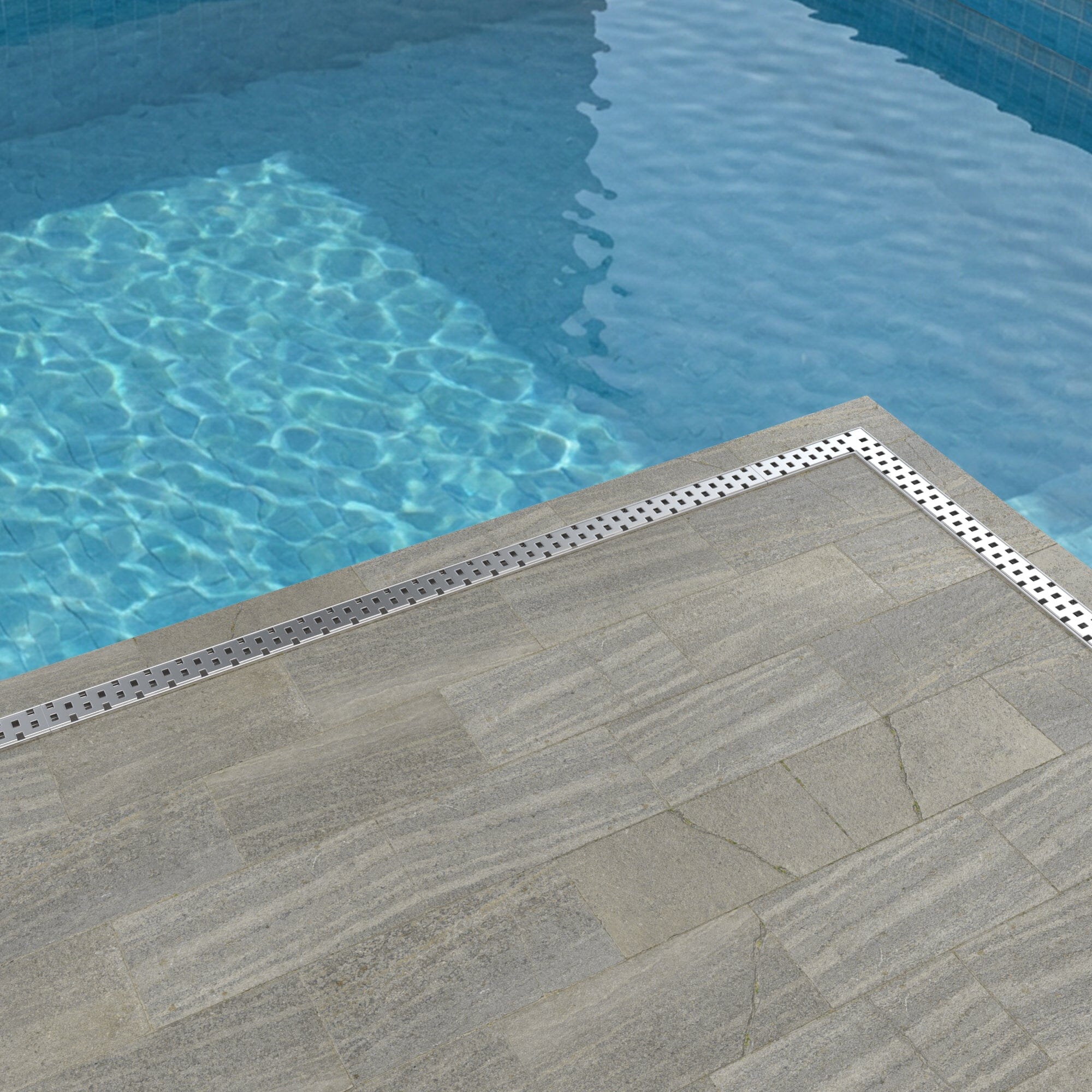

- Perfect for pools, patios, and backyards
- Length from vertex to end of 7-7/8" (200mm)
- Channel width of 2" (50mm) & total height of 3" (76mm)
- Material - Stainless steel
- Chemical and corrosion-resistant
- Perforated grate
- Used with deck drain channels to create a 90-degree turn
- Pedestrian rate (Load Class A)
Product Description

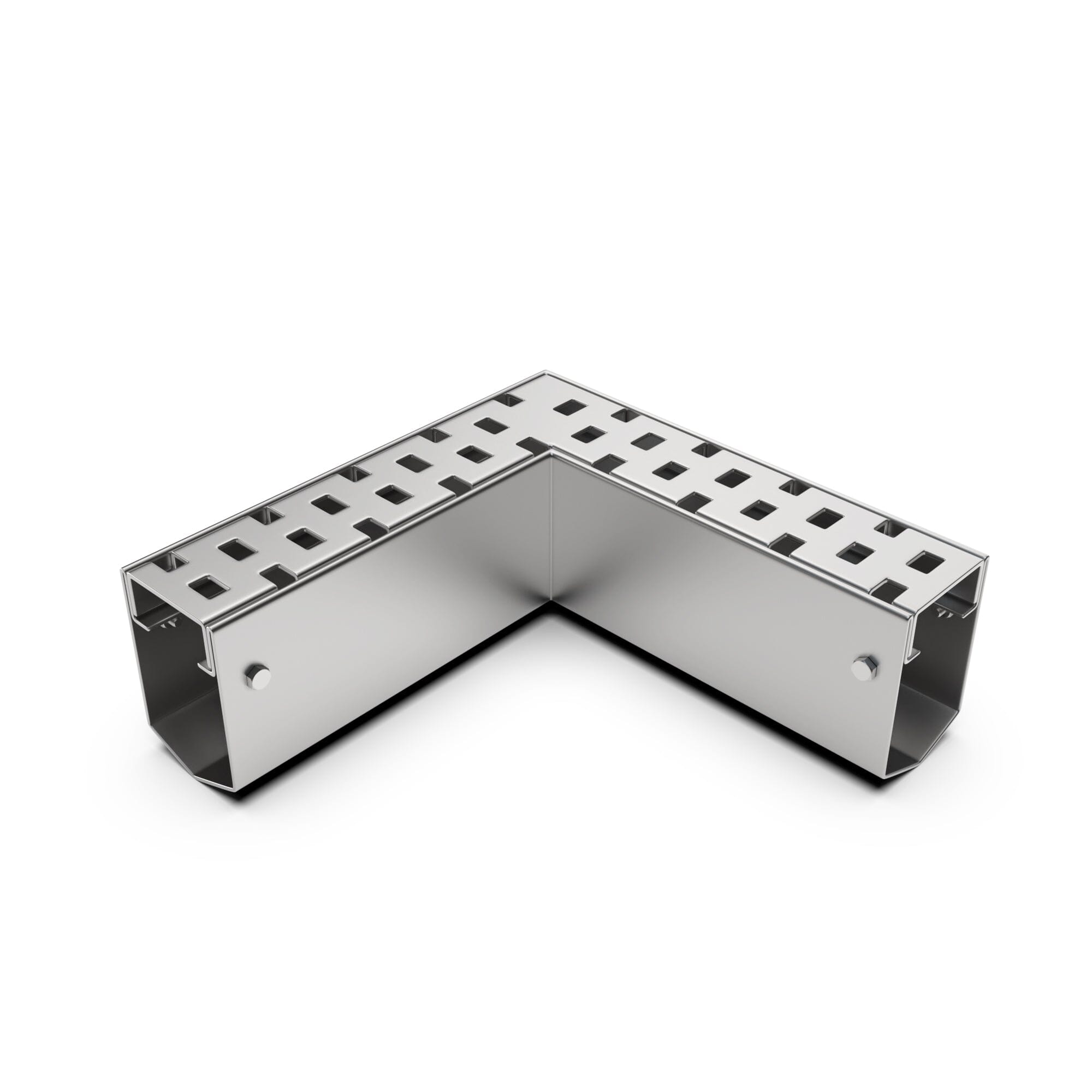

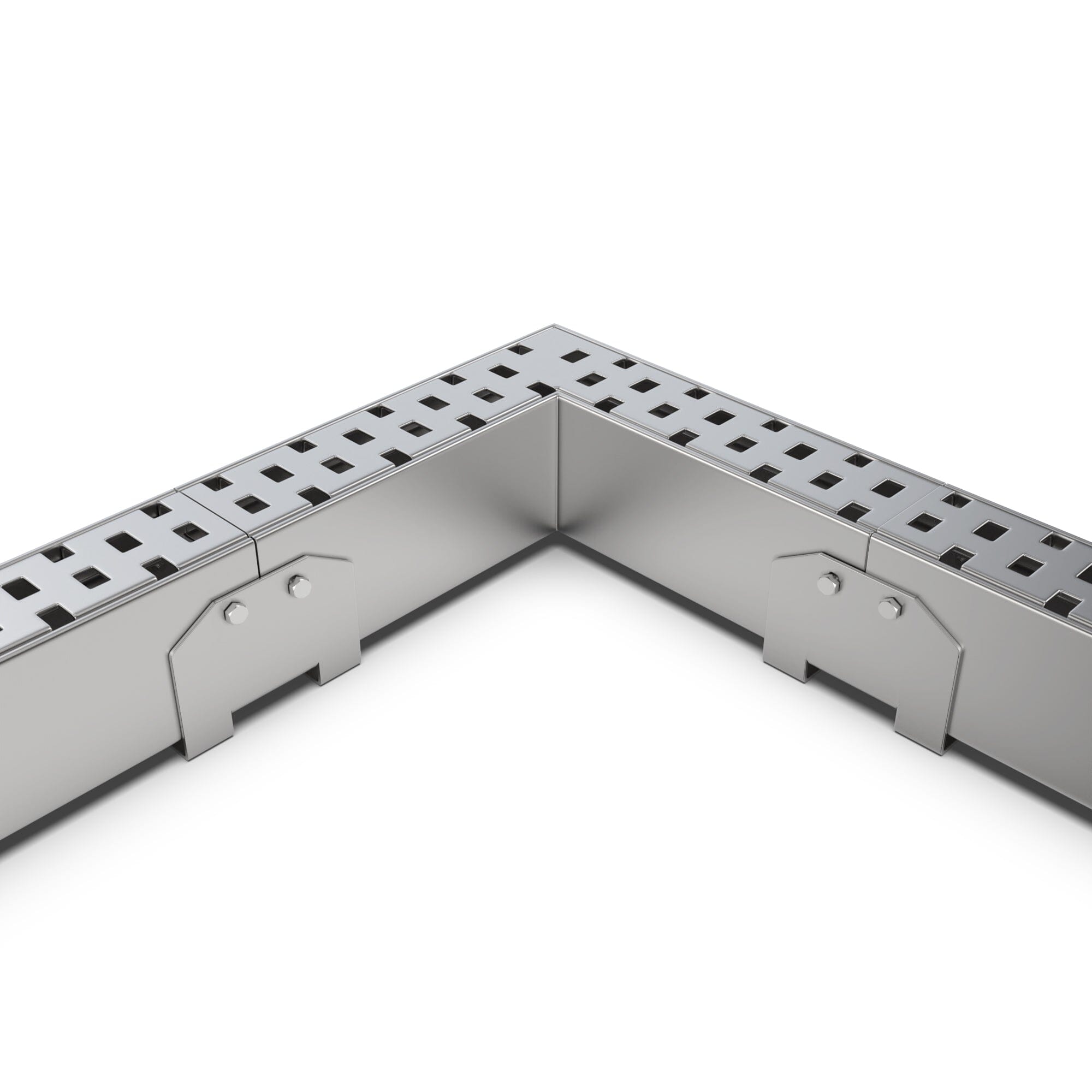

Designed to seamlessly join two standard deck drain channels, this component allows your drainage system to navigate 90-degree corners. Constructed from high-quality stainless steel, it includes a matching perforated grate. Please note that a channel connector is required to secure the 90-degree unit to a standard run. Compatible with deck drain channel end caps.
PARAMETERS
Article ................ 994056-P
Material ............. Stainless steel
Dimensions ...... 7-7/8" x 7-7/8" (200mm) length - 2" (50mm) channel width
Height ...... 3" (76mm)
Load Class ....... A Class (pedestrian load)
INCLUDED IN PACKAGE
Stainless steel Deck 90-degree channel
Stainless steel Deck 90-degree grate (perforated)
** Please contact us for any additional requests or clarifications **
