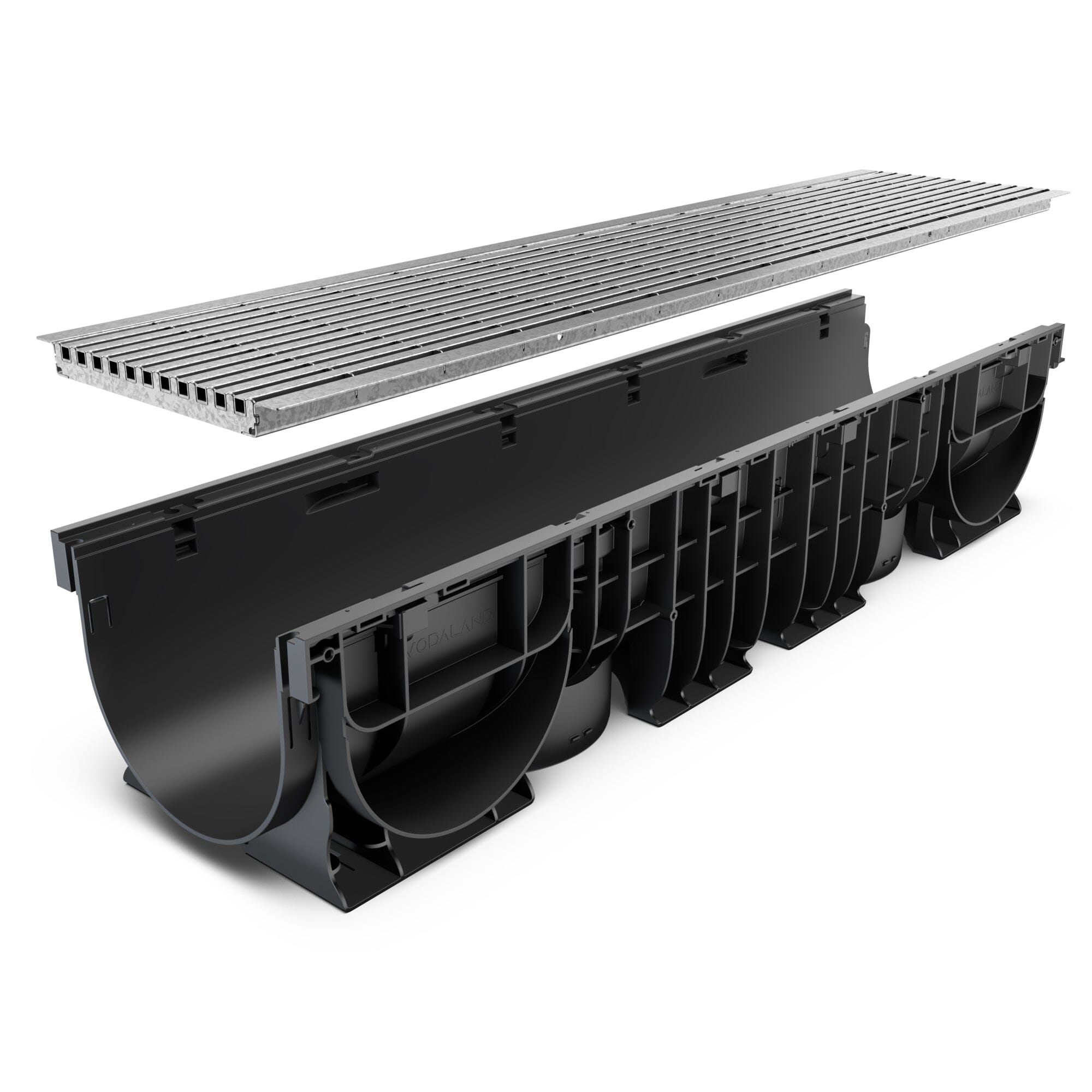

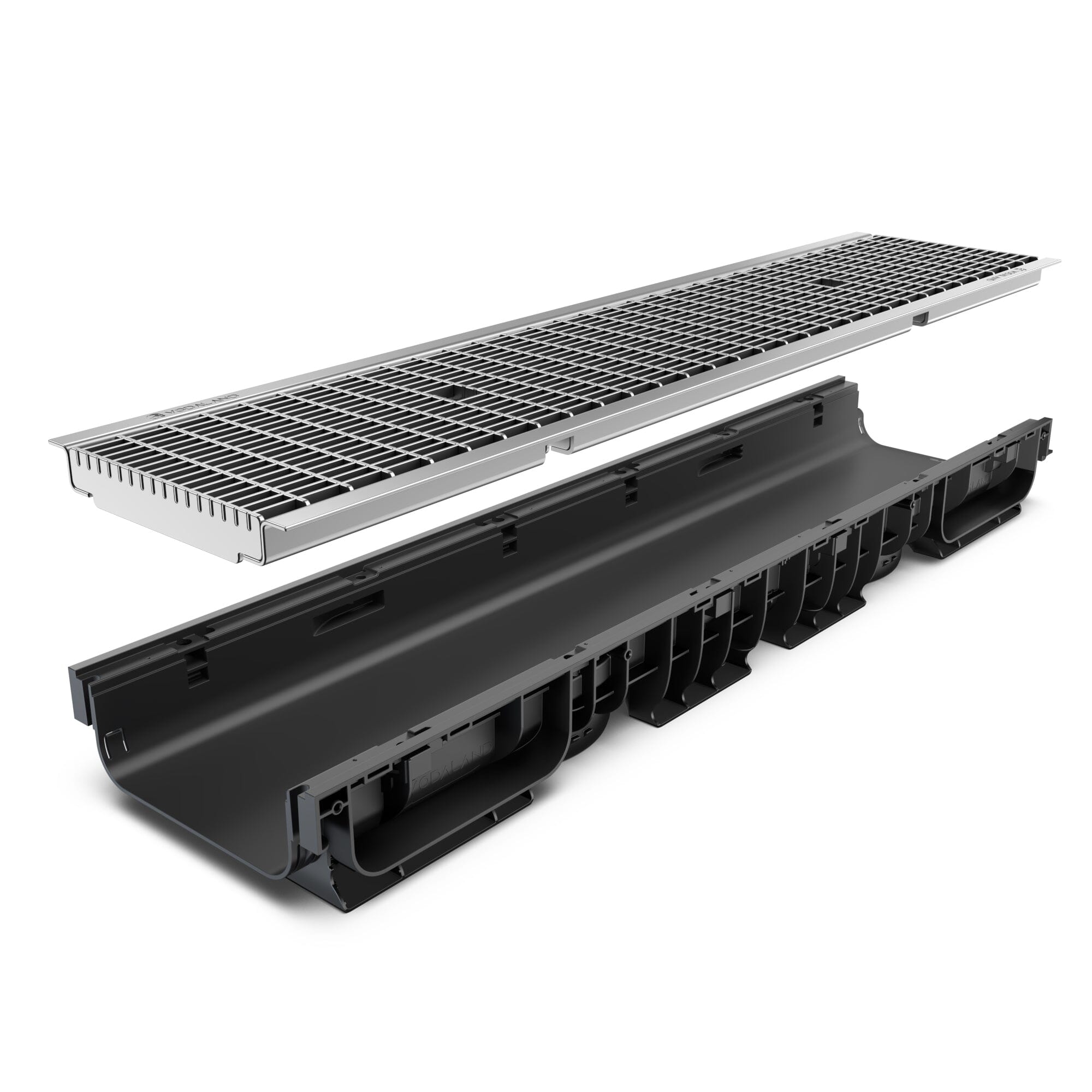

Base trench drain

What is the length of each trench drain?

All Vodaland trench drains are 1-meter (3.28ft) lengths. Trench drains can be connected together for longer runs, and units can be cut to match specific sizing requirements.

What is the dimension referred to in the title of each product?

The dimension shown in the title represents the internal width of the channel, and the same applies to the depth sizes shown for each channel. External dimensions vary for each type of channel, and customers can view external dimensions through the spec drawings provided on each product page.

How do I connect the trench drains together?

We design all of our trench drain channels to be connectable with each other via male-to-female connections. Depending on model, your trench drain may either “click” together, or simply fit together for connection. It is very important that all connections are silicone sealed.

How do I connect piping?

For piping, Vodaland designs our channels with outlets options on the bottom, sides, and ends. These outlets can be attached to 4” Schedule 40 PVC with an adapter we sell separately. If other piping is to be used, we recommend connecting them to the outlets via rubber couplings which are sold externally.

Do these need to be encased in concrete?

Vodaland recommends that all our trench drains be encased in concrete for best reliability. Certain scenarios may not allow for the use of concrete, and in those cases customers may change the recommended installation method at their own discretion.

What is the max/min temperatures that the channels can handle?

Our plastic trench drains are suitable for temperatures between -40 to +45 degrees Celsius, our polymer concrete and fiber concrete can handle -40 to +80. Our installation method accounts for seasonal temperature changes through the use of expansion joints.

Where can I find pre-sloped channels?

Vodaland has just released their new pre-slope polypropylene trench drain system which will allow for 1% pre-slope up to 8m in length. We as well offer our special-order concrete channel drains in 0.5% and 1% pre slope. If you require a pre-slope trench drain floor plan, contact a Vodaland representative for assistance.
