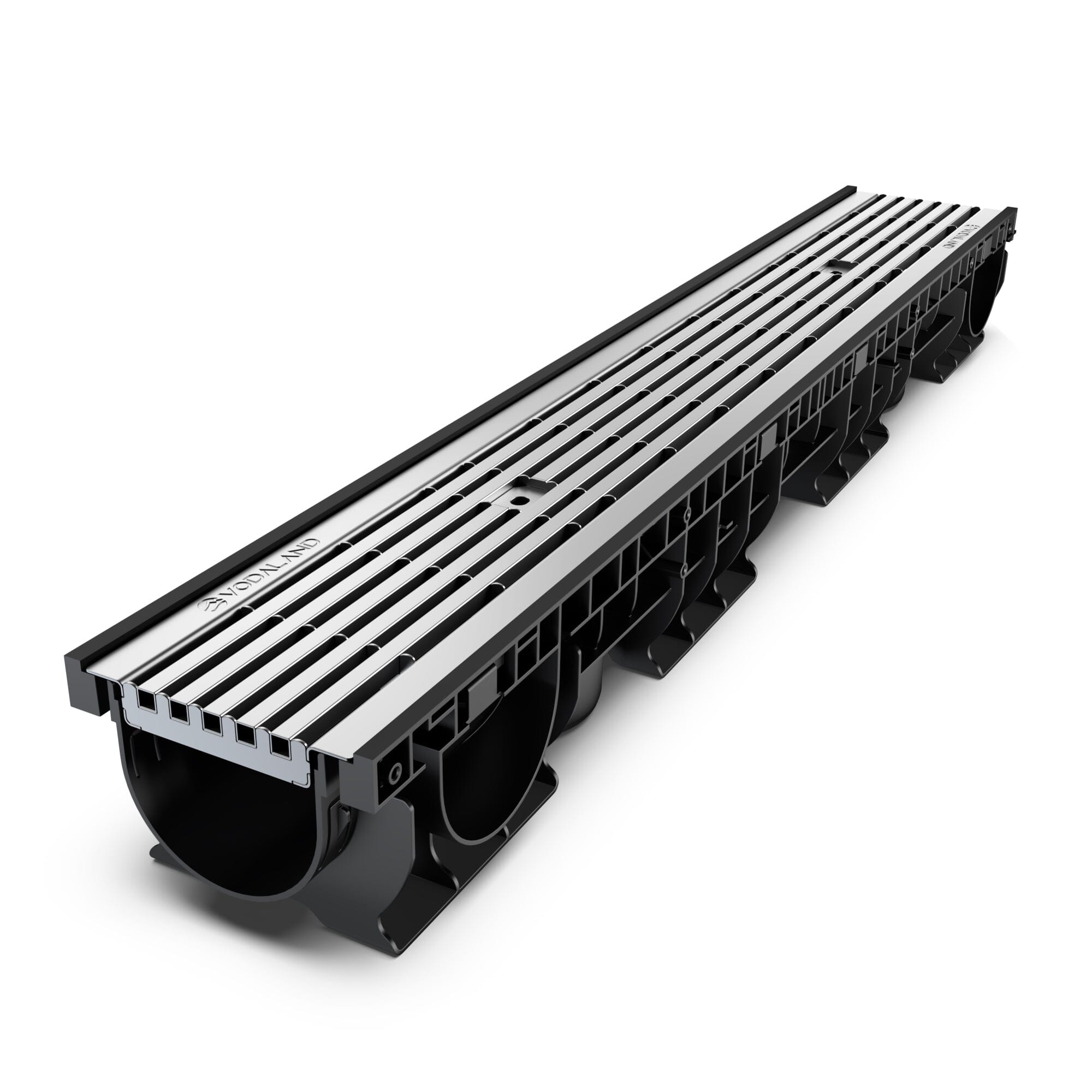

Name: 4" Plastic trench drain (BASE 100P), stainless grate Heel Proof, A Class
Brand: Vodaland Canada
Price: 312.00 CAD

Specification and Downloads

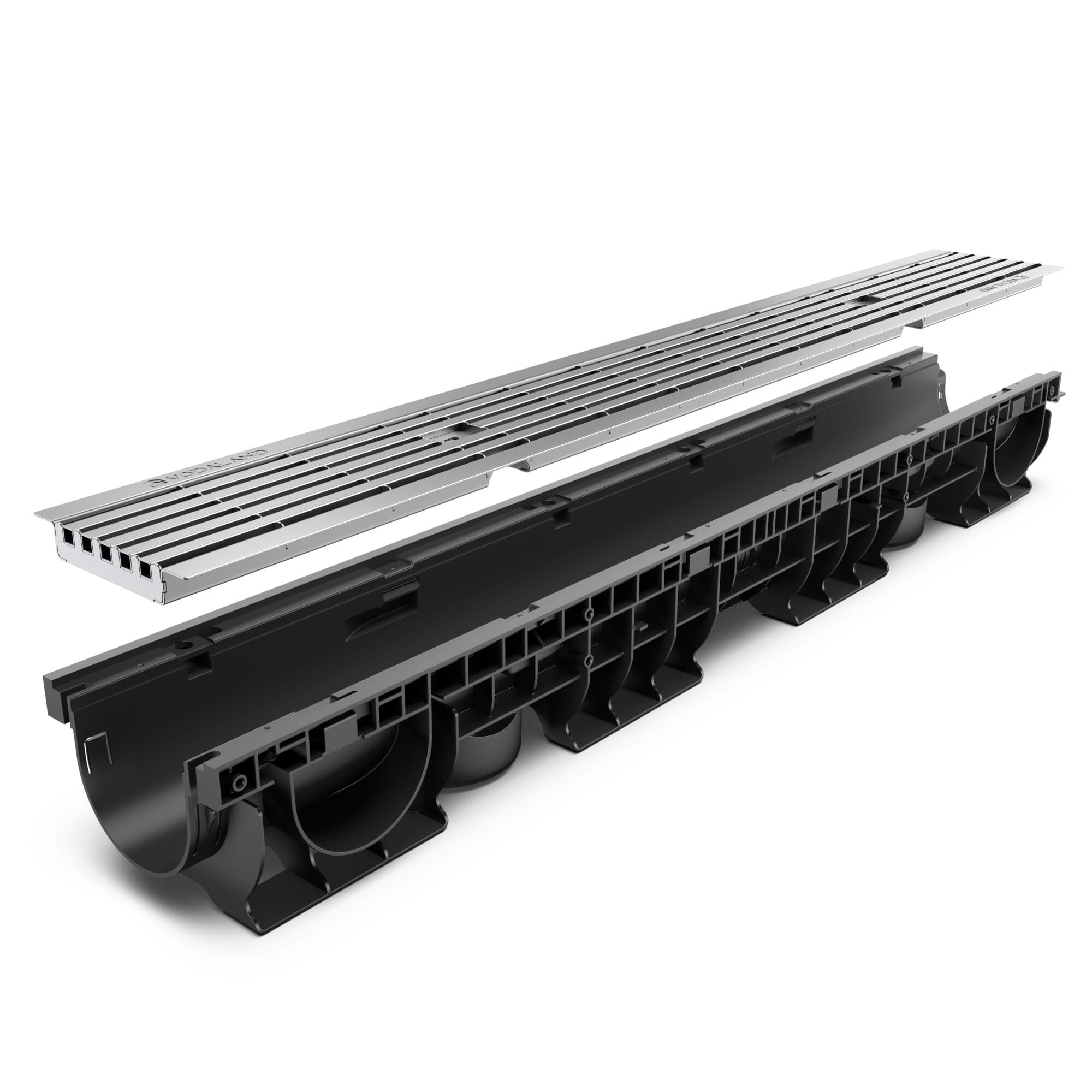

Purchase include stainless steel grate, channels

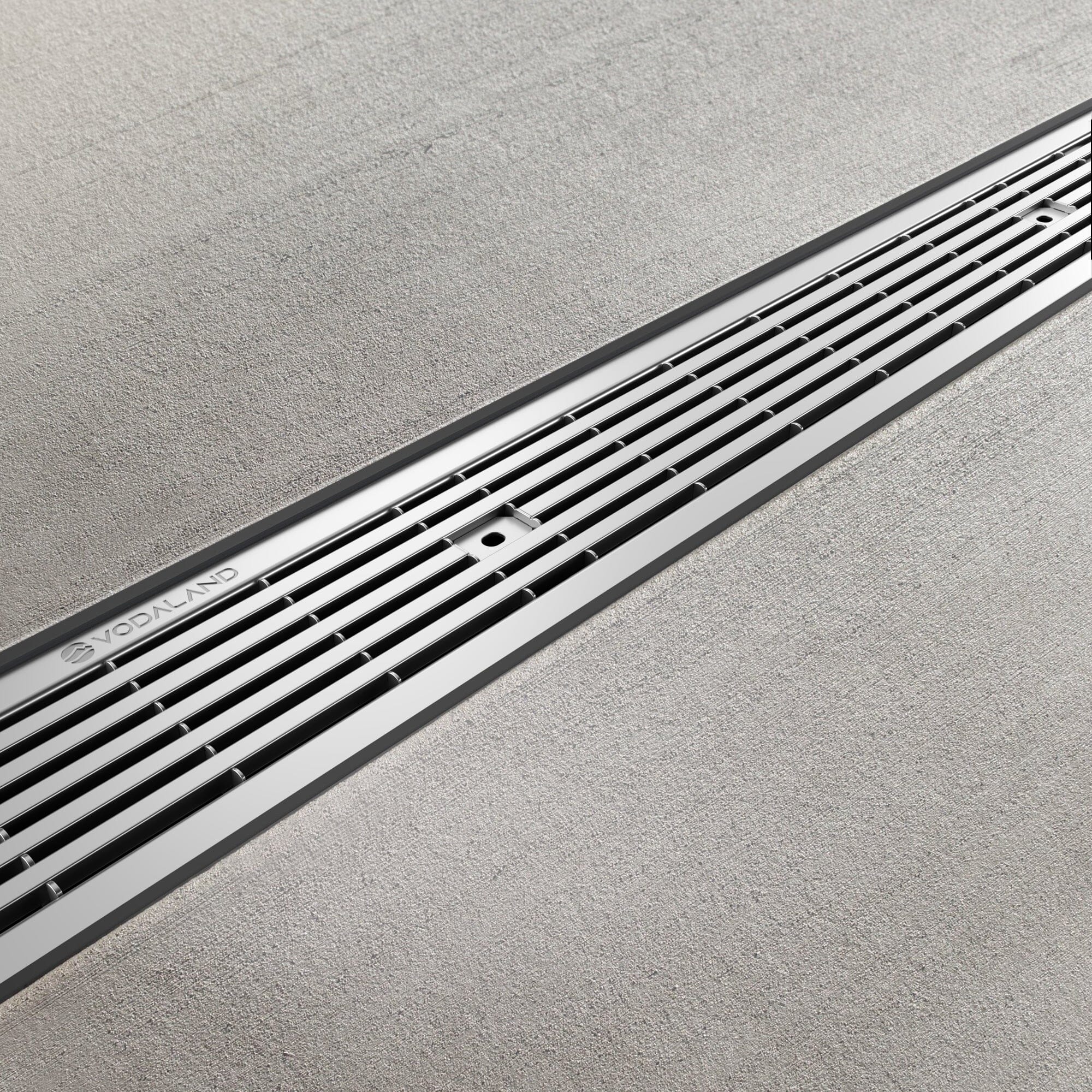

4" internal width stainless steel grate with heelproof design
Includes integrated bolt openings and all required fastening bolts
PVC or corrugated pipe connections available on the bottom and from end caps
Channels come in metre lengths, and connect end-to-end to meet a desired length.
Each channel has a 90-degree connection option available (no adapters)
Pedestrian load rated
Recommended to purchase 2 mounting brackets and 4 rebar supports per trench drain (sold separately)

Specification sheet

Neutral channel drawings pdf

Sloped channel drawings pdf

Neutral channel drawings CAD

Sloped channel drawings CAD

Grate PDF

Grate CAD

Installation Brochure

Installation specifications

Product Description

Designed for versatile, long-distance surface water management, Vodaland’s 4” plastic trench drain (BASE 100P) features a 4” internal width (6” external) and comes in standard 3.28ft (1-metre) channel sections. To suit your specific site layout, you can select between a 1% pre-slope design or a non-sloped system. Pre-sloped units are supplied in multi-channel bundles to match your total run length (up to 13 meters max), while non-sloped units are sold individually and interlock seamlessly to build any required length. Each channel includes integrated bolt openings and comes complete with all necessary grates and fastening bolts, ensuring a secure, chatter-free fit that stays locked in place under everyday traffic.

In addition, pre-slope and no-slope channels can be combined to extend pre-slope systems. This trench drain uses an A-class stainless steel grate. The A load class is designed to withstand pedestrian traffic.

Each channel features a 90-degree connection cut-out option on each side to allow for a corner 90-degree turn without the need for additional parts.

Every 1m length purchased comes with 1 plastic channel and 1 grate. Closed and outlet end caps are sold separately.

Suitable for use in:

Patios
Pools
Recreation centres
Decorative walkways
ADA compliant areas
Heel proof compliant applications

PARAMETERS
Article ................ BASE100P-SSGMHPB
Material ............. PPE Plastic / Stainless Steel
Dimensions ....... 39.4"L x 5.8"W
Load Class ....... A - Pedestrian Loads

CHANNEL OUTLETS

Bottom outlet: Every channel features a 4” bottom outlet for connection with piping. This outlet comes closed and must be cut out for use.

Outlet sizing: Our outlets are sized to fit European sized piping. To connect with North American sized piping, you will require either one of Vodaland’s plastic pipe adapters (sold separately), or a rubber coupling (sold elsewhere).

IF YOU REQUIRE A SYSTEM THAT IS MORE THAN 13 METERS IN LENGTH, OR NEED A COMBINATION OF PRE-SLOPE/NO-SLOPE CHANNELS, PLEASE CALL A VODALAND REPRESENTATIVE.
