Specification and Downloads
- Perfect for decks, rooftops, or any application with limited depth available.
- Composed of high-grade stainless steel
- Perforated stainless steel ADA/heelproof grates
- Comes with just channels and grates, end caps sold separately.
- Chemical, acid, and corrosion resistant
- Shallow depth of 3" for projects with limited room
- Pedestrian loads only
- Outlet is 2" in diameter (coupling likely required for connection)
Product Description

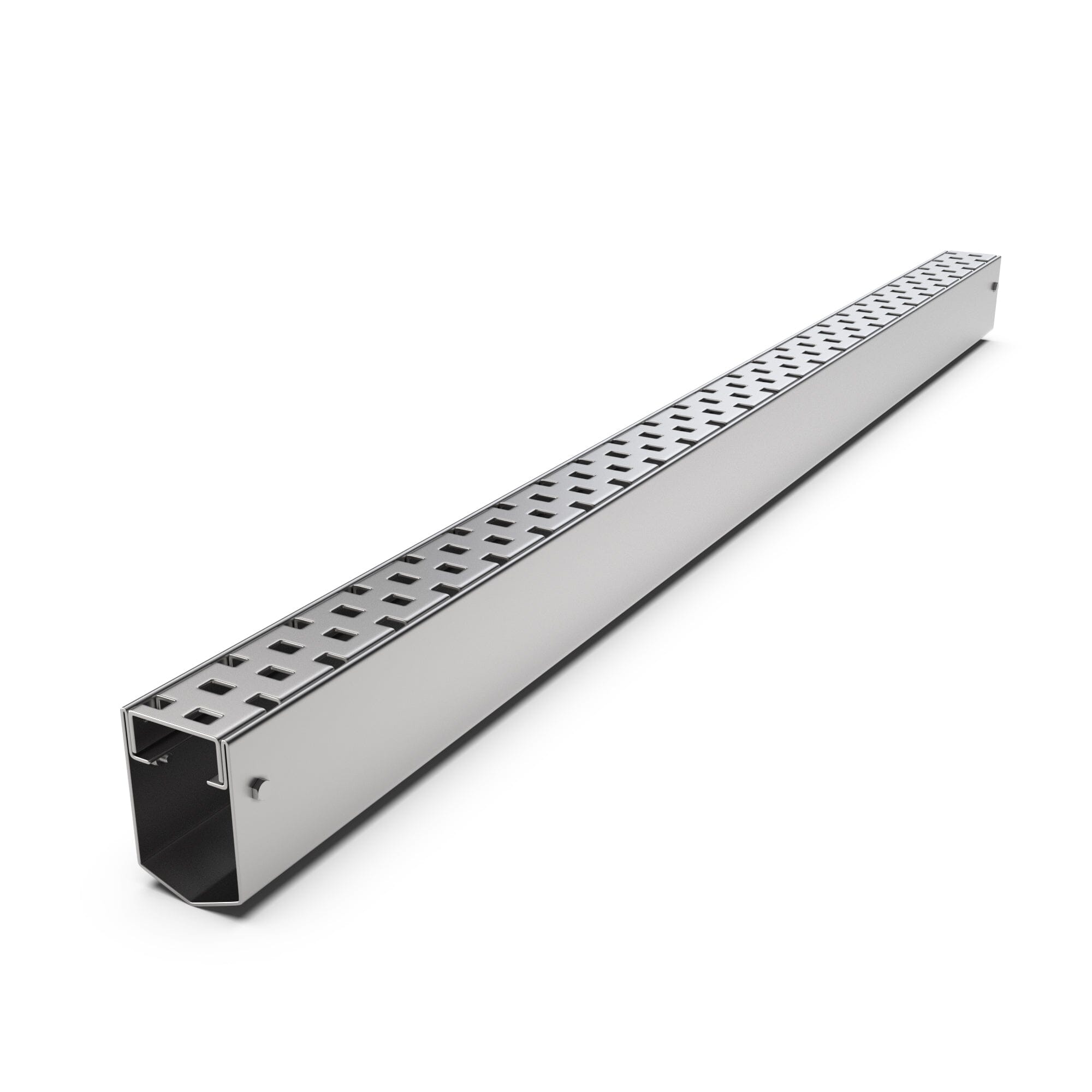

Vodaland’s Stainless Deck drain channel is a compact deck drain for applications with limited space but the need to collect pooling water. The drain is made of 100% Stainless steel with either a perforated grate design to provide a luxurious look for high-end projects. Each unit is 1 (3.28) meter in length, with a width of 2” and a depth of 3".

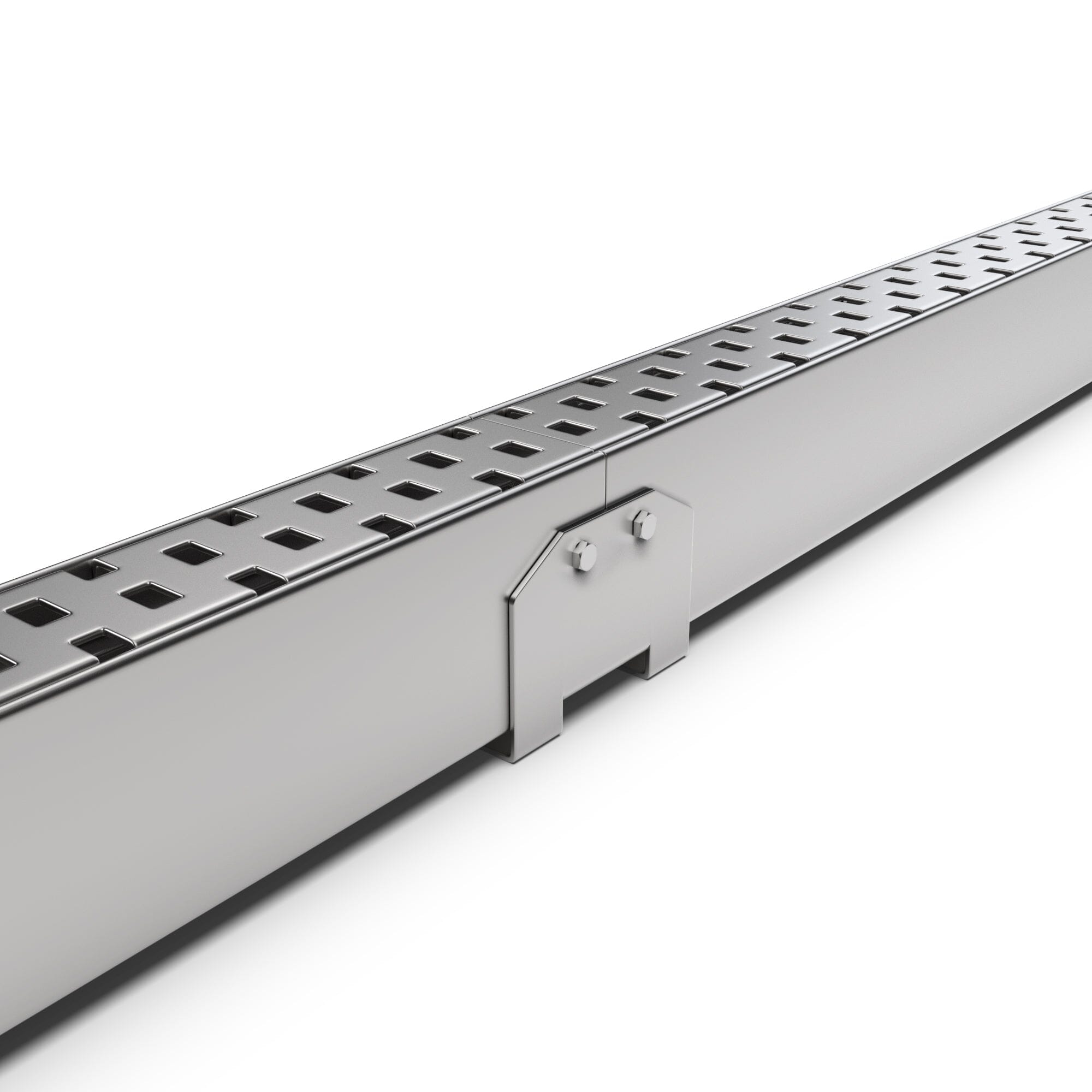

Channels are joined through bolted connectors sold separately. It is recommended to use silicone within these joints for a leak-proof connection.

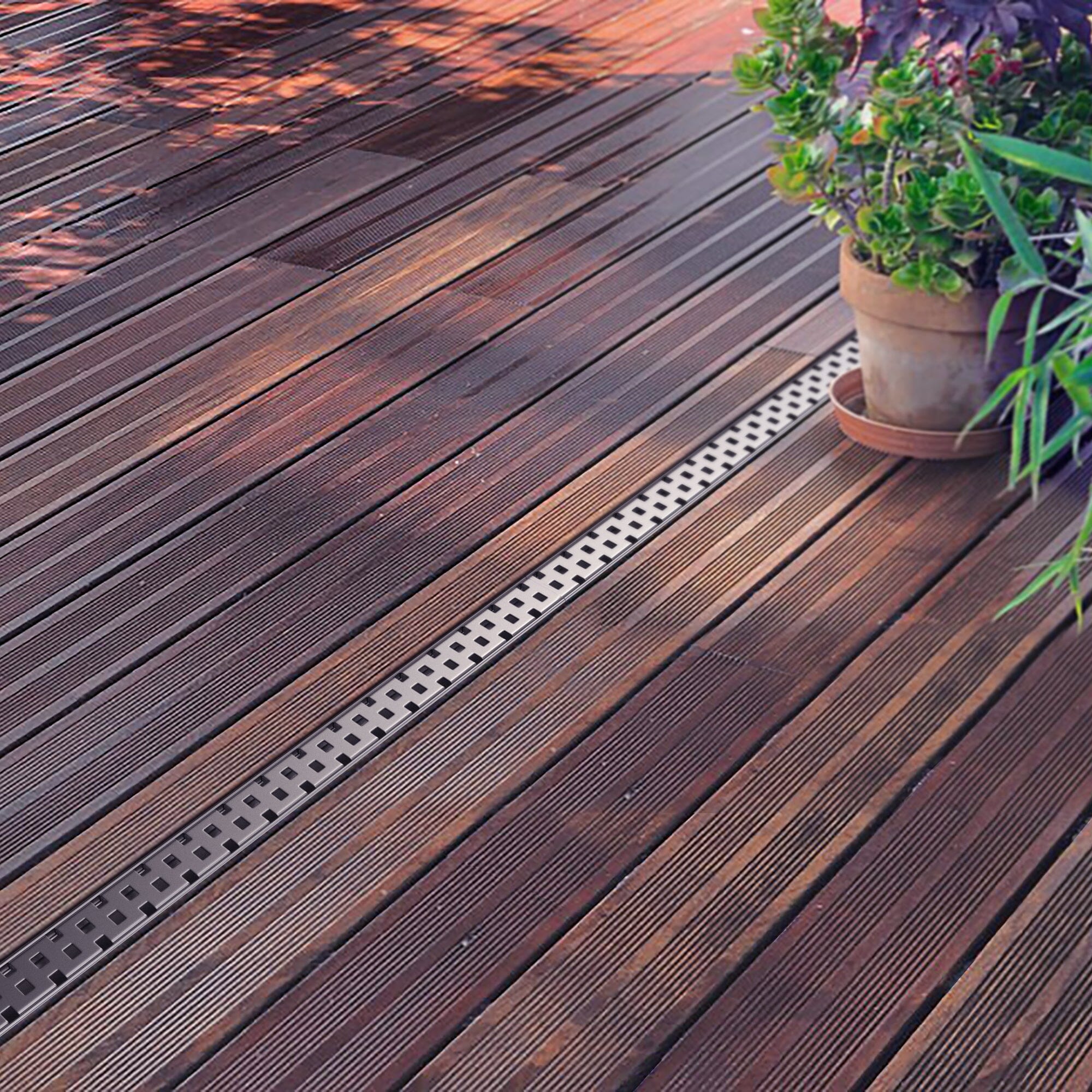

This system is great for decks, rooftops, terraces, or any application with limited space available.
PARAMETERS
Material ............. Stainless Steel
Width ................. 2" external
Depth ................. 3” external
Load Class ....... A - Pedestrian loads only
INCLUDED IN PACKAGE

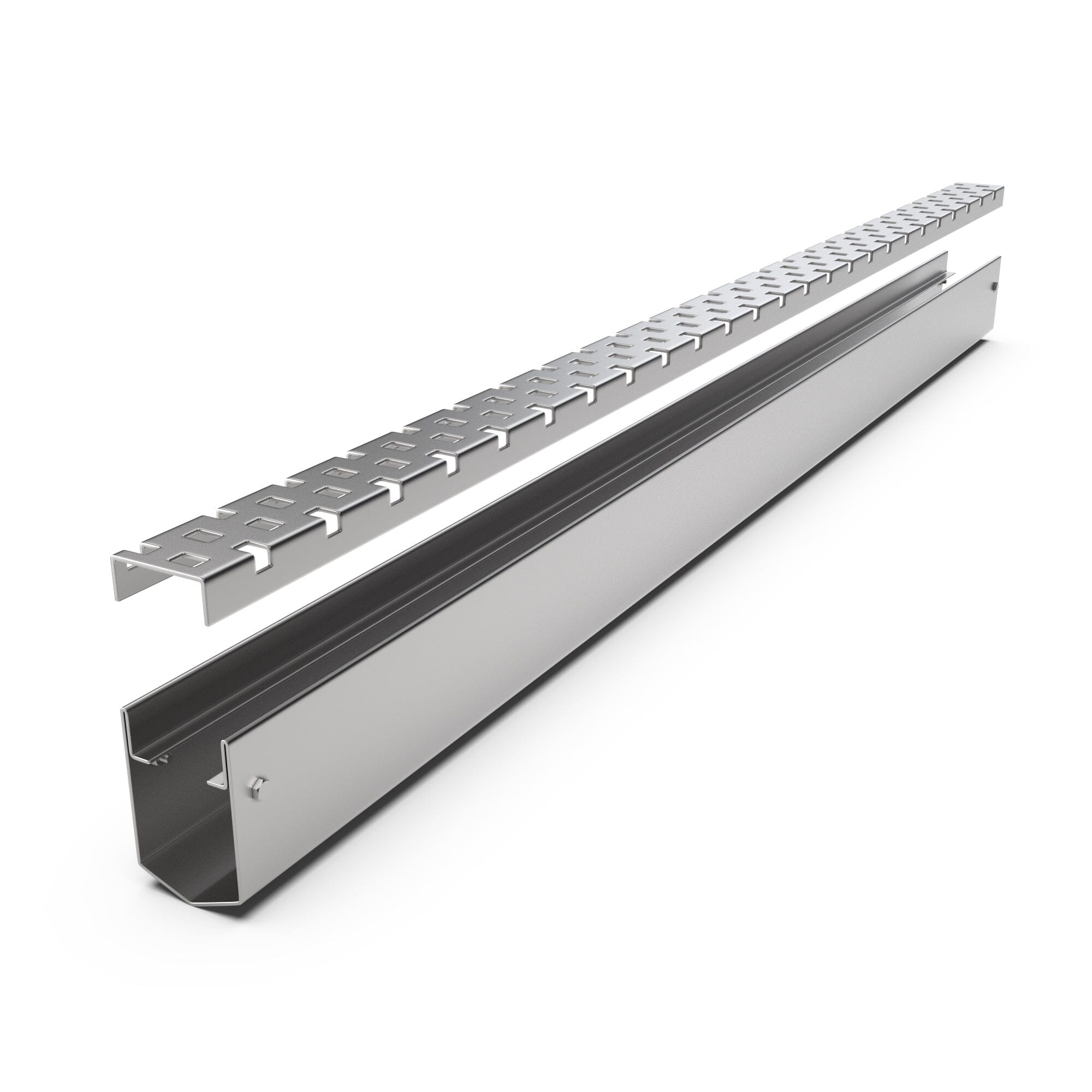

Stainless deck drain channel
Perforated design stainless steel grate
Installation Videos
Products that work with this
Stainless Deck Drain 90-degree Channel
Stainless Deck Drain Channel w/ bottom centre outlet
Stainless Deck Drain Channel w/ bottom end outlet
Stainless Deck Drain T-Connection Channel
Stainless Deck Drain Basin Channel Connector
Stainless Deck Drain Channel Connector
Stainless Deck Drain End Cap
Stainless Deck Drain Basin with Vertical Outlet
