Pro series drive drainage systems
Vodaland's commercial-grade product series, providing customers with cost-effective options for projects that require high quality materials. These trench drains are capable of handling heavier loads, and use premium ductile cast iron grates. Each unit is a meter length, and mutiple units connect together to match the length you require. Channels are available in plastic, polymer concrete, and fiber concrete.
What is the length of each trench drain?
All Vodaland trench drains are 1-meter (3.28ft) lengths. Trench drains can be connected together for longer runs, and units can be cut to match specific sizing requirements.
What is the dimension referred to in the title of each product?
The dimension shown in the title represents the internal width of the channel, and the same applies to the depth sizes shown for each channel. External dimensions vary for each type of channel, and customers can view external dimensions through the spec drawings provided on each product page.
How do I connect the trench drains together?
We design all of our trench drain channels to be connectable with each other via male-to-female connections. Depending on model, your trench drain may either “click” together, or simply fit together for connection. It is very important that all connections are silicone sealed.
How do I connect piping?
For piping, Vodaland designs our channels with outlets options on the bottom, sides, and ends. These outlets can be attached to 4” Schedule 40 PVC with an adapter we sell separately. If other piping is to be used, we recommend connecting them to the outlets via rubber couplings which are sold externally.
Do these need to be encased in concrete?
Vodaland recommends that all our trench drains be encased in concrete for best reliability. Certain scenarios may not allow for the use of concrete, and in those cases customers may change the recommended installation method at their own discretion.
What is the max/min temperatures that the channels can handle?
Our plastic trench drains are suitable for temperatures between -40 to +45 degrees Celsius, our polymer concrete and fiber concrete can handle -50 to +80. Our installation method accounts for seasonal temperature changes through the use of expansion joints.
Do your trench drain channels have slope?
The plastic channels only come without slope. For most small-to-medium scale projects, slope isn’t fully necessary. For those who require a slope, you can create a cascade system of multiple channel depths to create an artificial slope for your run. The fiber concrete and polymer concrete are offered in no slope, 0.5% slope, and 1% slope depending on which size of channel. Contact a Vodaland representative if you need further assistance with this matter.
Available load classes for our Pro trench drains:
Load Class D - Highway road traffic and standard commercial equipment
Load Class E - Heavy-duty road traffic and heavy-duty commercial equipment
For more info on load classes click on the link:
https://vodaland.ca/pages/load-classes
Pro trench drains differ from Base plastic trench drains in the features that allow for higher load classes.

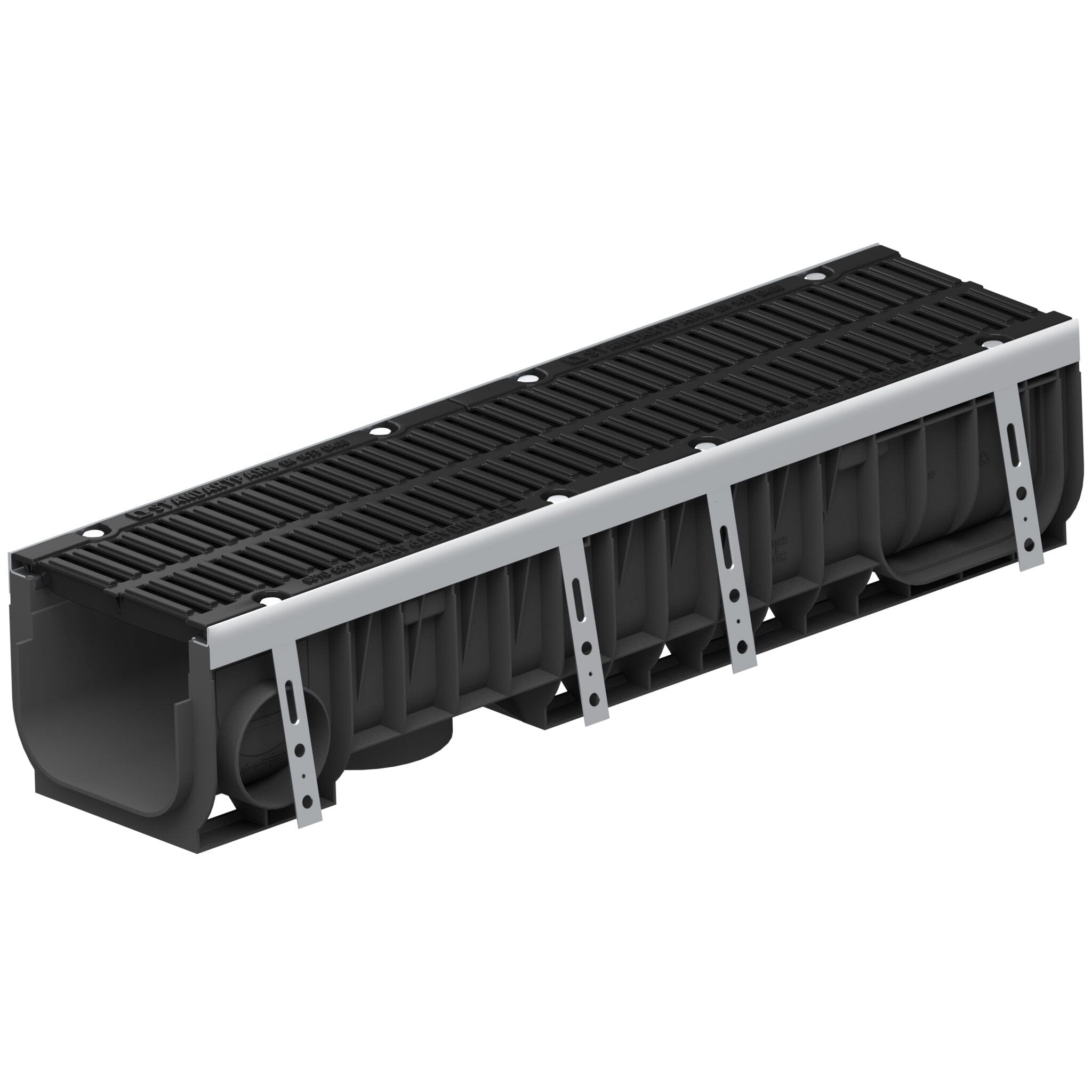

Pro trench drains feature outside steel reinforcement frames for additional support, and the grates are a ductile cast iron with heavy duty fasteners to prevent the grates from shifting while handling loads.
Our Pro (commercial/industrial) trench drains feature different sizes and depths of plastic, polymer concrete, or fibre concrete channels with steel reinforced edges and bolted ductile cast iron grating. They can be easily connected with our Pro inline sand trap basins.
If you are dealing with heavy-duty loads, our industrial-strength trench drains are the best choice due to their unbeatable durability, strength, and cost-savings.
Some of our Pro channels are neutral (no slope), but if it requires a slope, we are offering cascade installation method which connects channels with different depth inline, creating an artificial slope. Contact us for help with a cascade installation.
4" Plastic trench drain (PRO 100P), D class
- Regular price
- from $240.00
- Regular price
-
- Sale price
- from $240.00
- Unit price
- /per
From $240.00
6" Plastic trench drain (PRO 150P), D-E Class
- Regular price
- from $315.00
- Regular price
-
- Sale price
- from $315.00
- Unit price
- /per
From $315.00
8" Plastic trench drain (PRO 200P), D Class
- Regular price
- From $420.00
- Regular price
-
- Sale price
- From $420.00
- Unit price
- /per
From $420.00
Call for more information or to place an order!
Our customer service squad and sales team are always here to help.
(905) 238-1771FAQ’s
Let's figure out how many channels you need.
Lets figure out the sq ft of your project.
Remember to round up for the sq ft packages. We recommend purchasing 10% overage of your square footage to ensure dimensions are matched.
Lets see how many geo grids you will need for your project.
Remember, sometimes its good to add another additional unit to your order if you are making cuts or trims in your installation!
