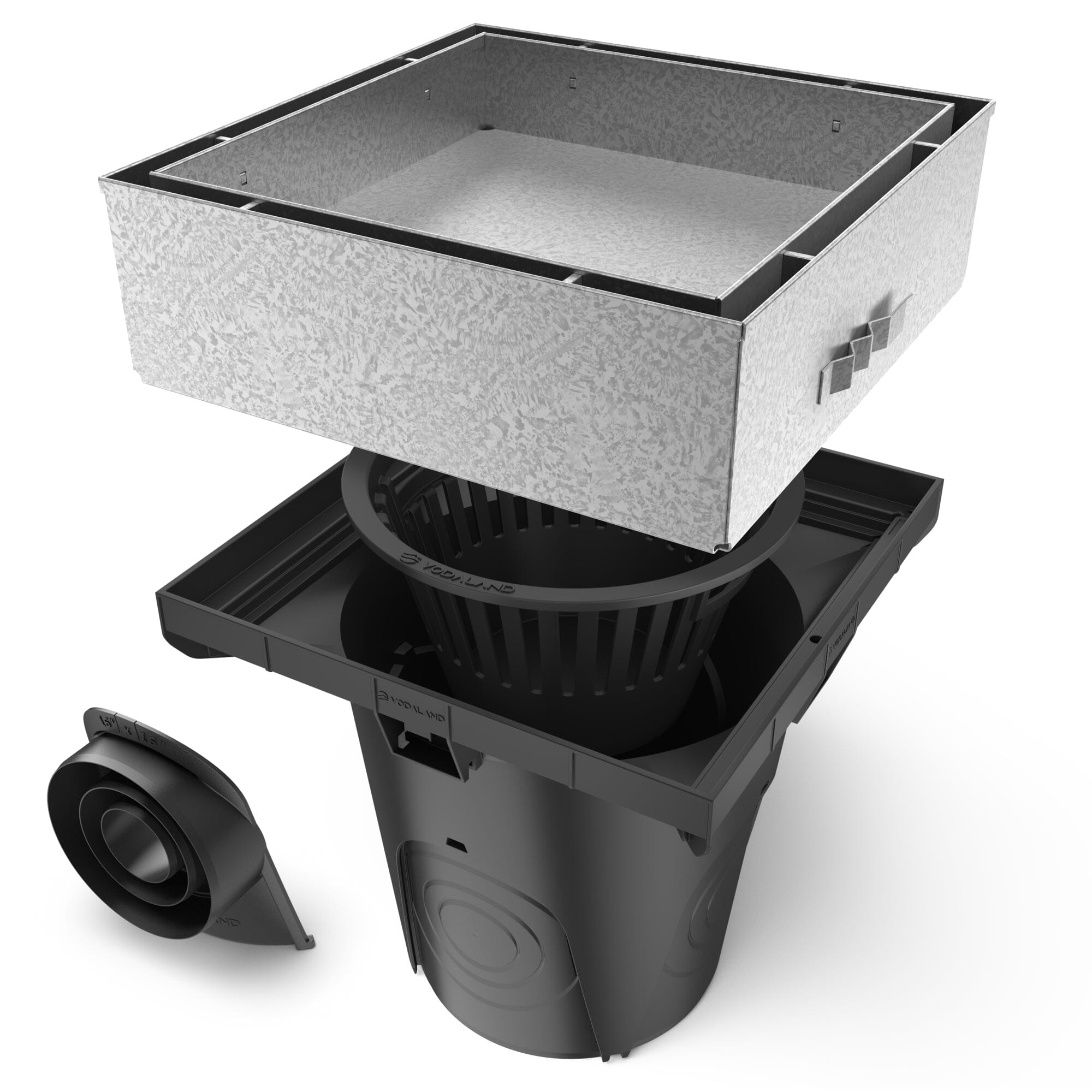

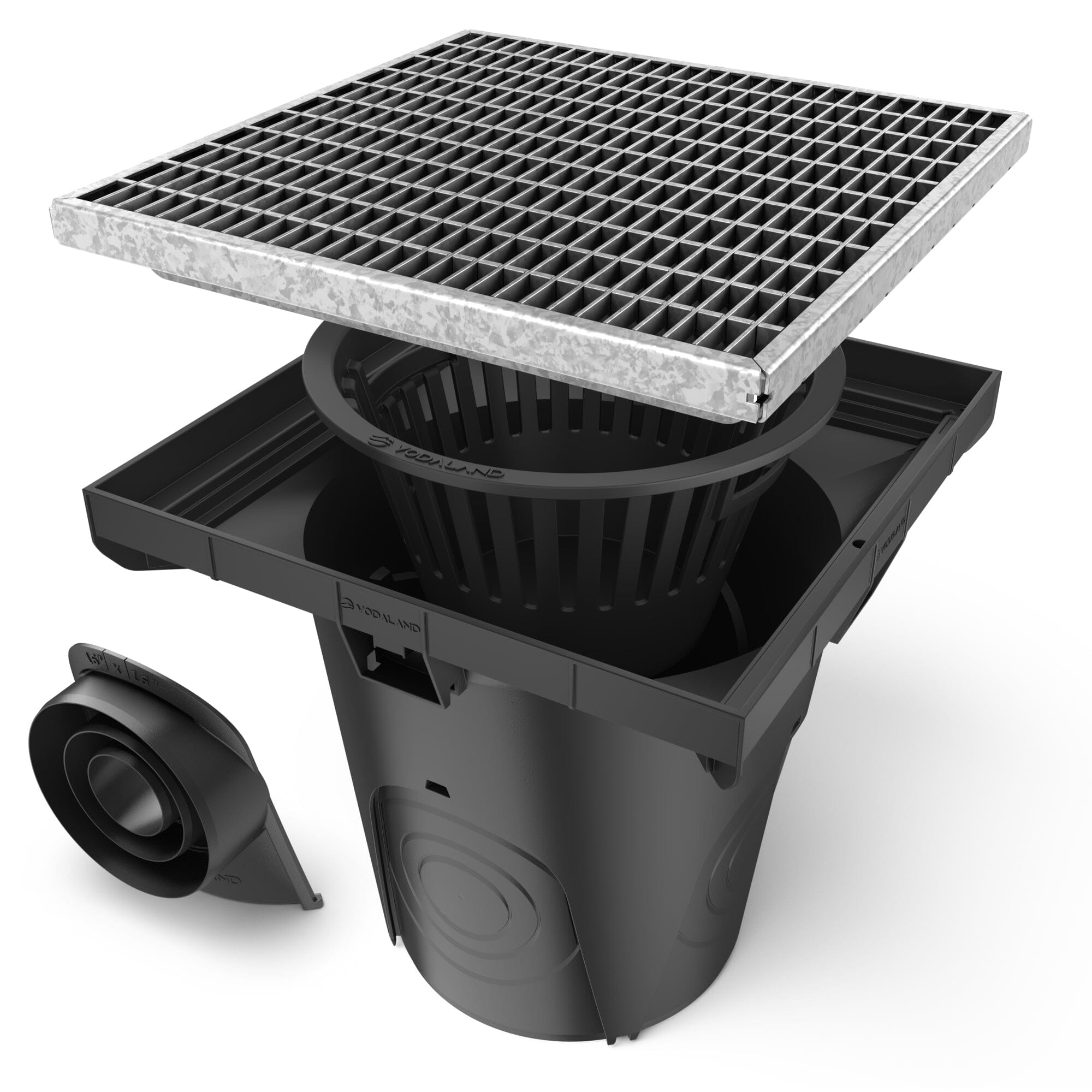

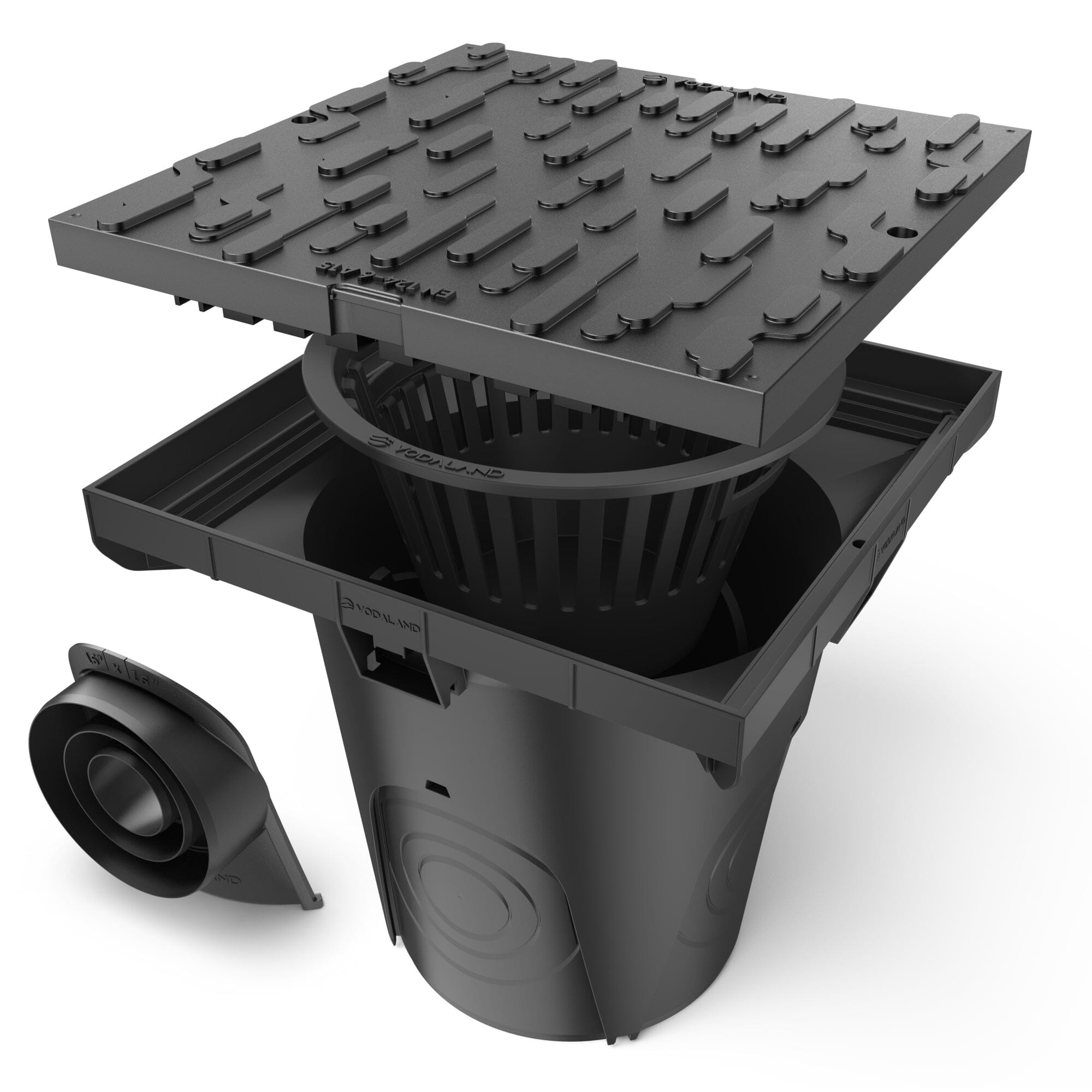

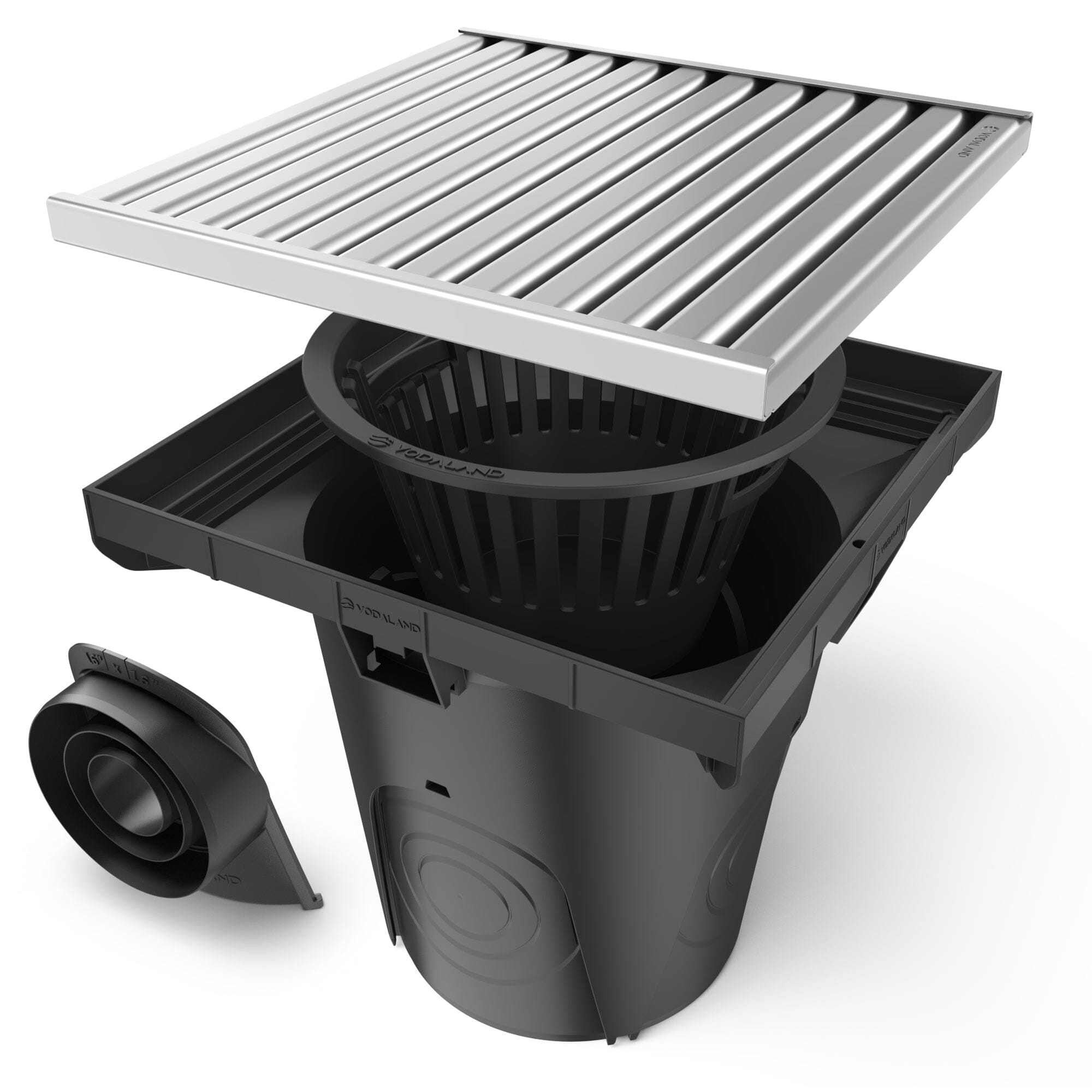

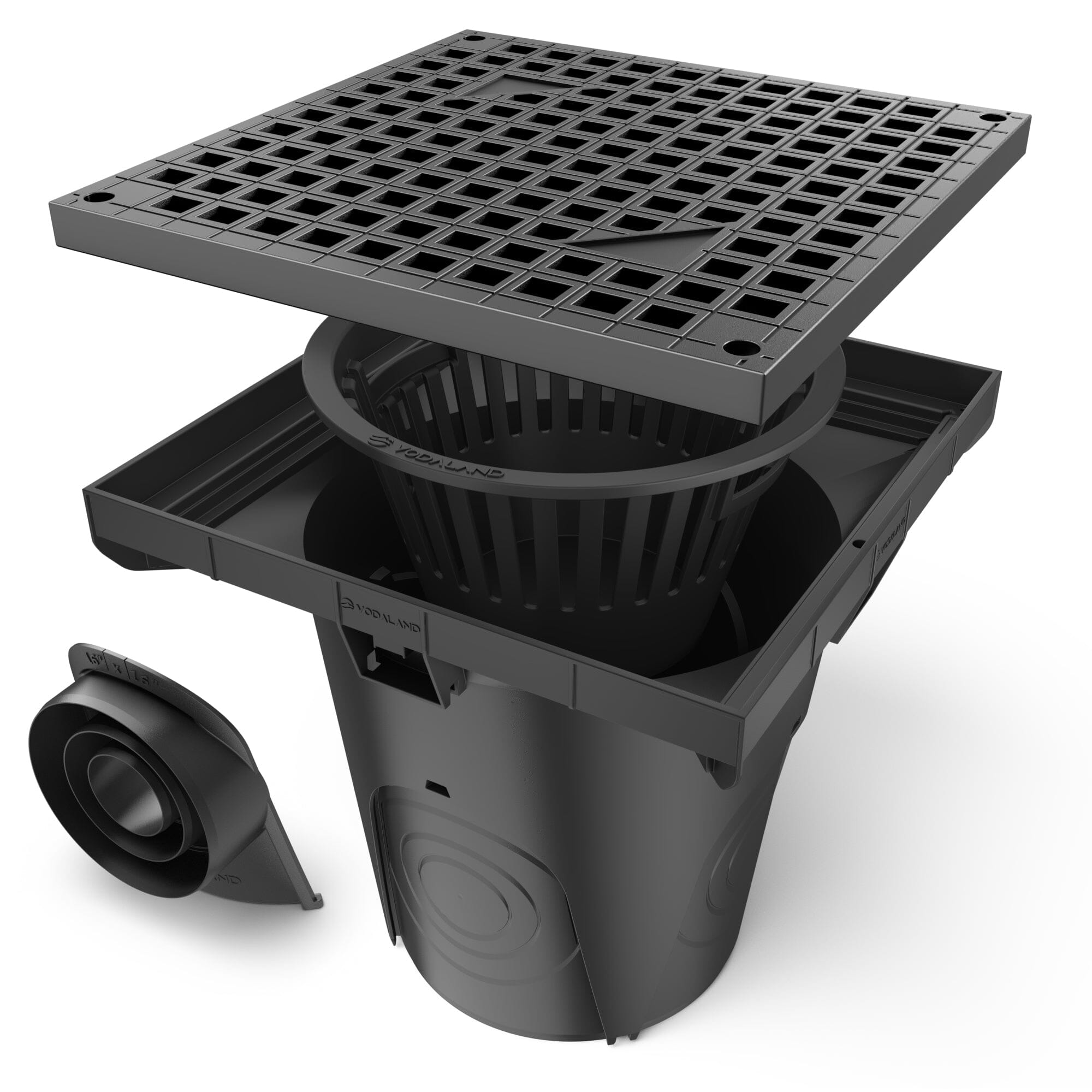

16 x 16 NEO catch basins
Optimize large-scale water diversion with the Vodaland 16x16 NEO Series Catch Basin, our high-capacity solution for demanding drainage environments. Designed to handle significant surface runoff, this professional-grade basin is the ideal choice for expansive driveways, commercial landscapes, or high-volume downspout collection points. The 16-inch footprint provides an increased collection area, while the 100% recyclable poly-construction ensures long-lasting durability against the elements. Equipped with universal adapters for 2-1/2", 4", and 6" piping, the NEO 16x16 offers unmatched installation flexibility. Whether paired with an ADA-compliant plastic grate or a traffic-rated ductile iron cover, this modular system prevents localized flooding and debris buildup, keeping your infrastructure secure and your property dry.
What are they made of
The 16x16 NEO catch basins are made from plastic, with grating options available in plastic, galvanized steel, stainless steel, and ductile iron. All accessories for the system are made from plastic.
What is the difference between a NEO basin and normal catch basins
The 16x16 NEO basin is the new design by Vodaland that focuses on easier installation, cost-effectiveness, and versatility in all applications. While it functions the same as a our normal catch basins, it does so at a cheaper price without compromising quality. The only feature lacking from the NEO basins compare to our normal basins are the ability to stack units using the stackable basin method. However, risers can be used to increase the depth of the unit within your surface.
What accessories are available for the NEO basins
Vodaland's 16" x 16" NEO basins are available with 4 different accessories:
- Debris basket: For filtering debris that is collected by the basin
- Partition: For acting similar to a P-trap in preventing fumes from re-entering through your piping.
- Mounting brackets: For suspending on rebar supports to make installation easier.
- Riser: For increasing the depth at which the basin sits within your surface
All accessories are sold separately but strongly recommended for all applications.
Available load classes for our 16x16 NEO Catch basins:
Load Class A - pedestrian foot traffic
Load Class B - Residential vehicle traffic (no parking) and yard equipment
Load Class C - Commercial vehicle traffic, residential vehicle parking, buses, and medium duty commercial equipment.
For more info on load classes click on the link:
https://vodaland.ca/pages/load-classes
We offer 4 different materials for grating:
| Grate material | Loads | Rust resistance |
|---|---|---|
| Plastic | Pedestrian | No rust |
| Galvanized Steel | Pedestrian/Light Vehicle | Zinc coating protection |
| Stainless Steel | Pedestrian/Light Vehicle | No rust |
| Cast Iron | Pedestrian/Light Vehicle/Heavy vehicle | May rust over the long-term |
